54 12 138 Removing and installing/replacing rain channel for glass slide/tilt sunroof
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks: Remove Complete Glass Slide/Tilt Sunroof (Frame) .

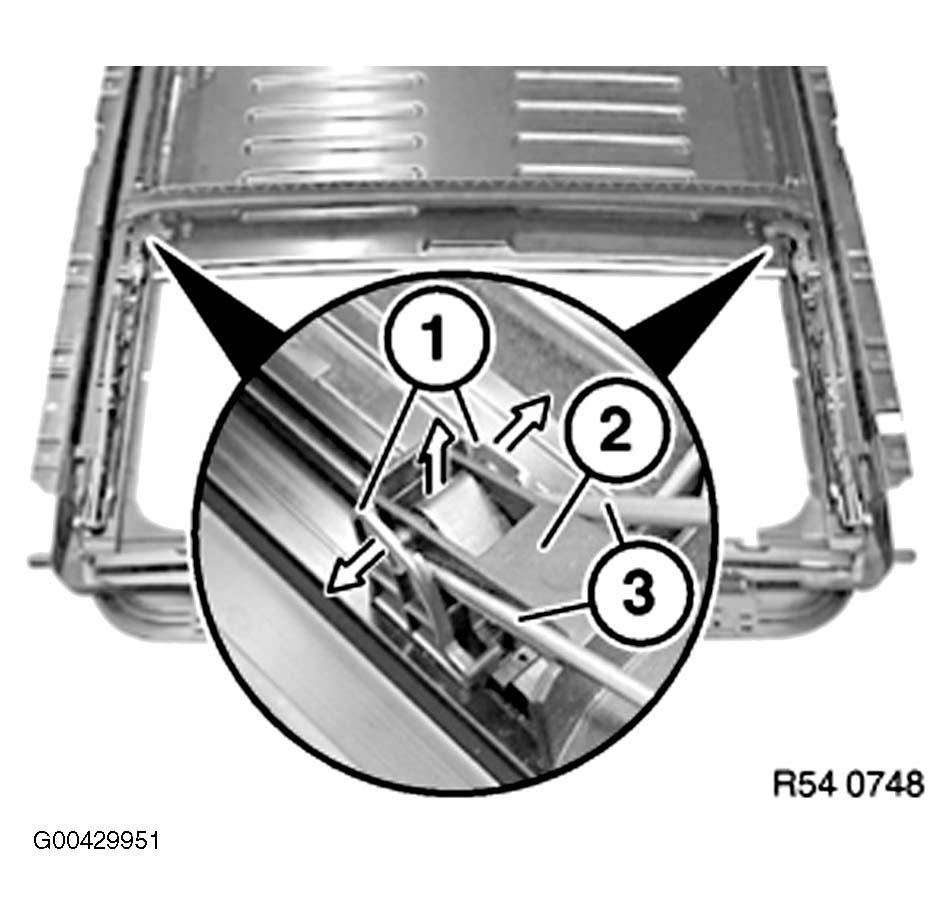

Carefully unlock holders (1) with screwdriver (3) on left/right and unclip setting lever (2) of rain channel towards top. Remove rain channel.
During installation, make sure setting lever (2) is correctly engaged in holders (1). Check function.
