54 12 136 Removing and installing/replacing headliner for glass slide/tilt sunroof lid

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If headliner is difficult to move, apply a light coat of Renax GL1 (manufactured by Fuchs) to guide duct.

Remove Glass Sunroof Lid .

Slowly pull headliner (floating) fully towards front.

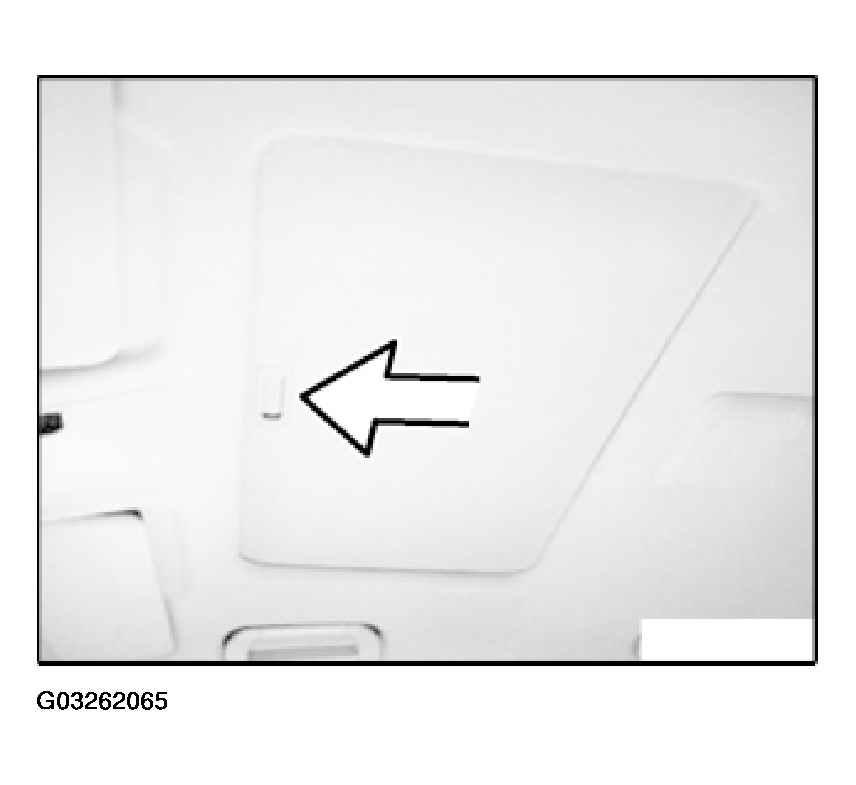

Fig 1: Pulling Headliner (Floating) Fully Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Slowly slide spring slider (2) towards rear.

NOTE: Make sure all parts are clean. If necessary, wear gloves.

Remove headliner (3) towards top.

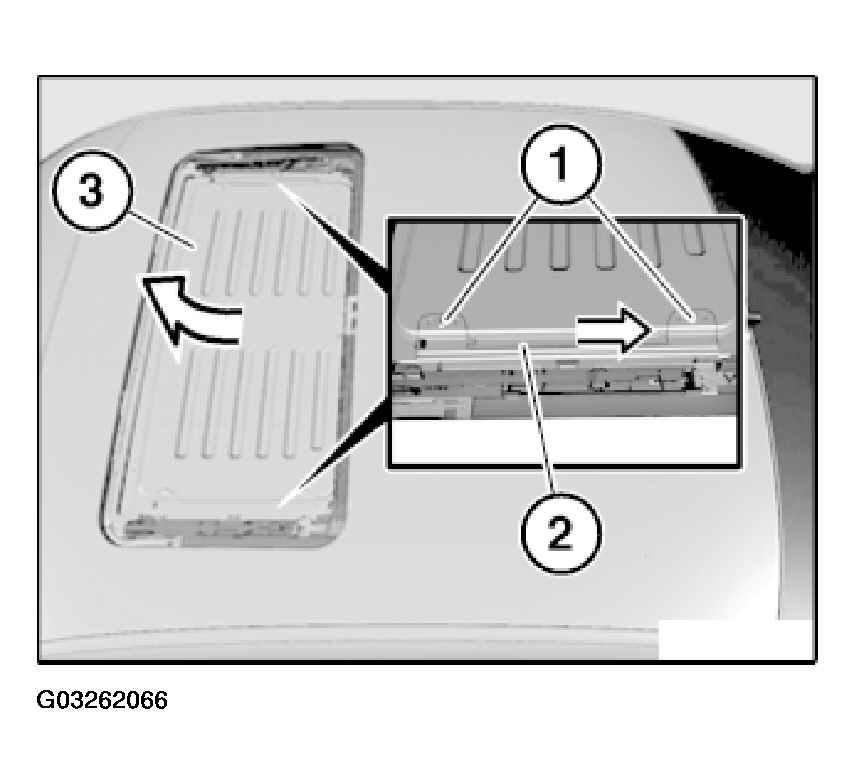

Fig 2: Removing Headliner

Courtesy of BMW OF NORTH AMERICA, INC.
