54 12 117 Replacing seal for glass slide/tilt sunroof lid
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Follow Repair Instructions For Bonded Seals On Slide/Tilt Sunroof
- Open glass lid completely

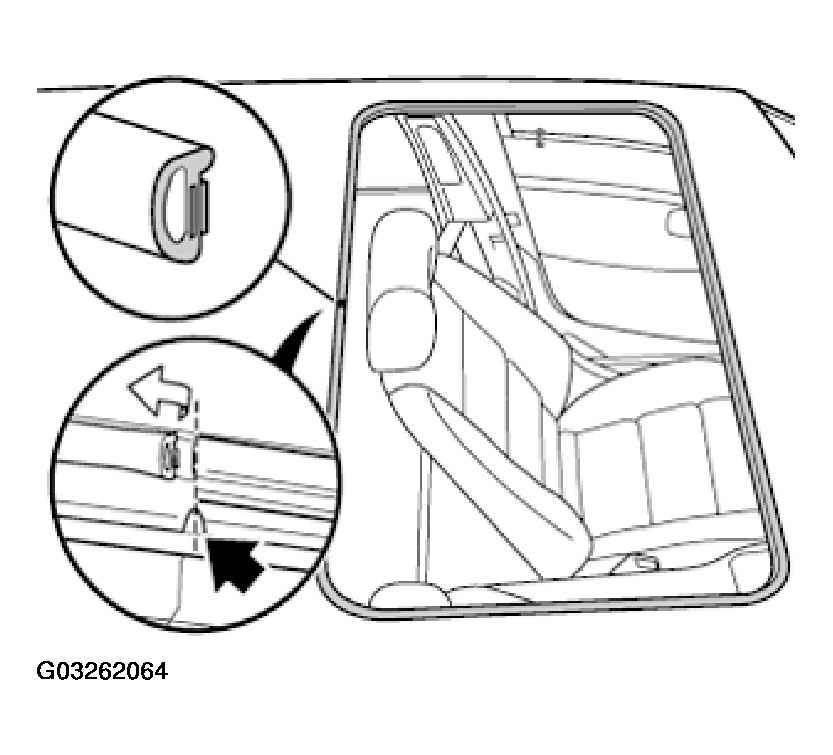

Begin removal at contact edge (rear center):
- Peel off rubber seal
- Clean bonded area
Installation:
Also begin at specified point of contact edge for installation:
- Stick on rubber seal in sections
- Establish seal joint
- Press on seal
