54 12 015 Replacing left or right gaiter for glass slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Move glass sunroof lid into "lift position".

Slide roofliner (floating) slowly towards rear until stop can be felt.

E65, E66: A = approx. 60 mm

E60, E61: A = 0 mm

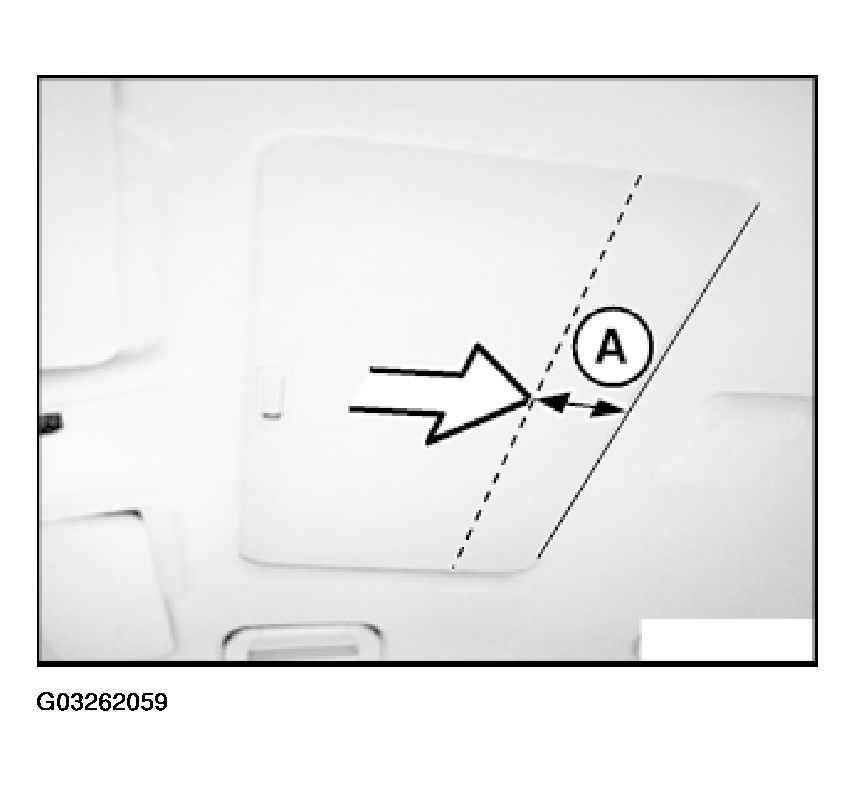

Fig 1: Moving Glass Sunroof Lid Into "Lift Position"
G03262059Courtesy of BMW OF NORTH AMERICA, INC.

Pull out gaiter (1) at rear starting from glass sunroof lid (2).

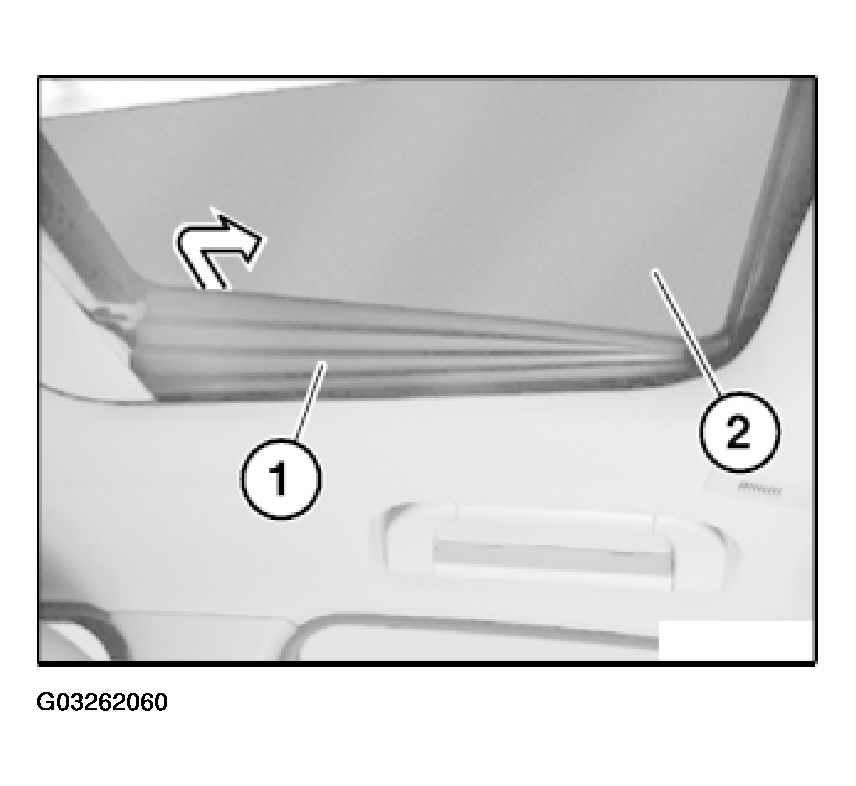

Fig 2: Pulling Out Gaiter At Rear Starting From Glass Sunroof Lid
G03262060Courtesy of BMW OF NORTH AMERICA, INC.

Remove gaiter (1) as follows:

  1. Unclip at front
  2. Slide forwards and remove

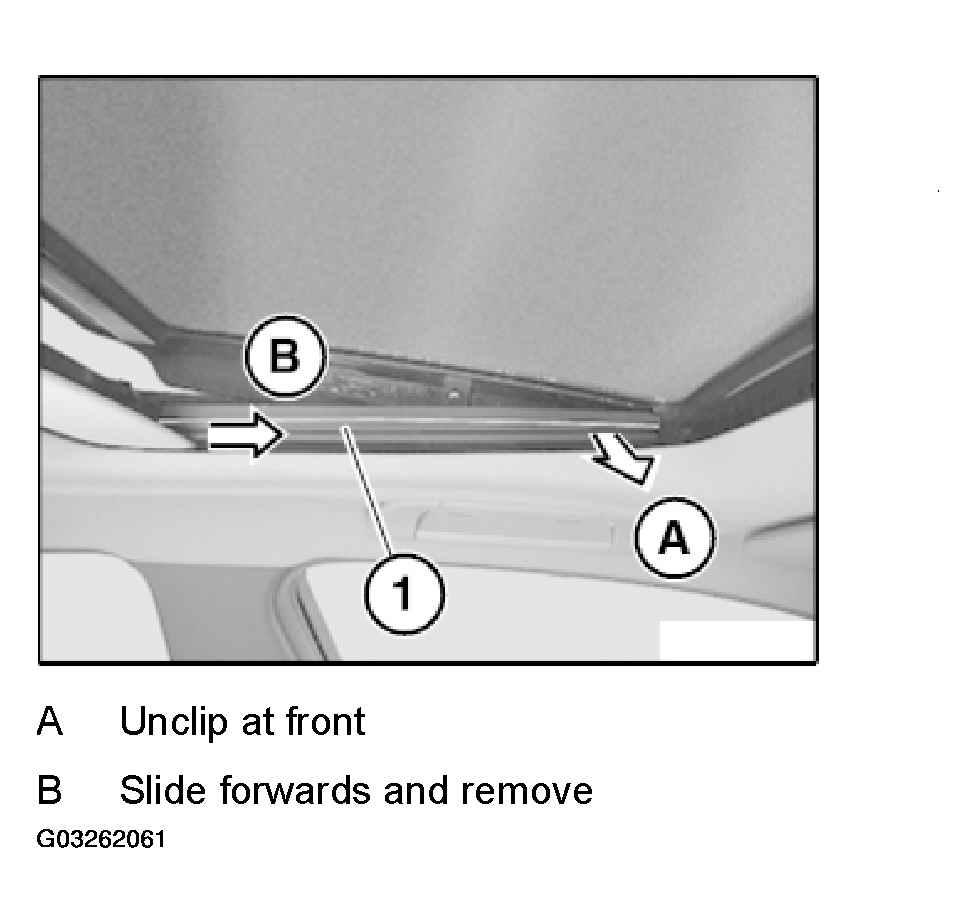

Fig 3: Removing Gaiter
G03262061Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainer (4) and guide pin (2) must not be damaged. Slide guide pin (2) into holder (1). Retainer (4) must engage in holder (3).

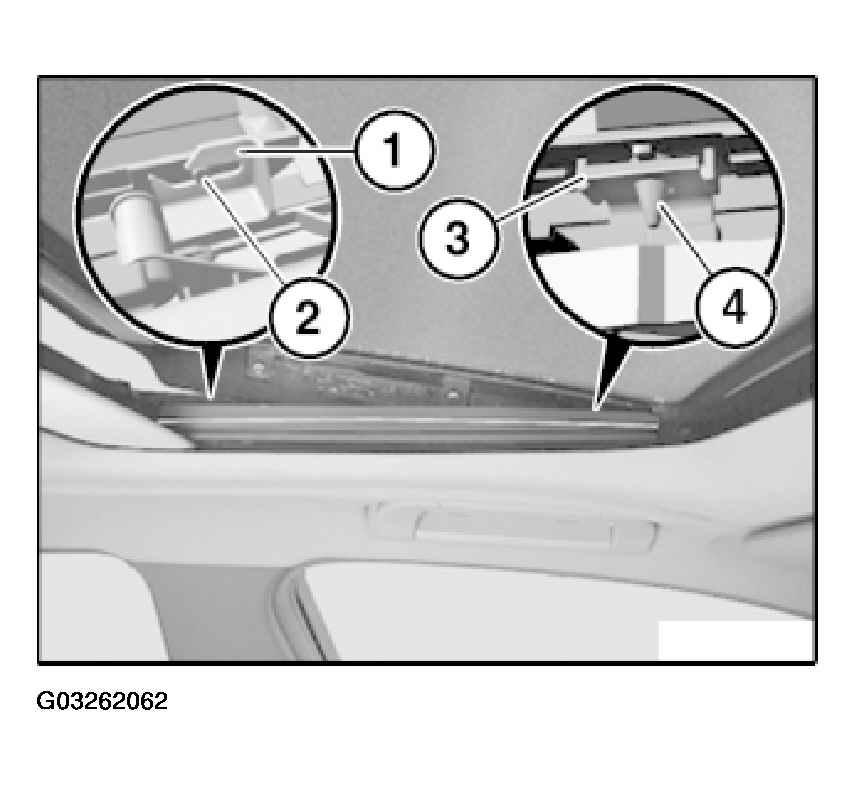

Fig 4: Sliding Guide Pin Into Holder
G03262062Courtesy of BMW OF NORTH AMERICA, INC.
