Removal & Installation

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove seat frame. See 52 24 005 Removing And Installing Or Replacing Rear Seat .

Detaching cover and padding:

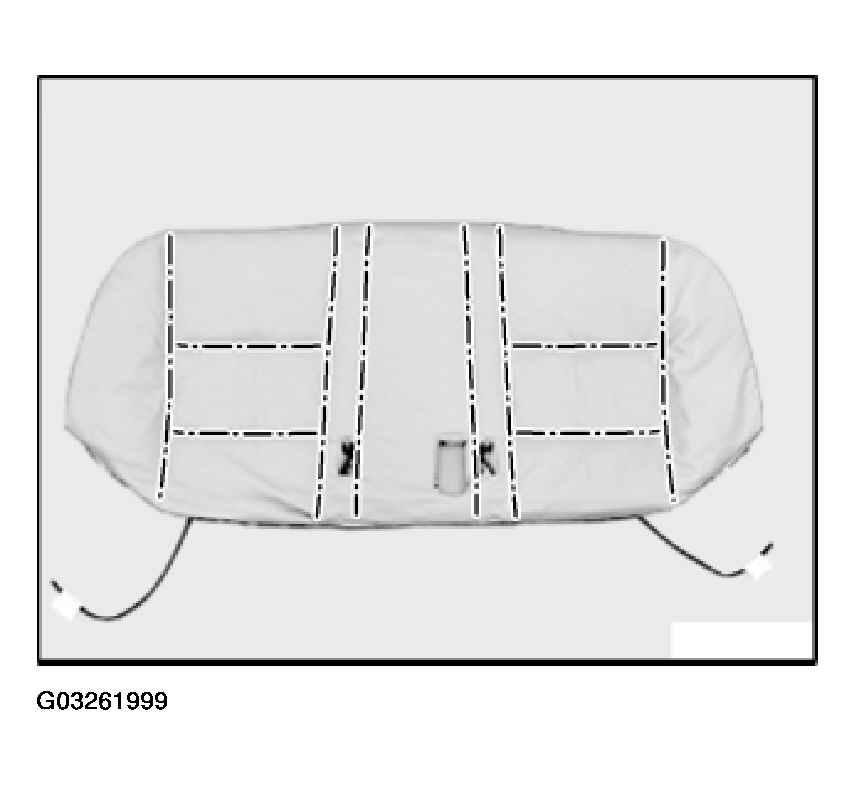

If necessary, mark seating of retainers
Release retainers in marked areas
Remove seat cover from padding
Remove all remaining retainers from seat cover and/or padding

Installation:

Feed cable through hole in padding
Insert new retainers with special tool 52 0 050. In so doing, enclose wire in padding and trim wire of cover

Fig 1: Inserting New Retainers With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

Pull all trim wires out of seat cover
If necessary, cut in take-up for trim wires of new cover
Push trim wires into new seat cover

Fig 2: Pushing Trim Wires Into New Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.
