52 24 390 Removing and installing or replacing left or right rear head restraint

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Move head restraint (1) upwards to maximum extent.

Press lock (2) and pull out head restraint.

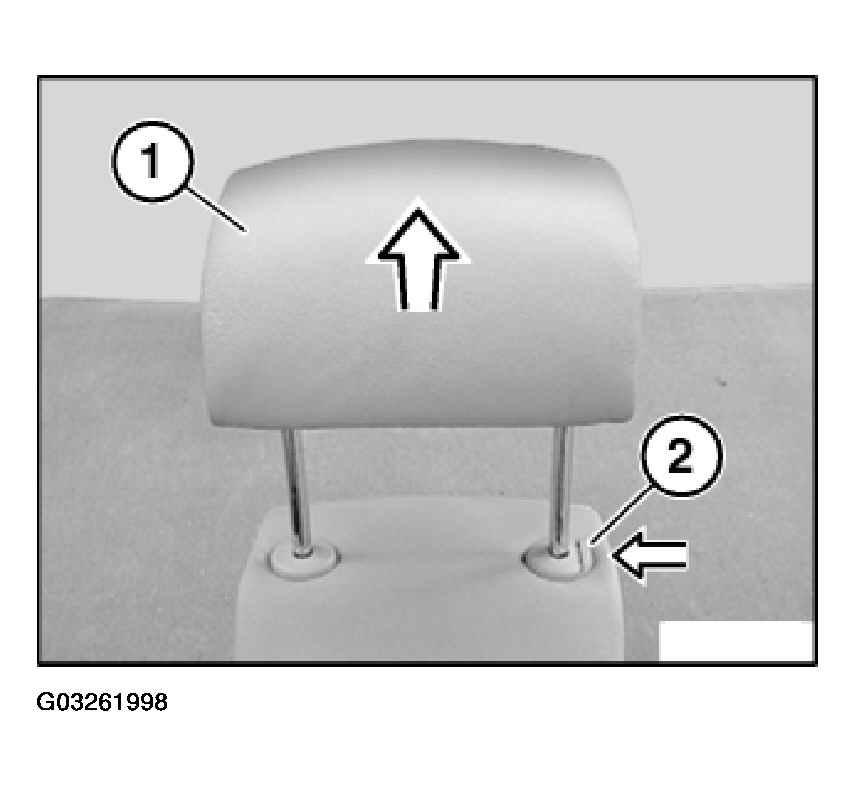

Fig 1: Pressing Lock And Pull Out Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.
