52 24 380 Removing and installing/replacing left or right rear head restraint mount
WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove padding for rear backrest. See 52 24 408 Replacing Backrest Cover (Basic) For Left Or Right Rear Seat .

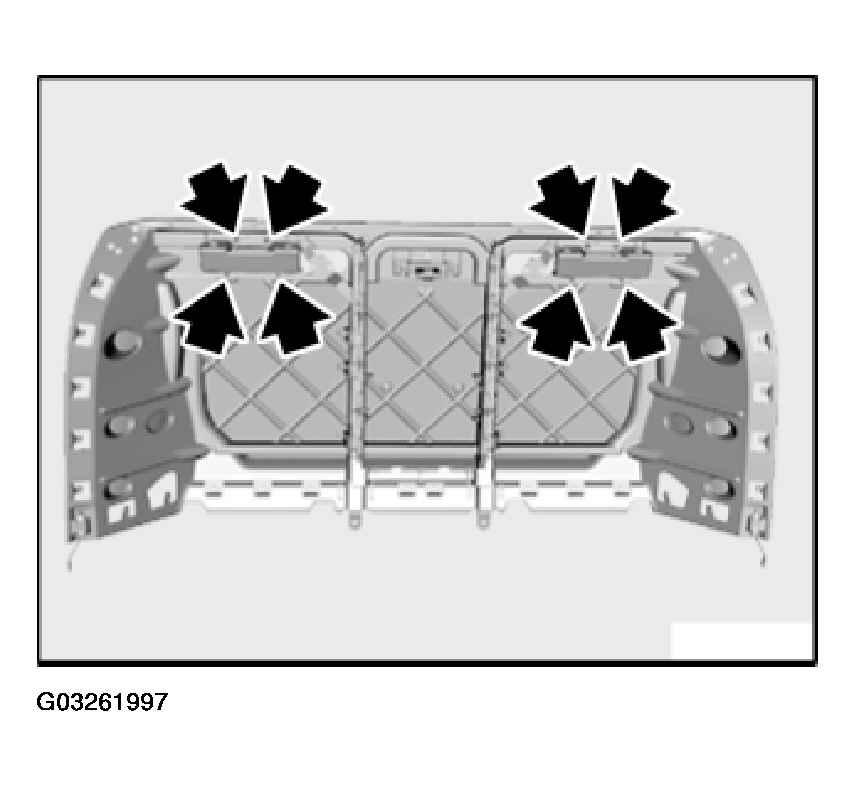

Release relevant screws, remove left or right head restraint mount.
Tightening torque, see 52 24 2AZ in SEATS - TIGHTENING TORQUES - 525I & 530I (M54) .
