52 16 095 Removing and installing/replacing thigh support holder on front left or right seat (sports/electric)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Move thigh support forwards fully

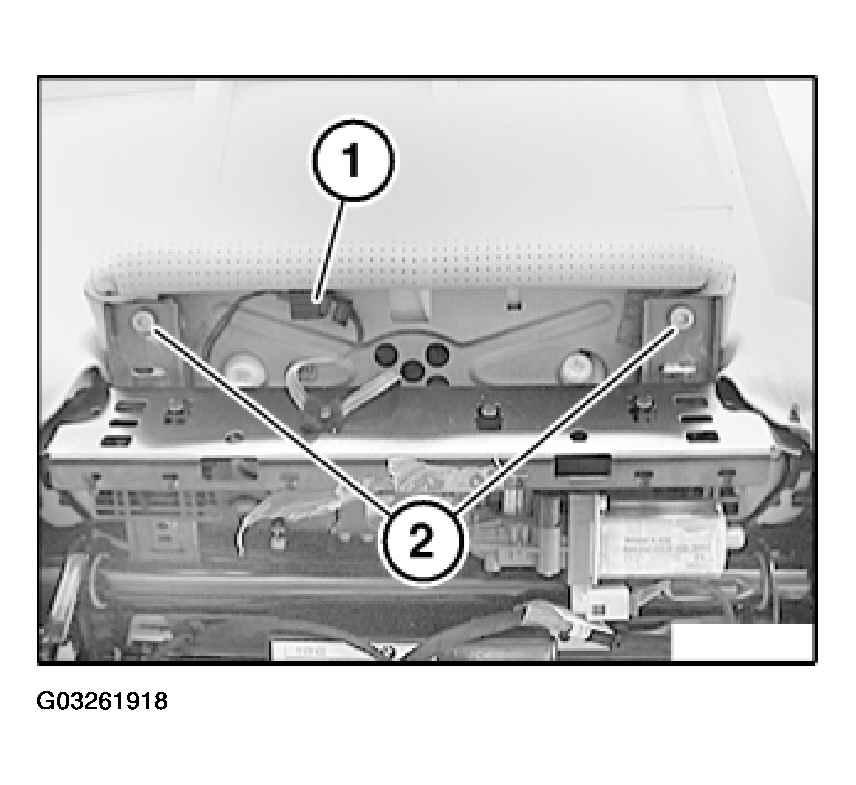

Unfasten plug connection (1) and disconnect.

Release screws (2).

Installation:

Insert screws (2) with Loctite.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

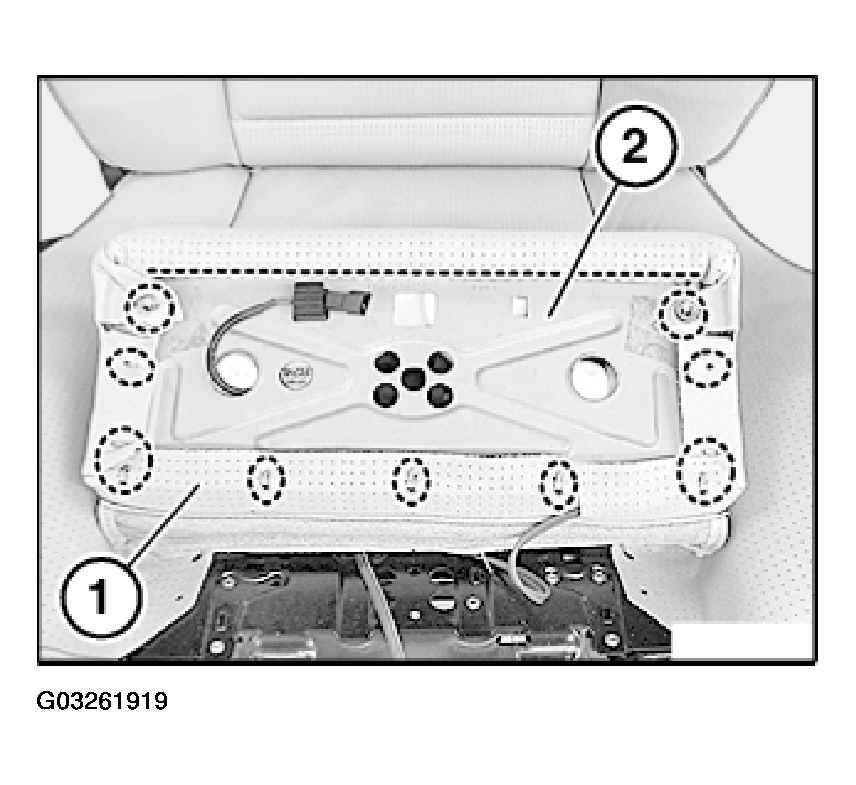

Detach seat cover (1) in marked area from carrier (2) for thigh support.

Feed plug out of carrier (2) for thigh support.

Remove carrier (2) for thigh support.

Fig 2: Removing Carrier For Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.
