52 13 040 Removing and installing/replacing outer cover on left or right front seat (normal/semi-electric)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Pull lever forward to remove:

If necessary, lever out lower locking point (1) from rear with a screwdriver.

Unscrew bolt (2).

If necessary, move seat fully forwards and upwards.

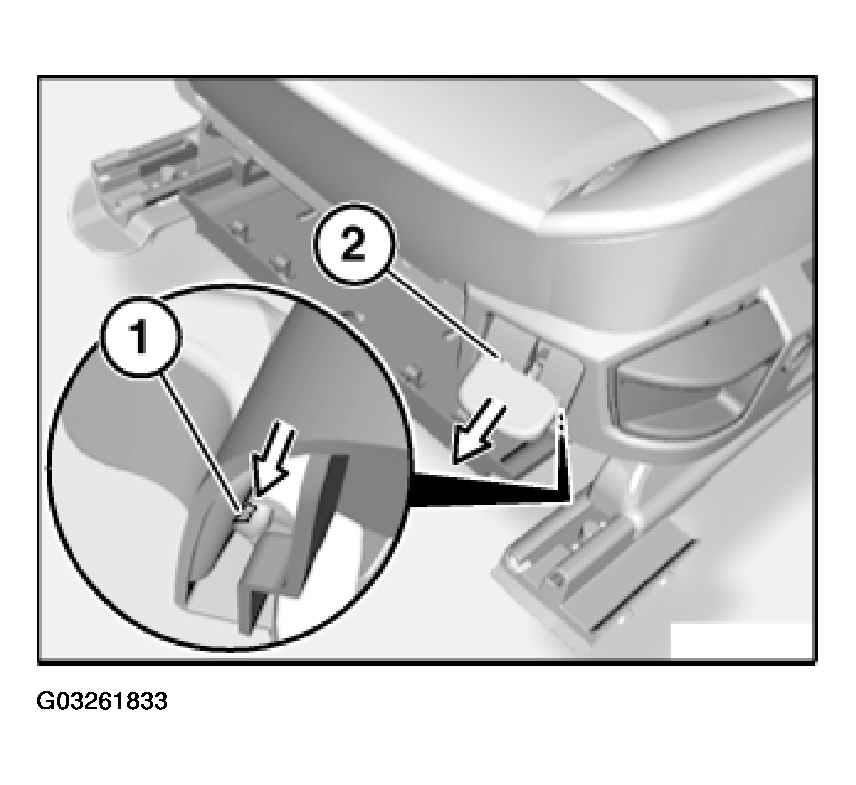

Fig 1: Moving Seat Fully Forwards And Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim:

Unclip at top edge.
Unclip at rear towards top side.
Pull on belt opening.
Unlock lugs.
Carefully remove trim towards front. Unfasten plug connection.

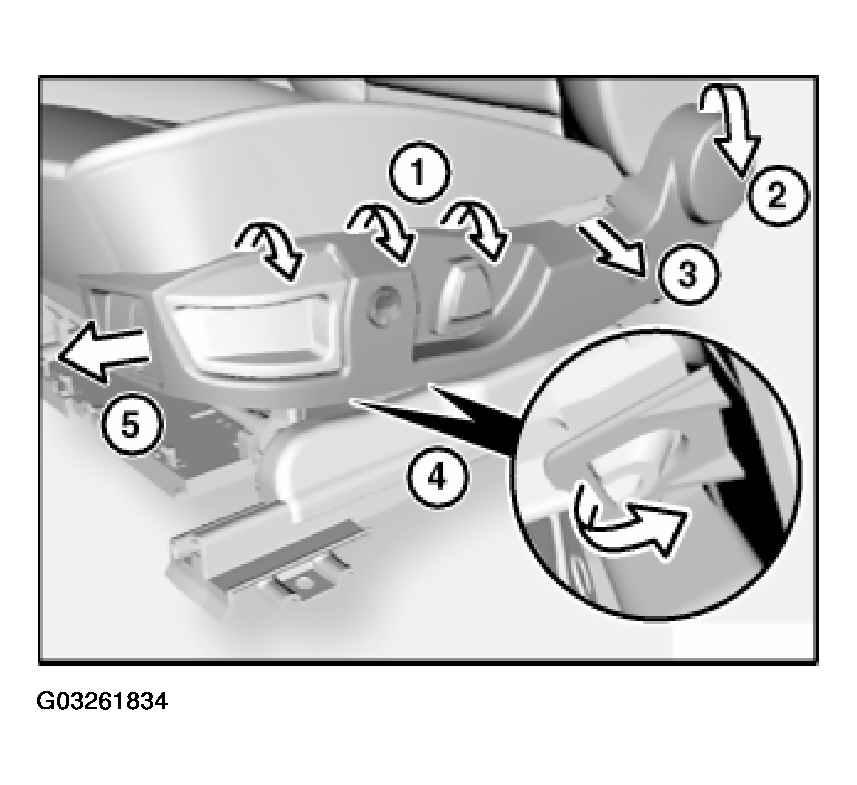

Fig 2: Removing Trim Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove switch.

Installation:

Retaining clips and tabs must not be damaged.

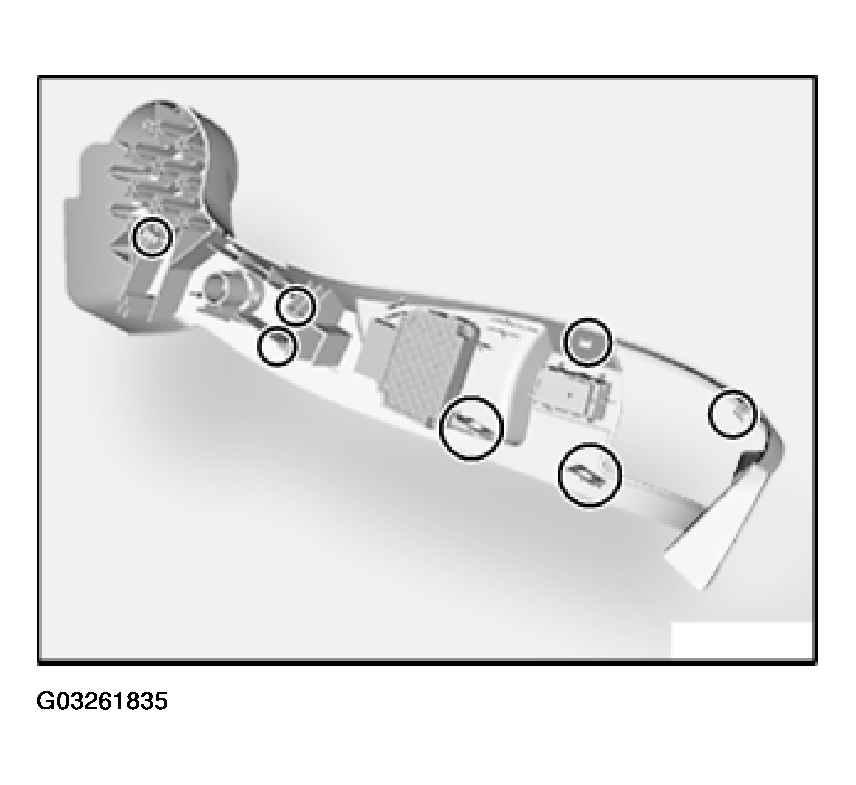

Fig 3: Identifying Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
