52 14 060 Removing and installing/replacing valve housing for left or right front lumbar support (normal/electric)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear panel on front seat backrest. See 52 14 198 Removing And Installing/Replacing Rear Panel On Left Or Right Front Seat Backrest (Normal/Electric) .

Release retaining screw (1).

Disconnect electrical plug connection.

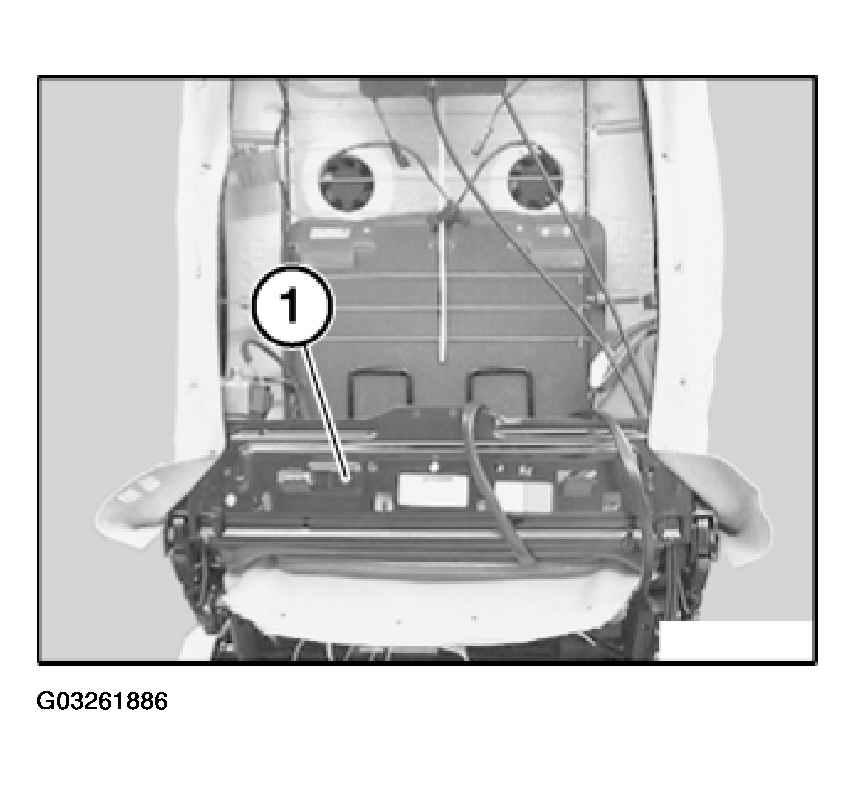

Fig 1: Disconnecting Electrical Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect air hoses (1) and (2).

Installation:

Make sure air hoses (2) are correctly connected to valve block (color coding: red/blue).

Housing on valve block must not be unclipped (leakage). If necessary, clip housing together.

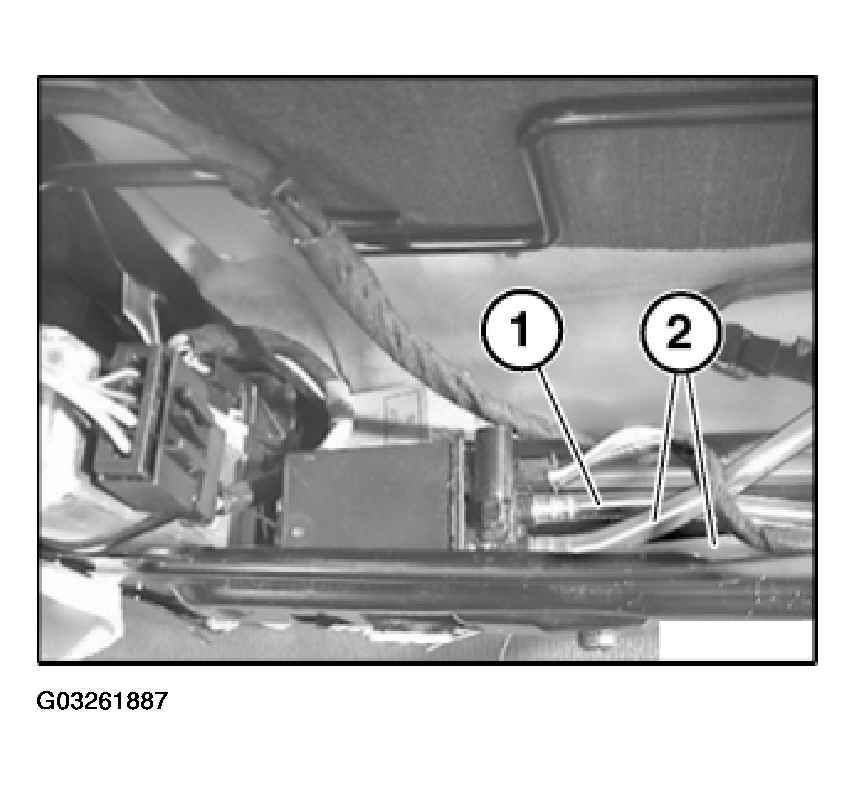

Fig 2: Disconnecting Air Hoses

Courtesy of BMW OF NORTH AMERICA, INC.
