52 17 380 Removing and installing/replacing head restraint mount on left or right front seat (comfort)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove head restraint. See 52 14 390 Removing And Installing Or Replacing Front Left Or Right Head Restraints (Normal/Electric) .
Remove both rear panels on front seat backrest. See 52 14 198 Removing And Installing/Replacing Rear Panel On Left Or Right Front Seat Backrest (Normal/Electric) .

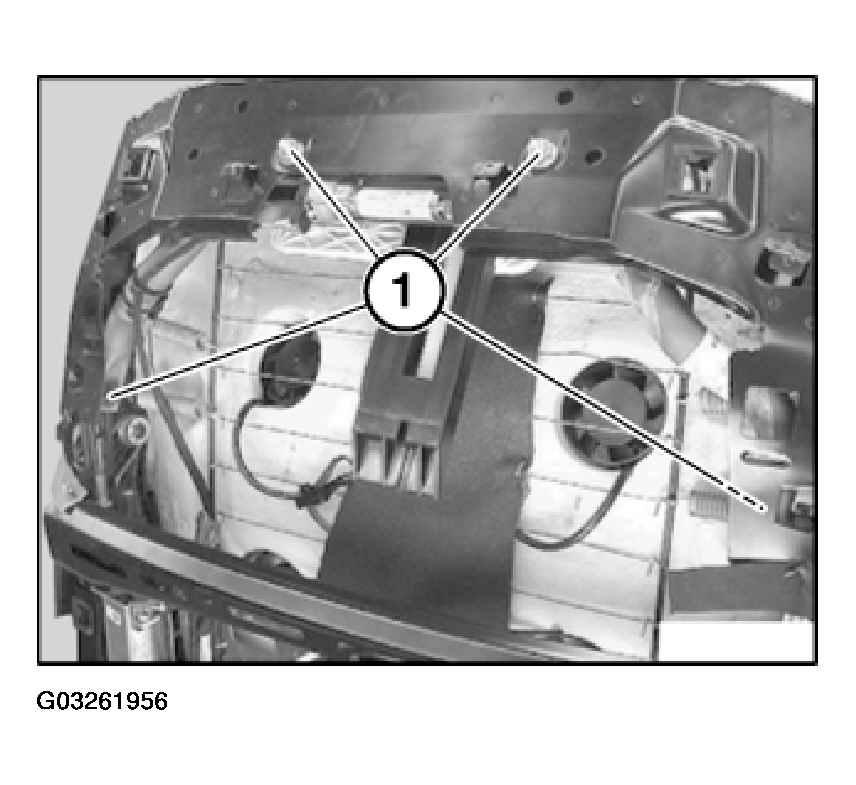

Detach retaining points (1).

Fig 1: Detaching Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

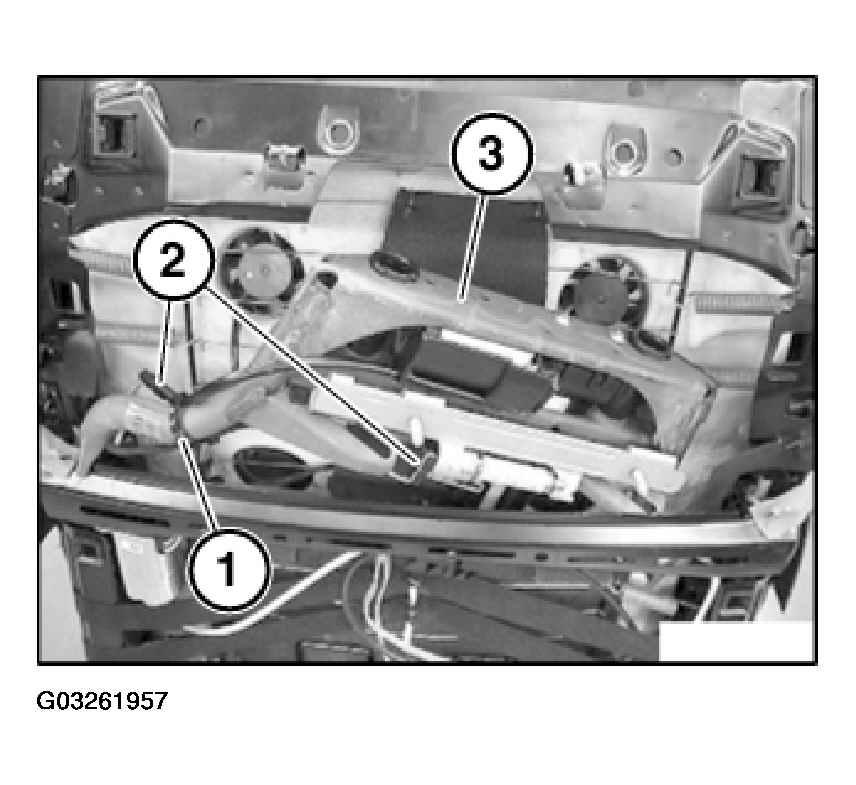

Unfasten cable clip (1).

Disconnect plug connections (2).

Feed out AKS carrier (3) towards bottom.

Fig 2: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

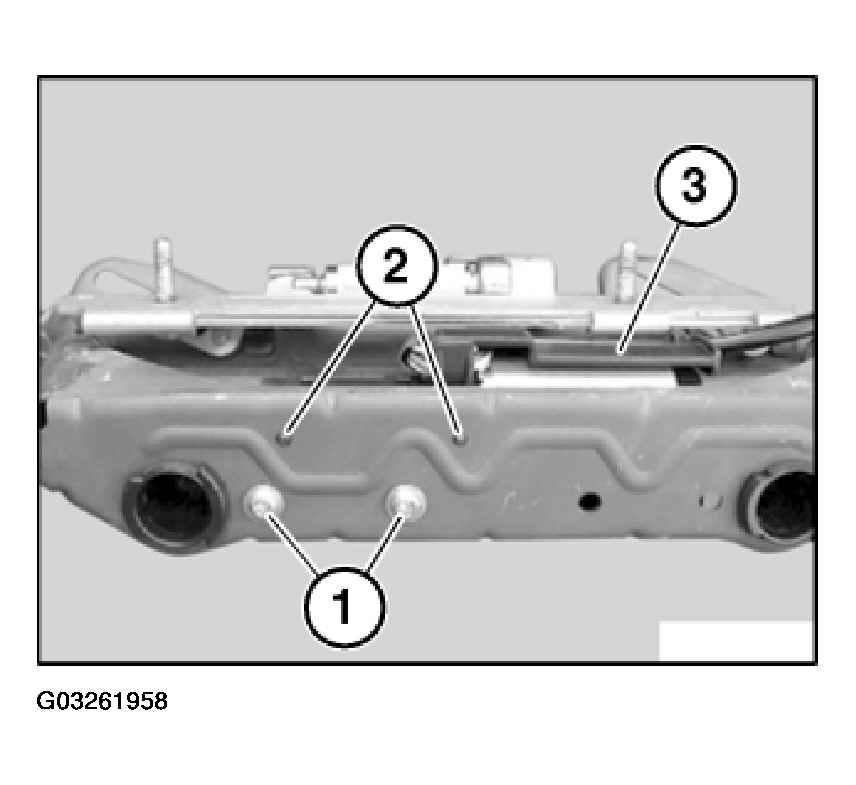

Release screws (1).

Installation:

Guide pins (2) of head restraint mount must engage in openings on AKS carrier.

Feed out head restraint mount (3) sideways.

Fig 3: Feeding Out Head Restraint Mount Sideways

Courtesy of BMW OF NORTH AMERICA, INC.
