52 17 035 Removing and installing/replacing gearing for head restraint adjustment (comfort)
WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove shaft for head restraint adjustment. See 52 17 000 Removing And Installing Left Or Right Front Seat (Comfort) .

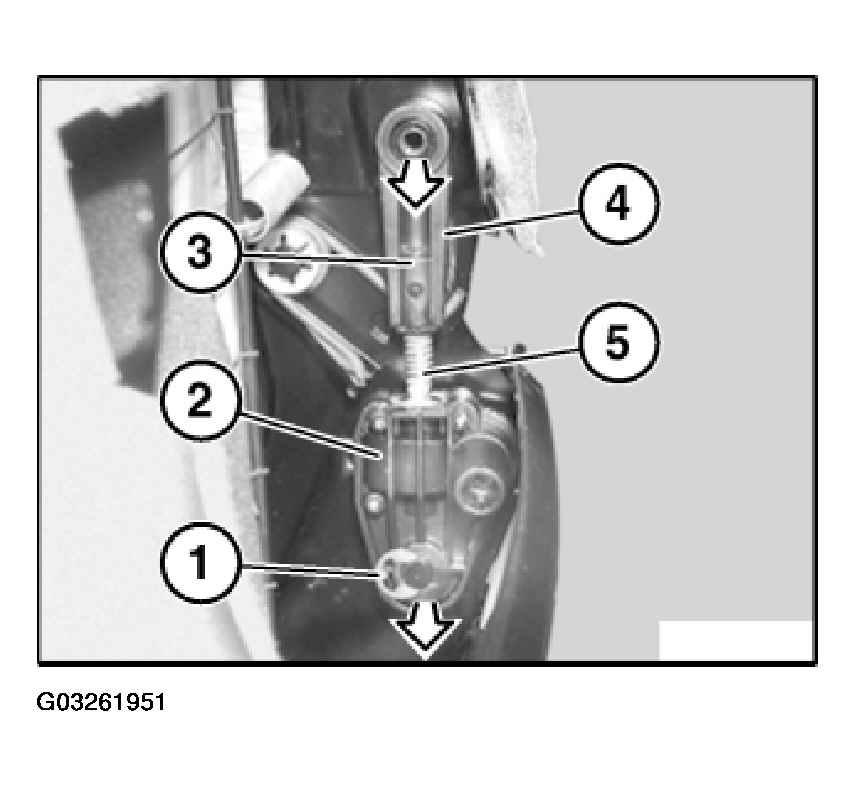

Remove retainer (1) on left and right.
Remove gearing (2) on left and right straight towards front.
Installation:
To ensure identical adjustment of gearings (2), carry out following work step on both gearings:
- Unscrew component (4) until threaded rod (5) is flush with edge (3).
