51 13 280 Removing and installing trim strip on roof frame at left or right
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

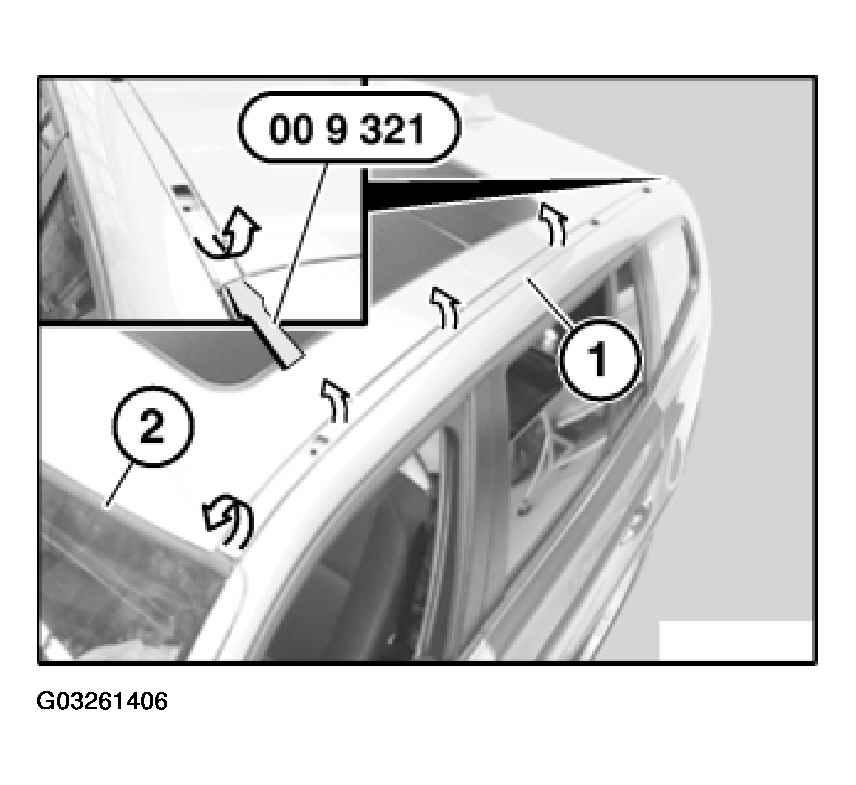

Lever out trim strip (1) with special tool 00 9 321 at rear first.
Unclip trim strip (1) up to front and pull out of seal (2) towards rear.
Installation:

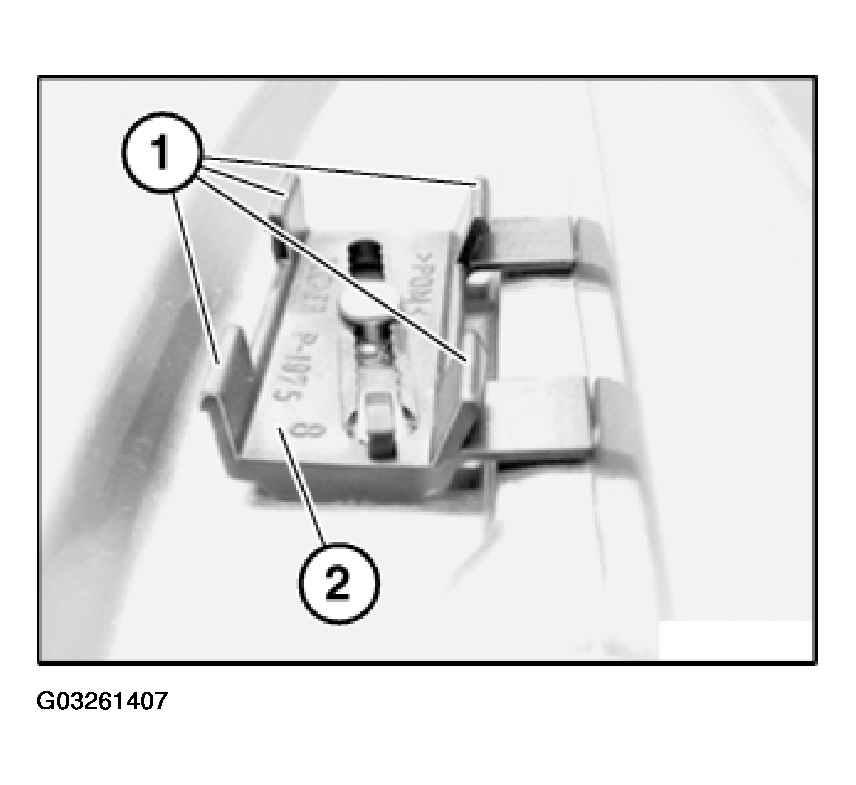

Catches (1) of clips (2) must not be damaged.
If necessary, replace clips (2).
Installation:

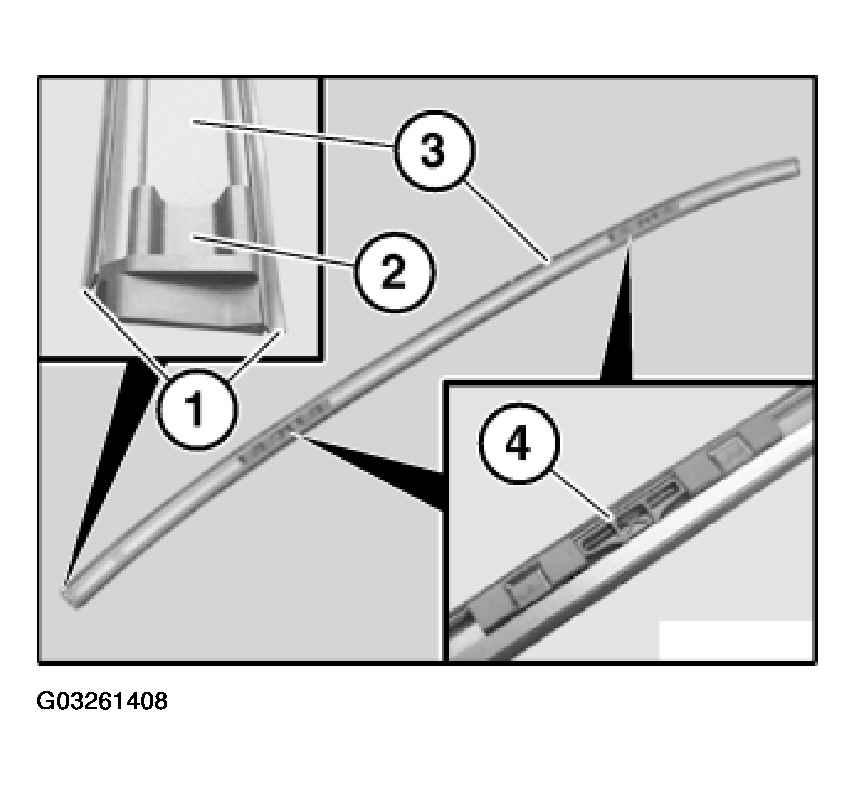

Following parts of trim strip (3) must not be damaged or missing:
- 1 Seals
- 2 End piece, front
- 4 Spacer
Installation:

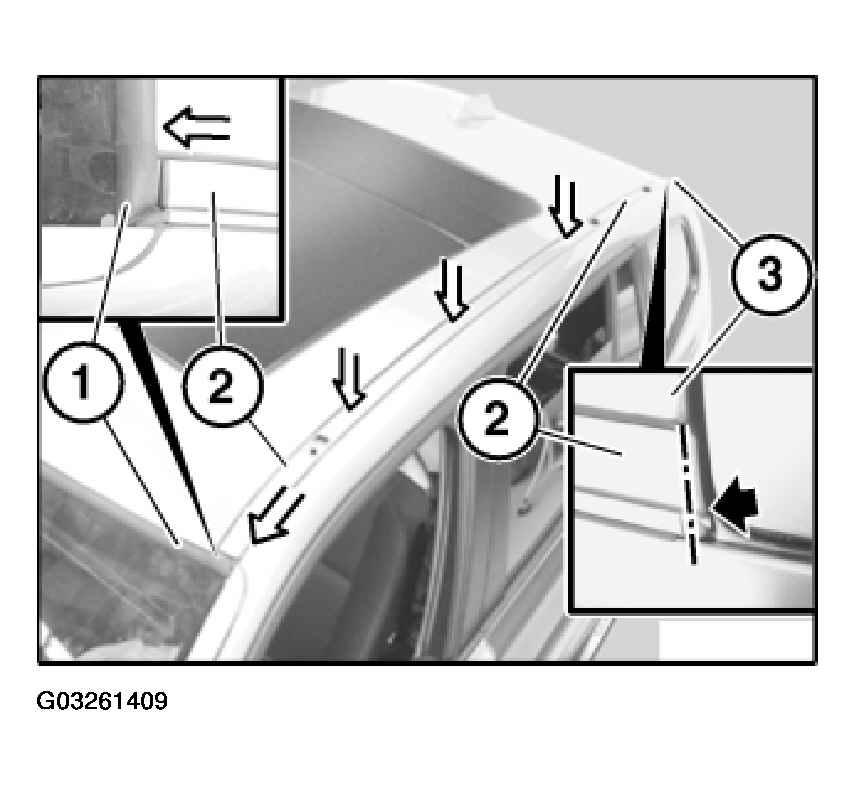

First push trim strip (2) at front into seal (1), clip in at rear flush with edge (3) and then clip in remainder.
