51 49 000 Removing and installing or replacing trim for rear lid

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open trunk lid.
Remove LUGGAGE COMPARTMENT LIGHT IN REAR LID .

Version with manual rear lid unlocking:

Detach handle (1) from clip (2).

Disconnect Bowden cable (3) from handle (1).

Installation:

Guide Bowden cable (3) through clip (2) and connect correctly in handle (1).

Fig 1: Disconnecting Bowden Cable From Handle

G03261794

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screws (1) and (2).

Lever out retaining strap and detach tool kit (3).

Fig 2: Removing Retaining Strap And Detach Tool Kit

G03261795

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets (1) on left and right.

Remove trim (2).

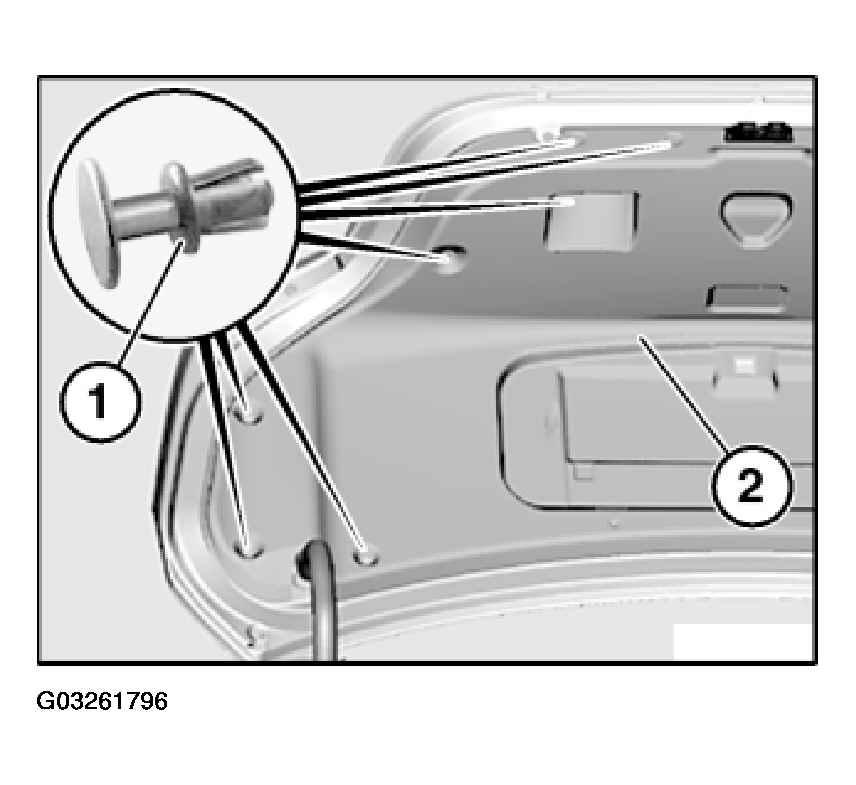

Fig 3: Removing Expansion Rivets On Left And Right

G03261796

Courtesy of BMW OF NORTH AMERICA, INC.
