51 22 370 Removing and installing/replacing cover at bottom left or right on rear door

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

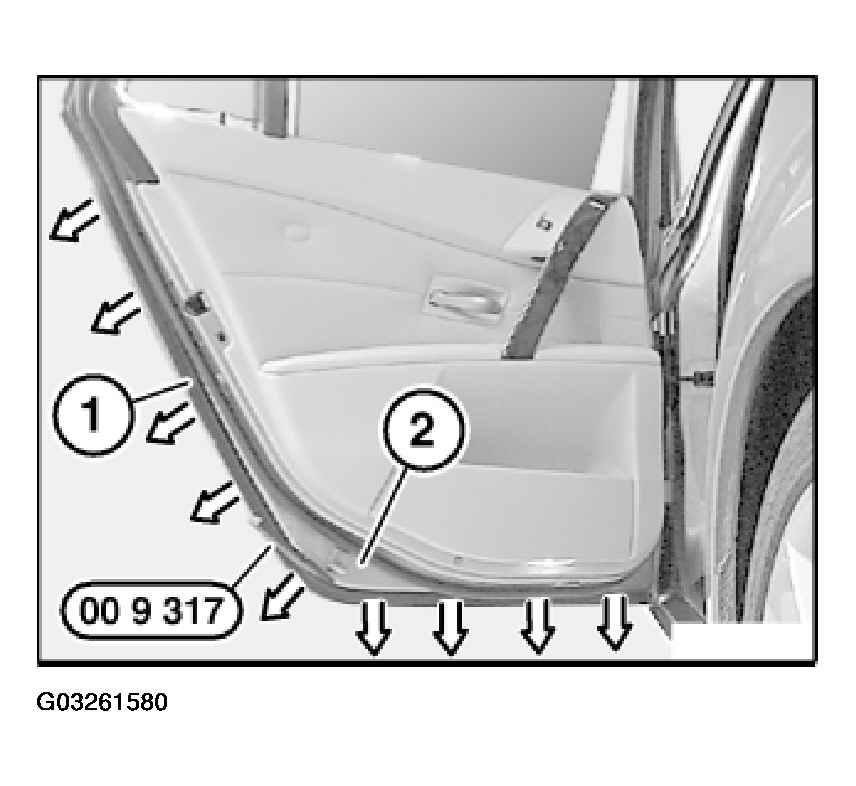

Pull off cover (1) with special tool 00 9 317 in direction of arrow from rear door (2).

Fig 1: Removing Cover With Special Tool
G03261580Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

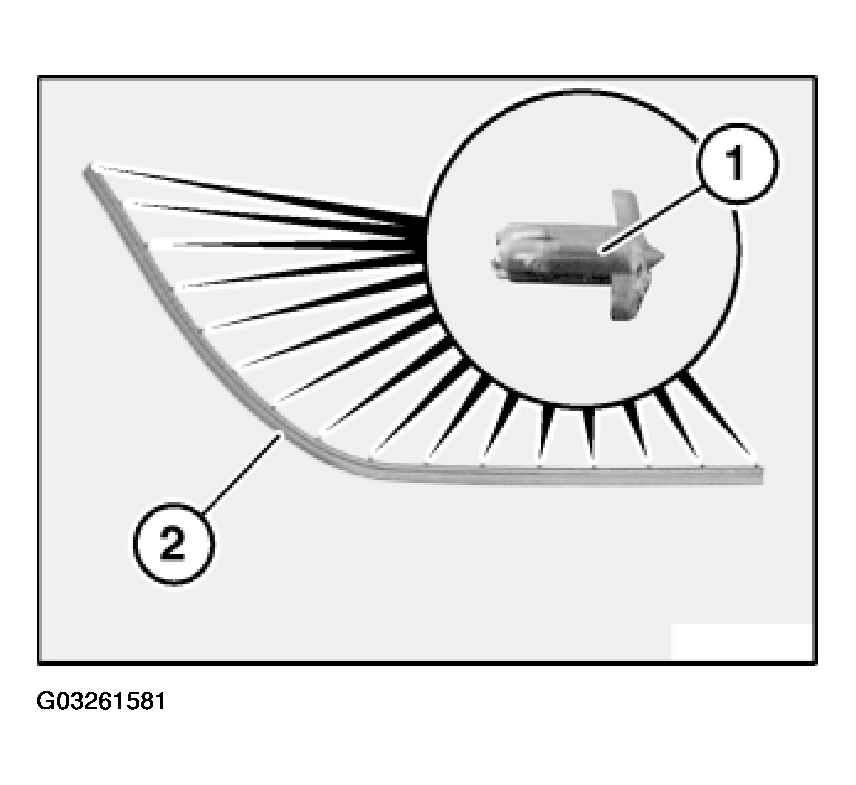

Clips (1) on cover (2) must not be damaged.

If necessary, replace clips (1).

Fig 2: Installing Clips On Cover
G03261581Courtesy of BMW OF NORTH AMERICA, INC.
