51 22 360 Replacing seal for door seam/roof frame on left or right rear door

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

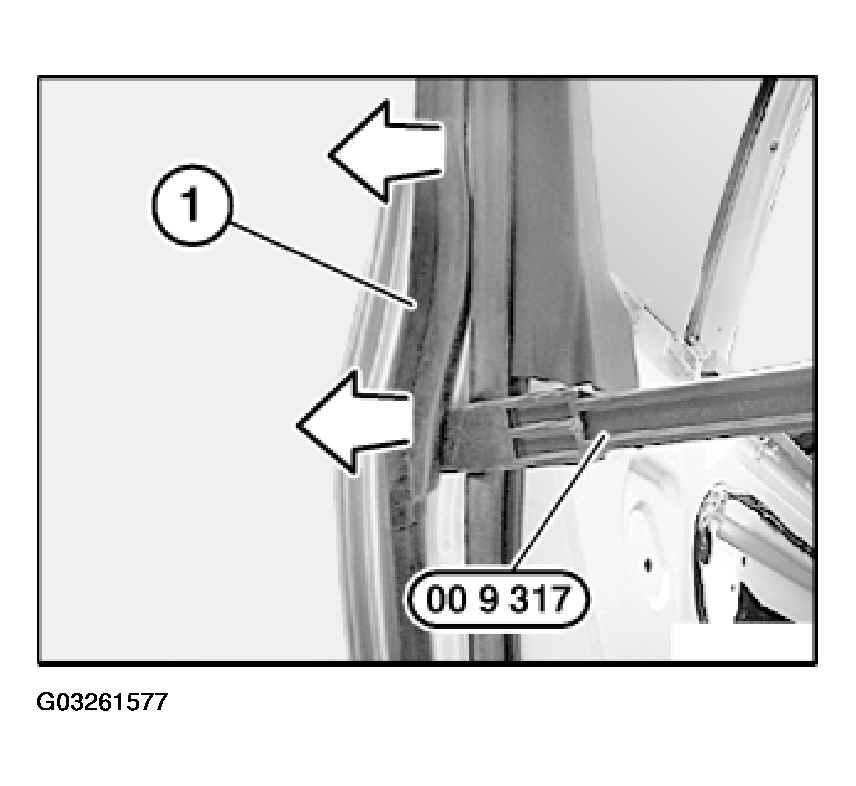

Lever out seal (1) at rear with special tool 00 9 317 in direction of arrow.

Fig 1: Removing Seal At Rear With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

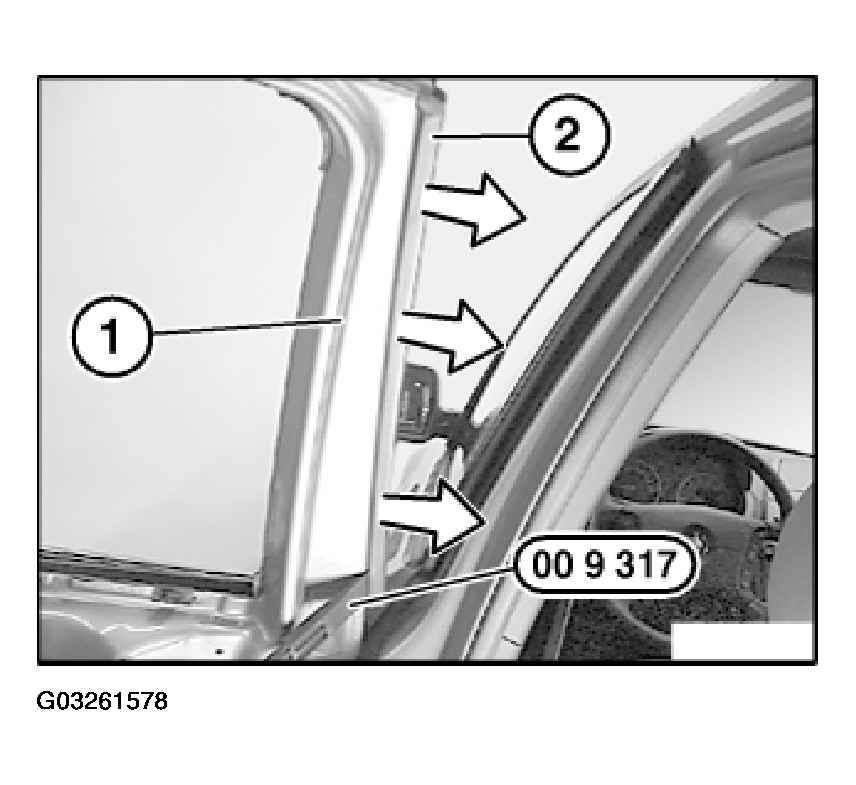

Lever out seal (1) on door window frame at front (2) with special tool 00 9 317 .

Fig 2: Removing Seal On Door Window Frame At Front With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

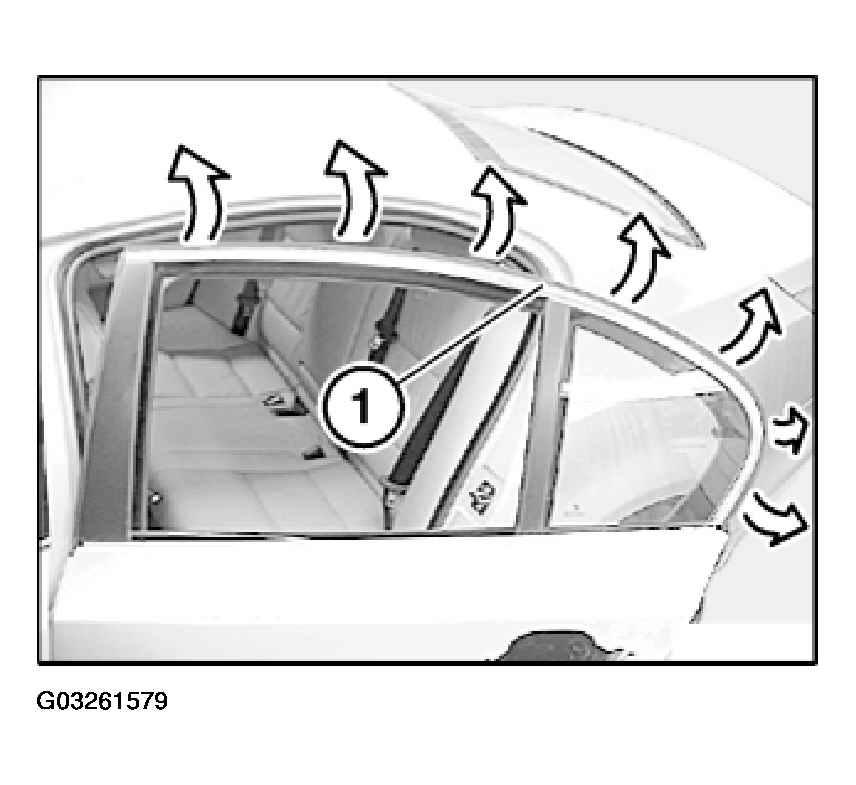

Starting at rear, pull off seal (1) towards front.

Fig 3: Removing Seal

Courtesy of BMW OF NORTH AMERICA, INC.
