51 22 330 Removing and installing/replacing window cavity cover strip on inside rear door

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear door trim panel. See TRIM PANEL (UP TO 03/2007) or TRIM PANEL (LONG VERSION OR FROM 03/2007) .

IMPORTANT:

The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.

Pull window cavity cover strip at front (1) and rear (2) from rear door.

Installation:

If necessary, replace faulty retainers (3).

Moisten window cavity cover strips (1 and 2) prior to fitting with APPROVED ANTI-FRICTION AGENT .

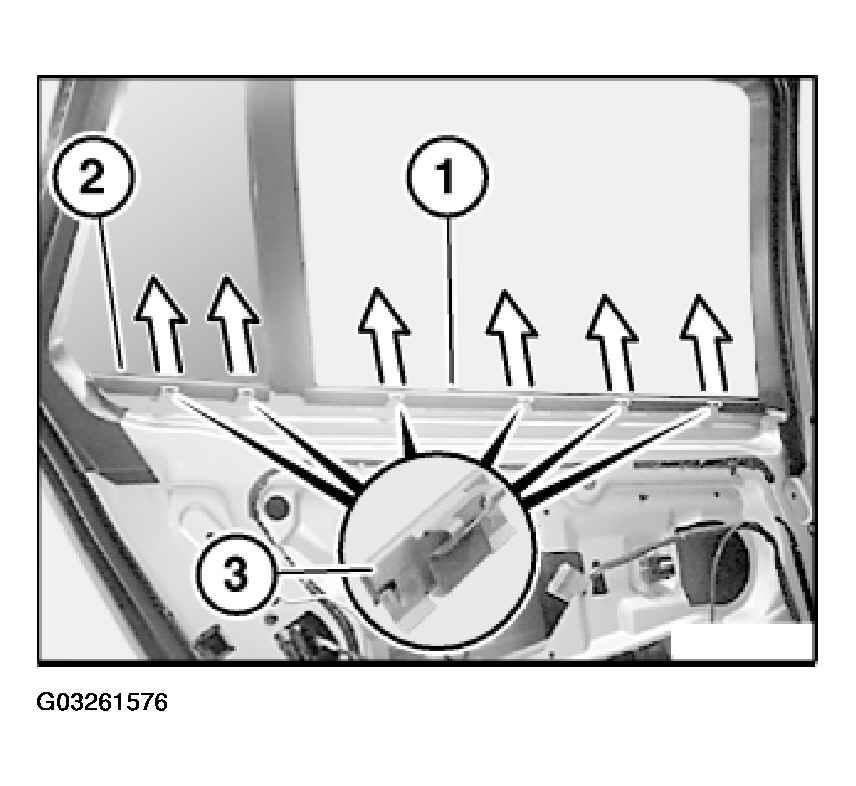

Fig 1: Pulling Window Cavity Cover Strip At Front And Rear From Rear Door

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement With Security Version:

Cut front window cavity cover strip to length on side of fixed door window glass to 533 mm.

Cut rear window cavity cover strip (1) to length on straight side (2) to measurement a = 153 mm.

Fig 2: Identifying Rear Window Cavity Cover Strip Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.
