51 22 180 Removing and installing/replacing cover on outside handle

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If replacing version with Comfort Access/CA:

In order to avoid Comfort Access malfunction, use only original BMW paints on the outside handle with electrically non-conducting primer.

New part* (from 09/2005) is provided with electrically non-conducting primer.

* Sourcing reference: BMW Parts Service

Necessary preliminary tasks:

Remove OUTSIDE HANDLE .

Remove trim (2).

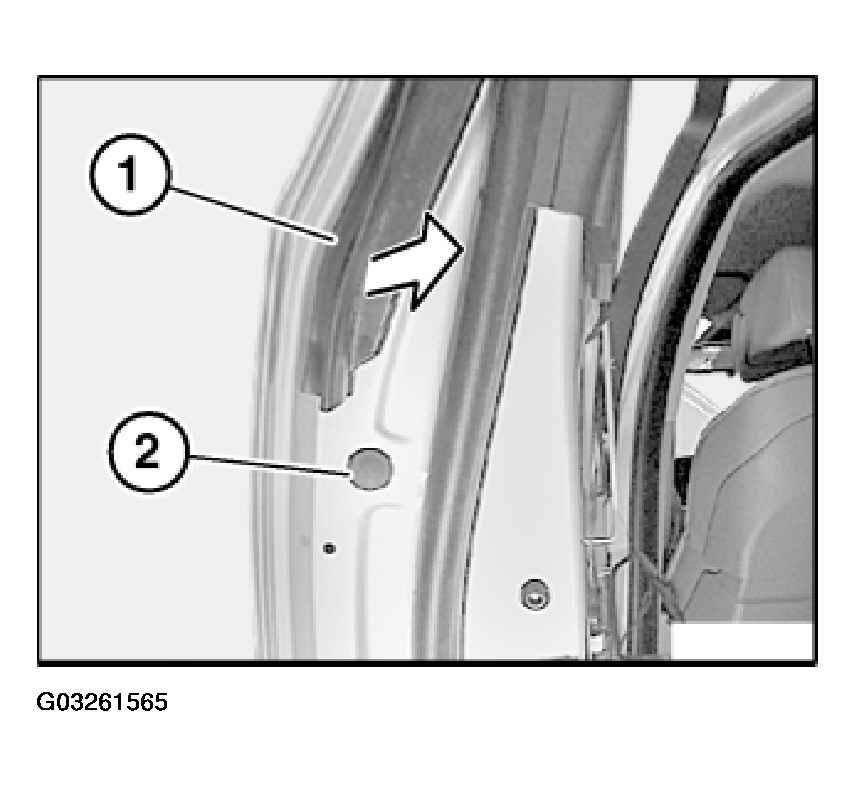

Fig 1: Removing Trim

G03261565

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Protect bore (1) against scratching (risk of corrosion).

Release screw (2).

Installation:

Press cover (3) slightly towards rear when screwing down (gap).

Tightening torque: see 8AZ in 51 22 REAR DOOR LOCKS

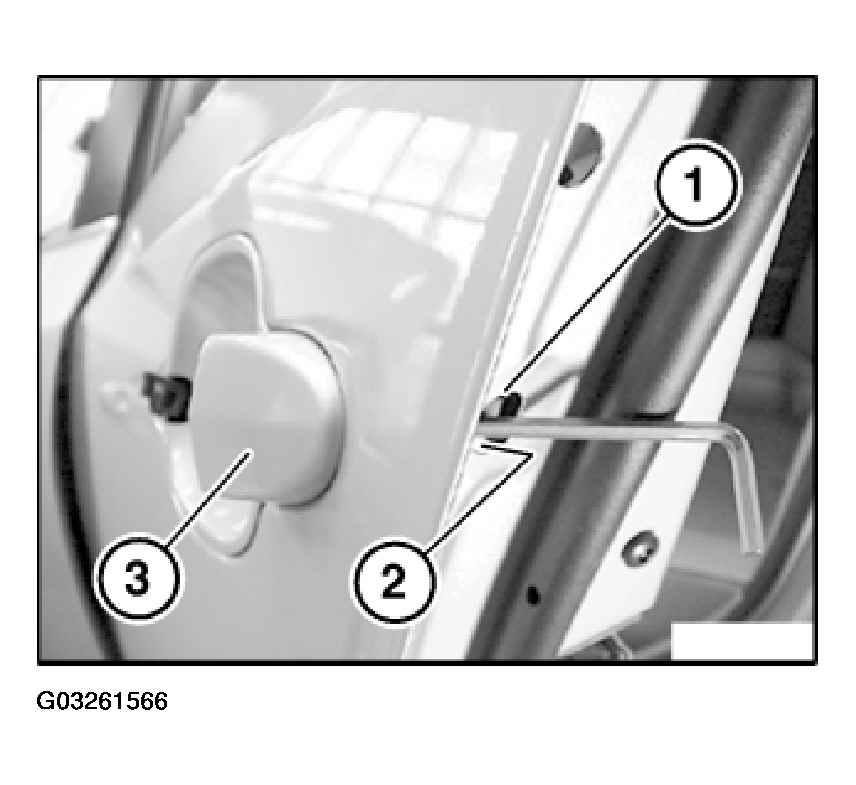

Fig 2: Removing Screw

G03261566

Courtesy of BMW OF NORTH AMERICA, INC.

Remove stop pad (1).

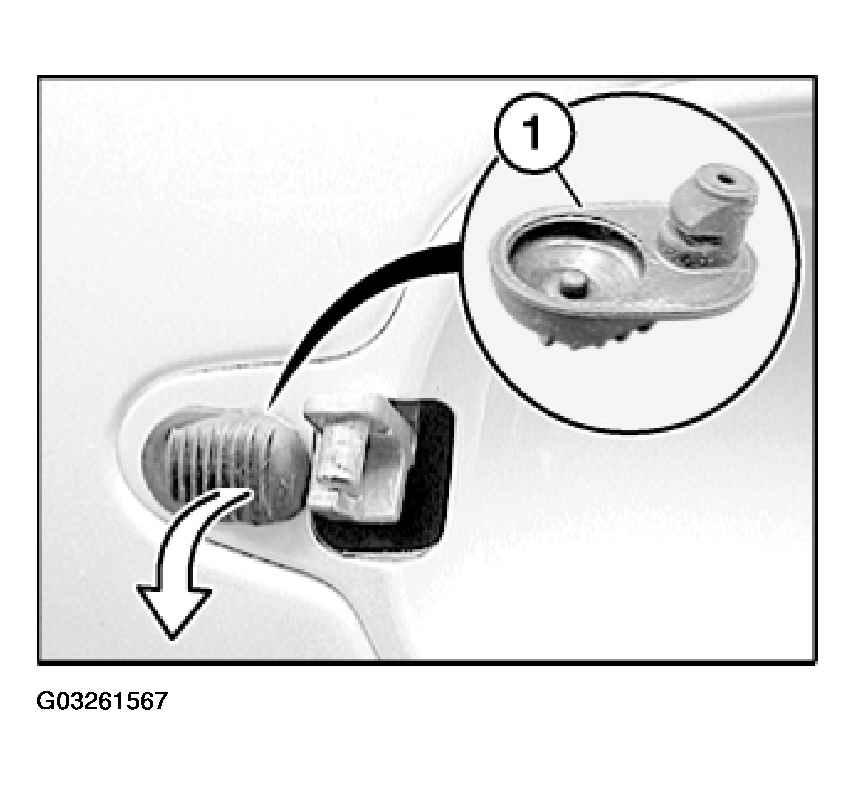

Fig 3: Removing Stop Pad

G03261567

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screw (1).

Press mounting (2) back, lever out cover (3) at rear and remove in direction of arrow.

Tightening torque: see 7AZ in 51 22 REAR DOOR LOCKS

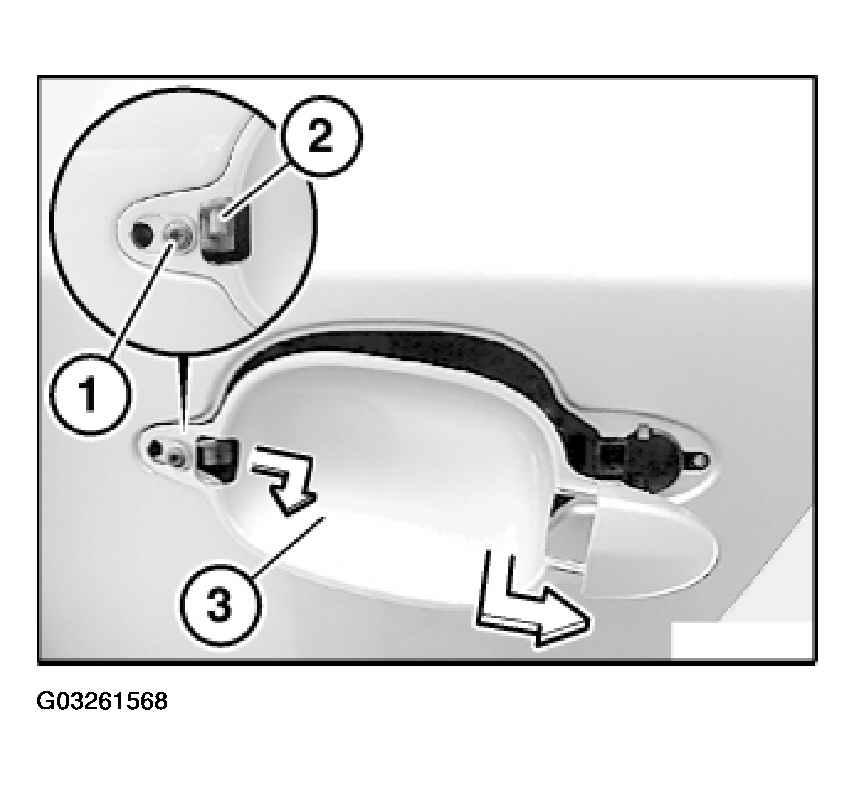

Fig 4: Loosening Screw

G03261568

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of cover on outside handle. Exploded View Of (5) must not be damaged or missing:

Thread
Bridges
Bridges
Screw surface

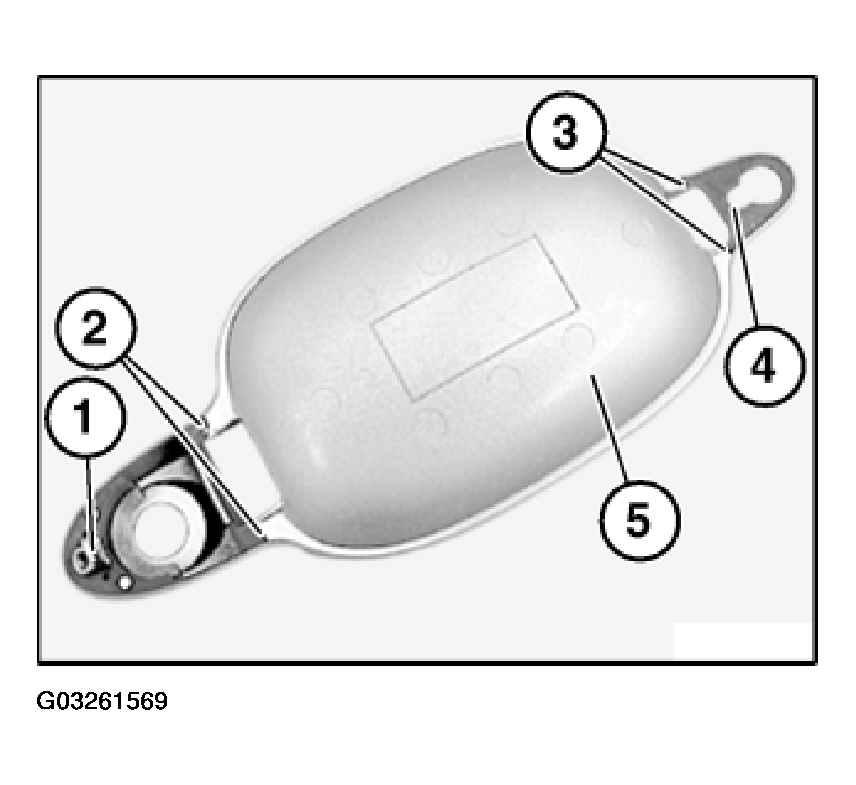

Fig 5: Installing Parts Of Cover On Outside Handle
