51 22 001 Replacing door detent (lock striker), rear left or right

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Operation up to "cover on rear door detent" is identical to:

Replacing front left or right DOOR DETENT .

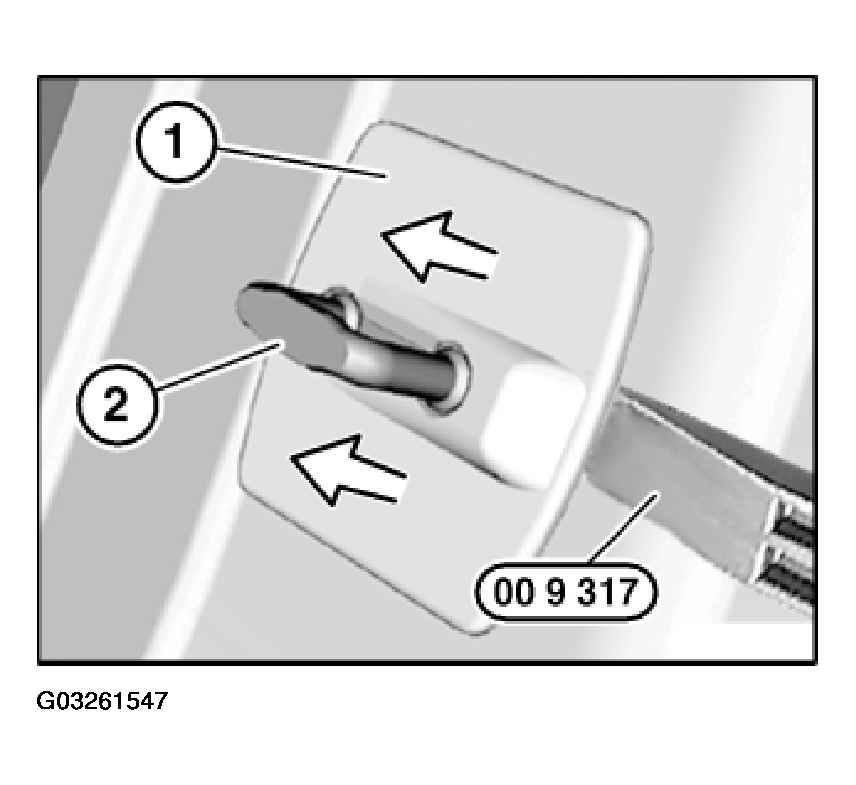

Unclip cover (1) with special tool 00 9 317 from door detent (2) and remove towards front.

Fig 1: Removing Front Left Or Right Door Detent
G03261547Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

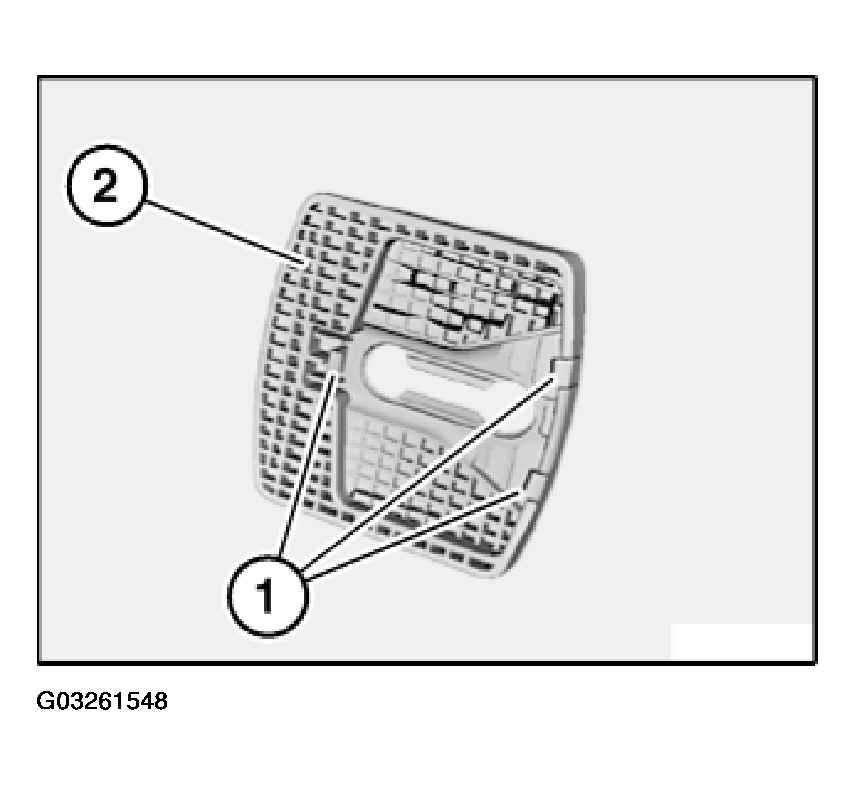

Catches (1) on cover (2) must not be damaged.

Fig 2: Installing Catches On Cover
G03261548Courtesy of BMW OF NORTH AMERICA, INC.
