51 12 156 Removing and installing rear bumper trim

Necessary preliminary tasks:

• Remove LEFT LUGGAGE COMPARTMENT TRIM PANEL .
• Remove RIGHT LUGGAGE COMPARTMENT TRIM PANEL .

M5 only:

• Remove GUIDE FOR BUMPER  at bottom rear.

Release screws (1) from wheel arch cover (2) on left/right.

Release expansion rivet on left/right.

Pull bumper trim (4) out of mounting (3).

Installation:

Make sure bumper trim (4) is correctly positioned in relation to mounting (3).

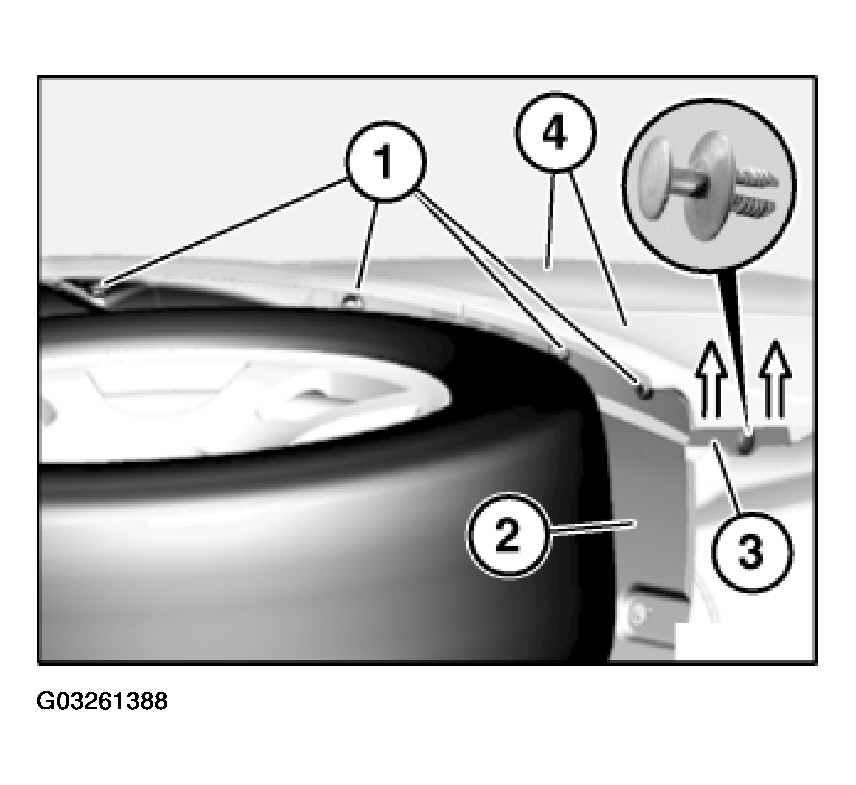

Fig 1: Removing Screws From Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Not M5

Release expansion rivets on bottom middle guide.

Release bumper trim (2) from catches (1).

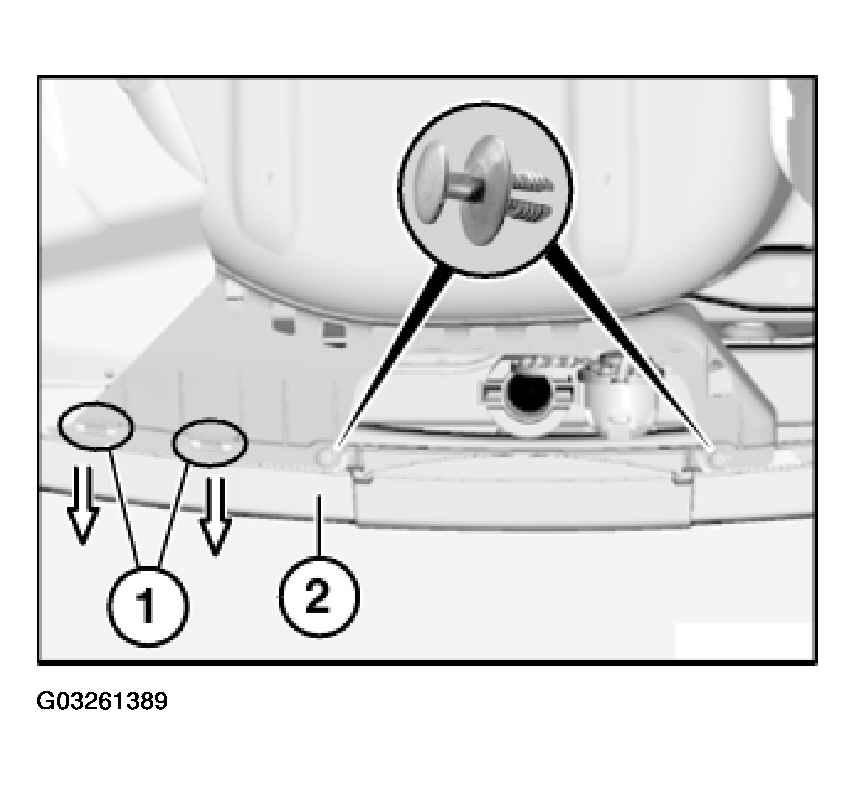

Fig 2: Removing Bumper Trim From Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) with sealing washers on left/right.

1. 2 Tail light
2. 3 Trim, rear apron

Installation:

Replace screws (1) with sealing washers.

Tightening torque: see 8AZ in 51 12 REAR BUMPER .

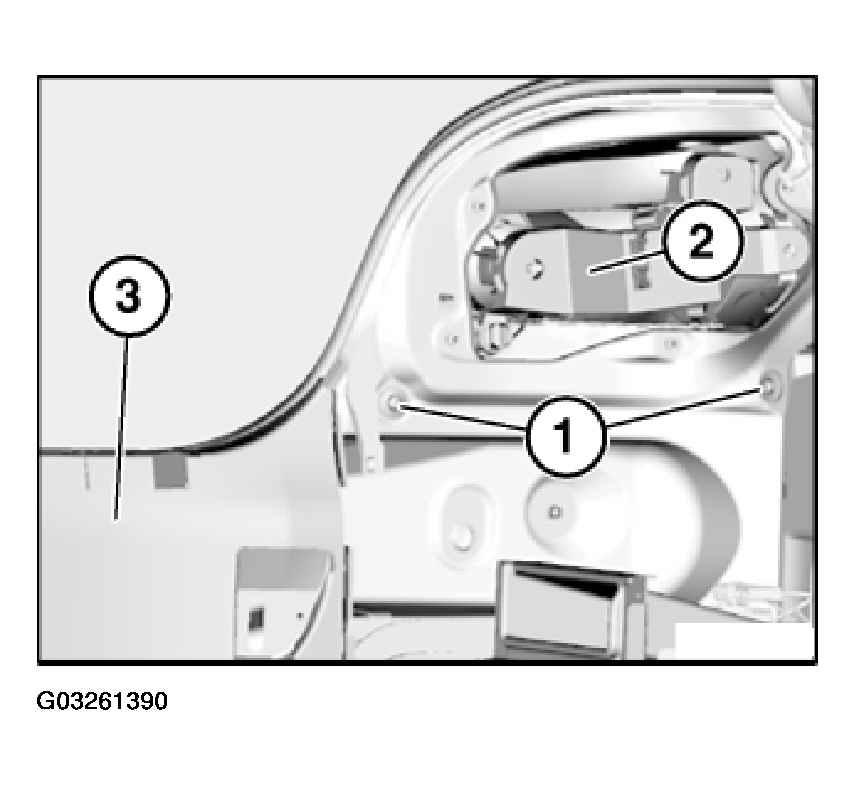

Fig 3: Removing Screws With Sealing Washers

Courtesy of BMW OF NORTH AMERICA, INC.

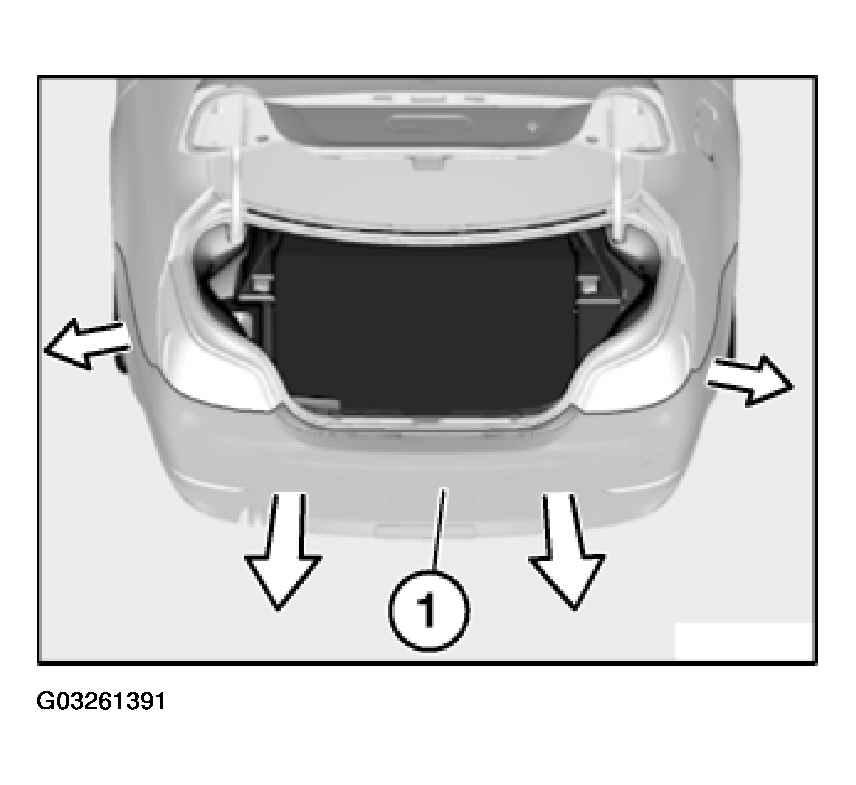

Unclip bumper trim (1) to side panel (1) on left/right outwards.

Remove bumper trim (1) in direction of arrow towards rear with aid of a 2nd person.

If necessary, disconnect plug connection (wiring harness) of ultrasonic transducers.
