51 16... Removing and installing/replacing finisher for storage tray at rear
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR COMPARTMENT FRESH AIR GRILL .

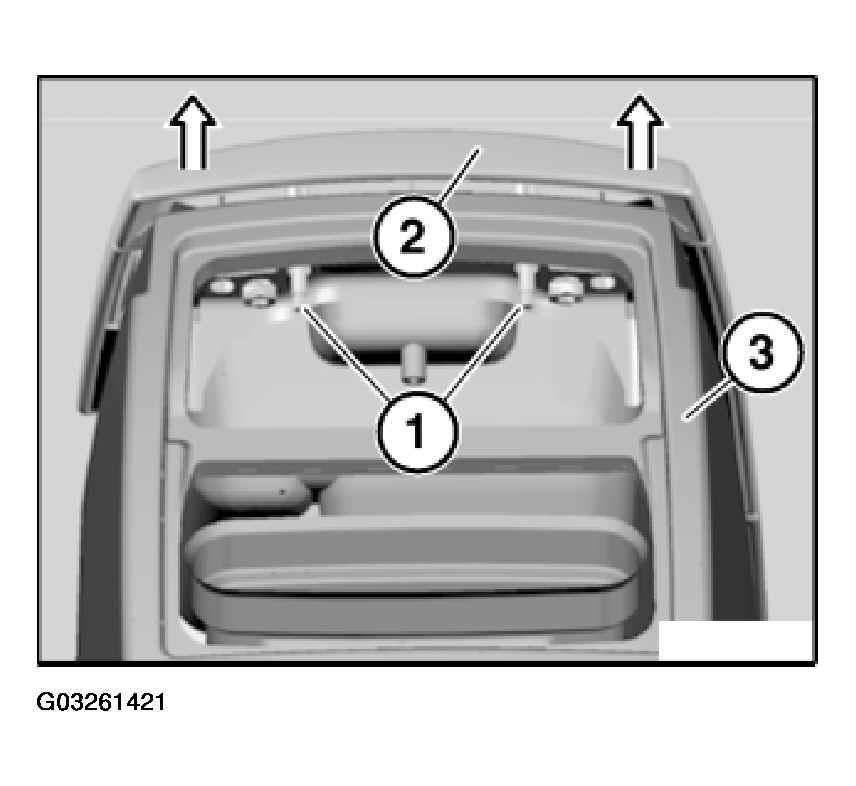

Release front nuts (1).
NOTE:
Do not release rear nuts!
Remove trim (2) towards top from storage compartment (3).
