51 16 405 Removing and installing/replacing roller sun blind on side window of left or right rear door (long version or from 03/2007)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL .

Release screws (1).

Slide roller sun blind (2) approx. 25 mm in direction of arrow and thus detach from guides (3).

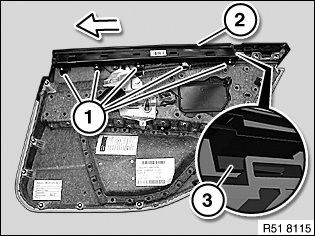

Fig 1: Identifying Screws, Roller Sun Blind, And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lugs (1) on roller sun blind (2) and guides (3) on door trim panel (4) must not be damaged.

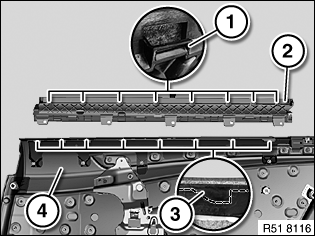

Fig 2: Identifying Lugs, Roller Sun Blind, Door Trim Panel, And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
