51 16 405 Removing and installing or replacing blind at side window of left or right rear door (up to 03/2007)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear door trim panel. See 51 42 000 Removing And Installing Left Or Right Rear Door Trim Panel .

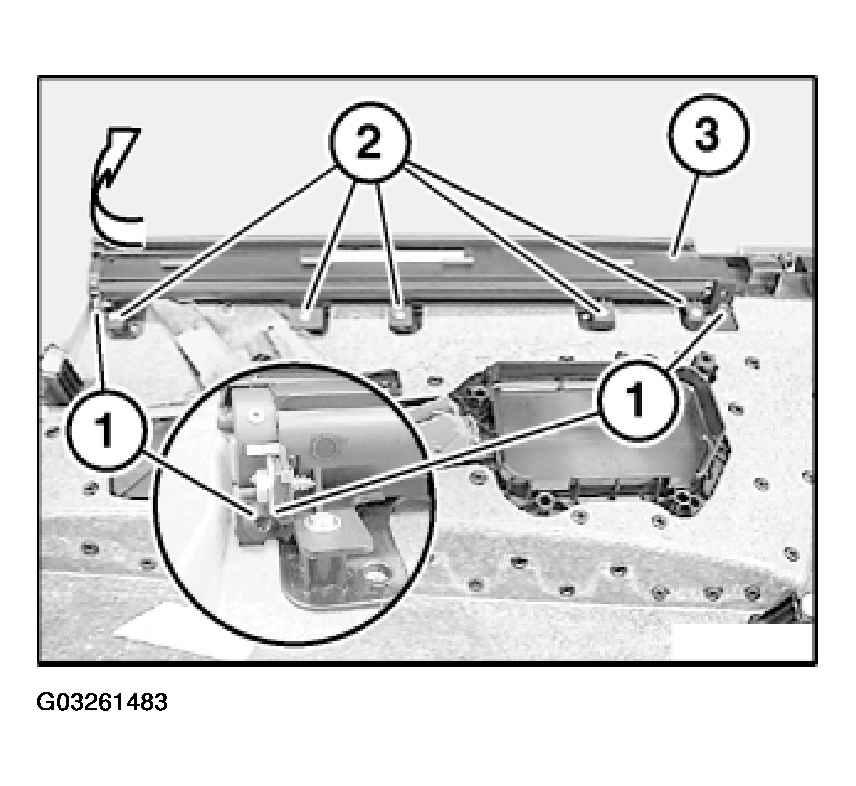

Release screws (1 and 2) and remove roller sun blind (3) in direction of arrow.

Fig 1: Removing Rear Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Security version:

Installation:

Roller sun blind is modified.

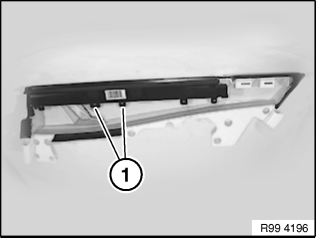

Screws (1) are shortened. Door trim panel may be damaged with unshortened screws (1).

Fig 2: Locating Shortened Screws

Courtesy of BMW OF NORTH AMERICA, INC.
