51 16 400 Removing and installing/replacing roller sun blind on fixed side window of left or right rear door (security)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (1).

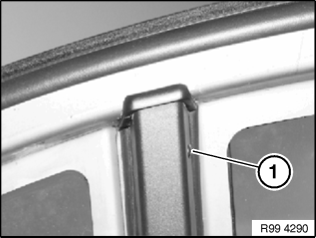

Fig 1: Locating Screw
G00460802Courtesy of BMW OF NORTH AMERICA, INC.

Remove roller sun blind (1) in direction of arrow.

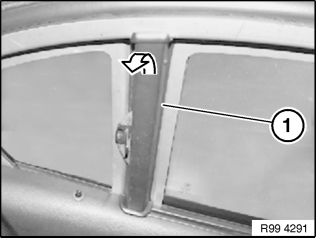

Fig 2: Removing Roller Sun Blind
G00460803Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Glue plastic trim (1) to roller blind housing (2) with Sika activator, Sika primer 206 G+P and WINDOW ADHESIVE .

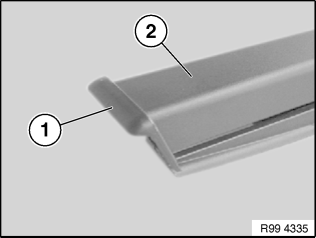

Fig 3: Attaching Plastic Trim To Roller Blind Housing
G00460804Courtesy of BMW OF NORTH AMERICA, INC.
