51 16 342 Removing and installing/replacing lock cylinder for passenger airbag deactivation

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Individual parts, switch for passenger airbag deactivation

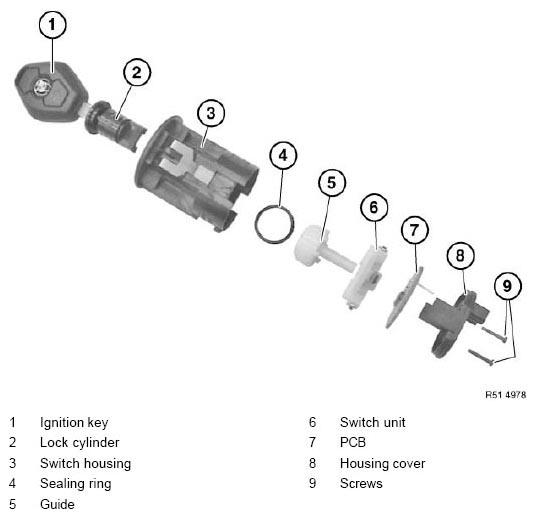

Fig 1: Identifying Passenger Airbag Deactivation Switch Components

G04760945

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Remove SWITCH FOR PASSENGER AIRBAG DEACTIVATION

Release screws (1).

Remove housing cover (2) and PCB (3) underneath.

Fig 2: Removing Housing Cover And PCB Underneath

G04749693

Courtesy of BMW OF NORTH AMERICA, INC.

Remove switch unit (1) in upward direction.

Installation:

Switch unit (1) can only be installed in one position.

PCB (4) can be inserted turned through 180°.

Position of magnet sensor (3) of PCB (4) must match up with permanent magnet (2) of switch unit (1).

Fig 3: Identifying Switch Unit And PCB

G04749694

Courtesy of BMW OF NORTH AMERICA, INC.

Remove guide (1) in upward direction.

Installation:

Guide (1) can only be installed in one position.

Fit seal (2) on guide (1) and insert in switch housing.

Fig 4: Identifying Seal On Guide

G04749695

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Ignition key must be inserted in lock cylinder, otherwise this will be destroyed when removed.

Insert ignition key in lock cylinder (2).

Carefully release catches (1) in outward direction and press out lock cylinder (2) with ignition key.

Installation:

Lock cylinder (2) can only be inserted in "ON" or "OFF" switch position.

Lock cylinder

Fig 5: Identifying Catches And Lock Cylinder

G04749696

Courtesy of BMW OF NORTH AMERICA, INC.
