51 16 214 Removing and installing/replacing trim for selector lever (M5)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Lever out gaiter (1) at catches (2).

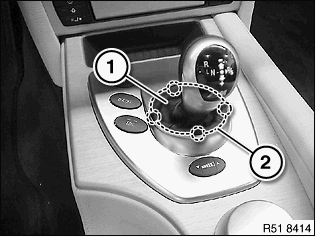

Fig 1: Identifying Gaiter And Catches

G00530643

Courtesy of BMW OF NORTH AMERICA, INC.

Reach into trim (1) and unclip upwards from retainers (2).

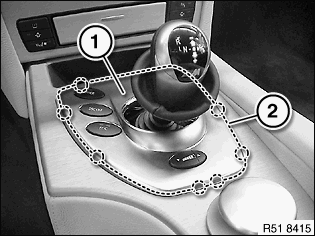

Fig 2: Identifying Retainers And Trim

G00530644

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Risk of damage!

Gaiter (1) can be damaged on trim (2) when fed out.

Press gaiter (1) together slightly and feed out through trim (2).

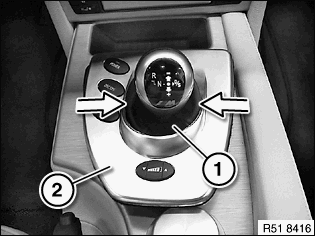

Fig 3: Identifying Gaiter And Trim

G00530645

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1 and 2).

Remove finisher strip (3).

Installation:

Plug connection (2) must be correctly clipped into trim (3).

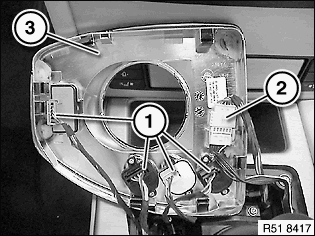

Fig 4: Identifying Trim Strip And Connectors

G00530646

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Felt strip (1) must not be missing or damaged.

Replacement:

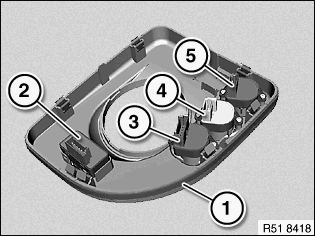

Fig 5: Identifying Felt Strip And Switches

G00530647

Courtesy of BMW OF NORTH AMERICA, INC.
