51 16 210 Removing and installing/replacing trim for preselector lever (from 03/2007)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Version with automatic transmission:

Reach into trim (1) and unclip upwards from retainers (2).

Feed out trim (1) over preselector lever (3).

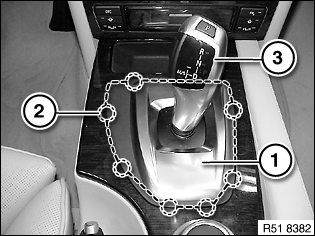

Fig 1: Identifying Preselector Lever, Trim, And Retainers

G00460786

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure retainers (1) are correctly seated in associated mountings of trim (2).

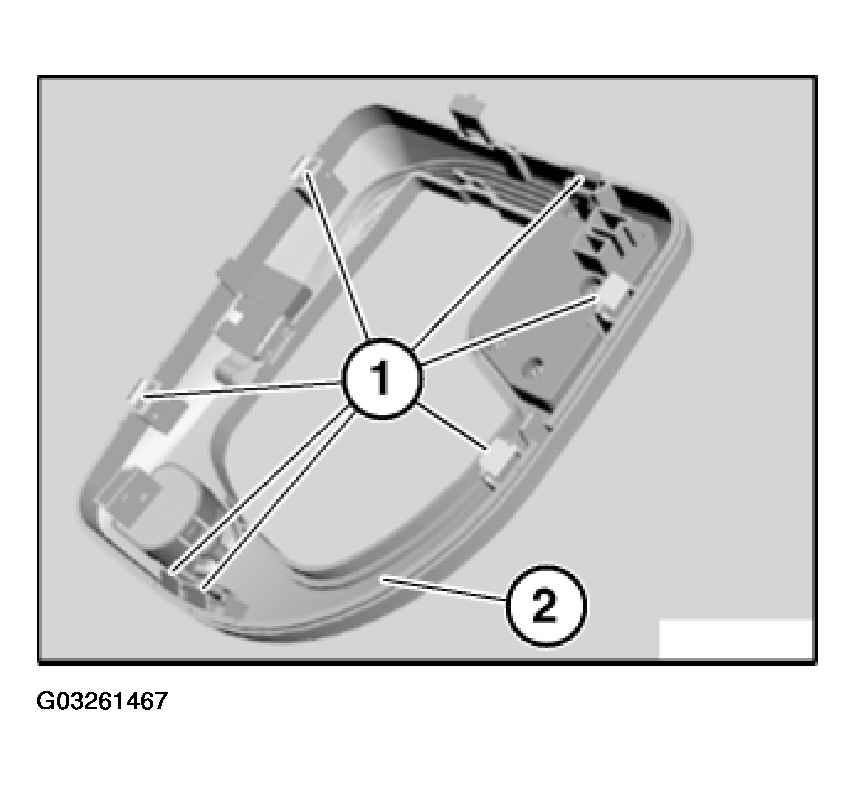

Fig 2: Identifying Correct Seating Of Retainers In Trim

G03261467

Courtesy of BMW OF NORTH AMERICA, INC.

Version with automatic sport transmission:

Lever out gaiter (1) from catches (2) with special tool 00 9 341 .

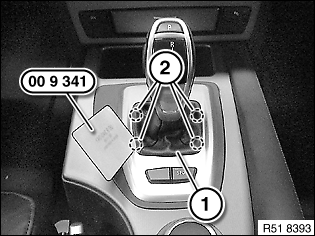

Fig 3: Levering Gaiter From Catches Using Special Tool 00 9 341

G00460787

Courtesy of BMW OF NORTH AMERICA, INC.

Reach into trim (1) and unclip upwards from retainers (2).

Feed out trim (1) upwards over gaiter (3), disconnect associated plug connection and remove trim (1).

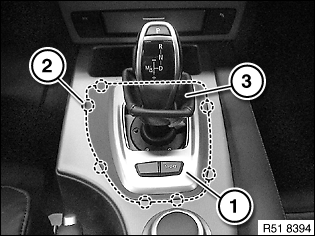

Fig 4: Identifying Preselector Lever, Trim, And Retainers

G00460788

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure retainers (1) are correctly seated in associated mountings of trim (2).

Replacement:

If necessary, remove DRIVING DYNAMICS SWITCH .

Fig 5: Identifying Correct Seating Of Retainers In Trim

G03261467

Courtesy of BMW OF NORTH AMERICA, INC.
