51 16 204 Removing and installing/replacing cup holder in armrest for rear seat backrest
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Fold center armrest forwards

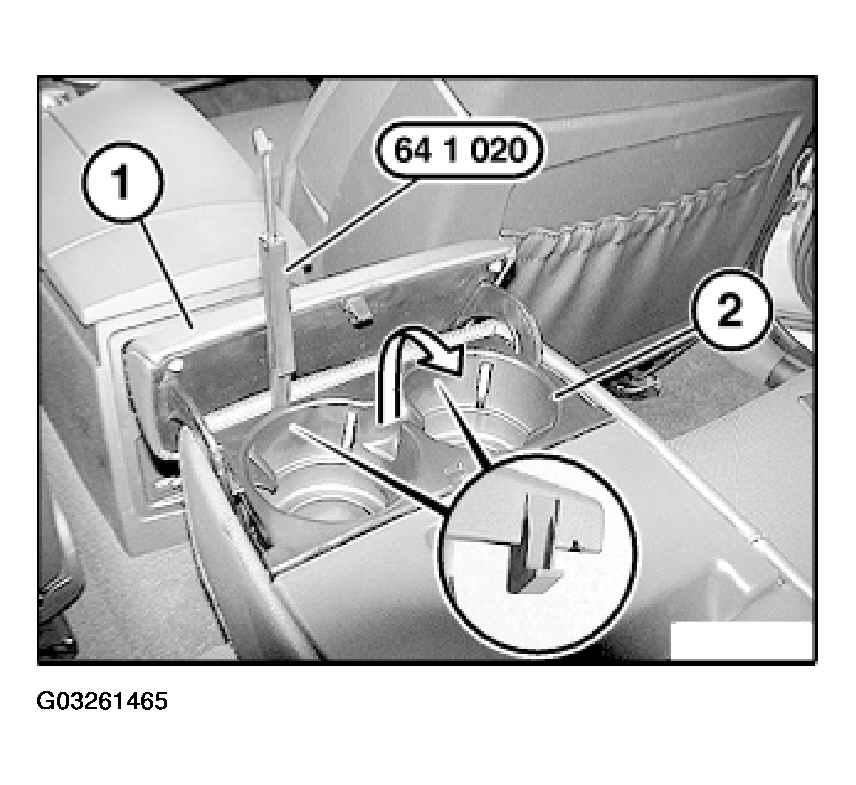

Open cover (1).
Lever out cup holder (2) in direction of arrow.
If necessary, unlock retaining lugs with special tool 64 1 020 .
