51 16 155 Replacing locator for front ashtray insert (up to 03/2007)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM FOR STORAGE COMPARTMENT
Remove FRESH-AIR GRILLE IN REAR CABIN

Lever out trim (1) on left/right at rear end and pull out of storage compartment (2) in direction of arrow.

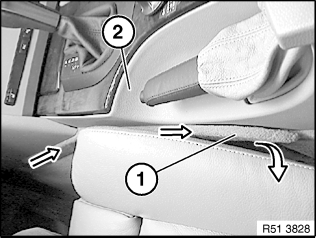

Fig 1: Identifying Trim And Storage Compartment

G00460779

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainers (1) and guide (2) on trim (3) must not be damaged.

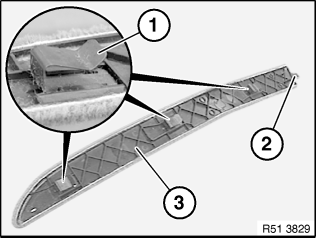

Fig 2: Identifying Retainers, Trim, And Guide

G00460780

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and pull storage compartment (2) towards rear slightly.

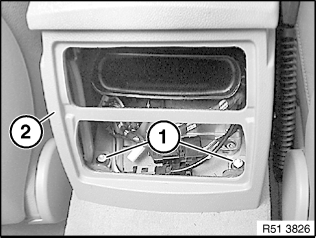

Fig 3: Identifying Storage Compartment And Nuts

G00460781

Courtesy of BMW OF NORTH AMERICA, INC.

Pull storage compartment back until plug connection (1) and screws (3) are accessible.

Disconnect plug connection (1) and detach plug from receptacle (2).

Release screws (3) and remove receptacle (2).

Installation:

Retainers (4) must not be damaged or missing.

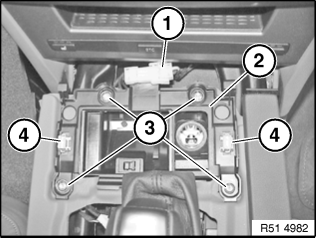

Fig 4: Identifying Plug Connection, Screws, Plug Receptacle, And Retainers

G00460782

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Do not damage guides (2) when feeding storage compartment (1) in.

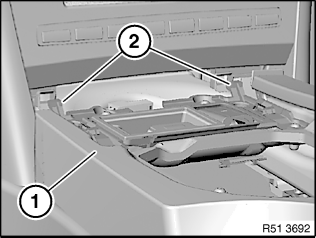

Fig 5: Identifying Storage Compartment And Guides

G00460783

Courtesy of BMW OF NORTH AMERICA, INC.
