51 16 080 Removing and installing or replacing sun visor and left or right counter support

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

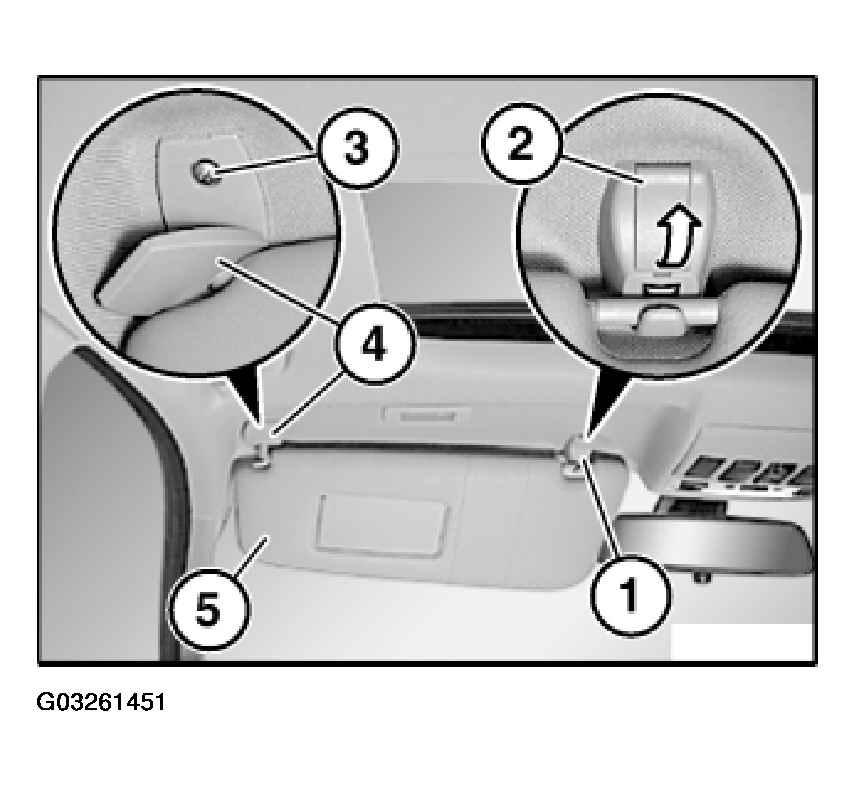

Fold down sun visor (5).

Lever out trim (2) on counter support (1) and release screw underneath.

Lever out cover (4) on joint and release screw (3).

Fig 1: Removing Trim On Counter Support

Courtesy of BMW OF NORTH AMERICA, INC.

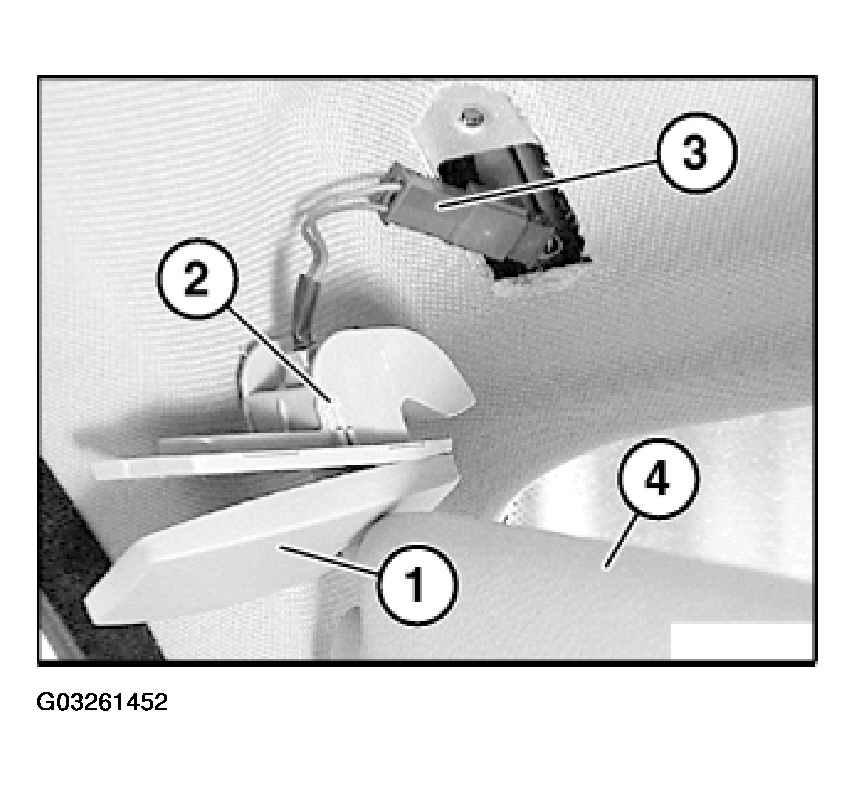

Lift out sun visor.

Pull out cable slightly and disconnect plug (3).

Installation:

Cover (2) or trim (1) must not be damaged.

Perform function check on lighting.

Fig 2: Removing Sun Visor

Courtesy of BMW OF NORTH AMERICA, INC.
