51 16 000 Removing and installing/replacing mirror on left or right front door (security)

Necessary preliminary tasks:

• Remove door trim panel. See TRIM PANEL (UP TO 03/2007)  or TRIM PANEL (LONG VERSION OR FROM 03/2007) .

Pull off speaker (1) towards front and disconnect.

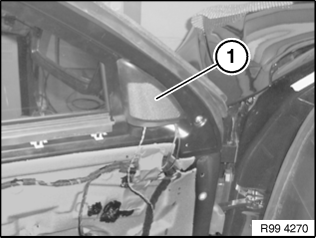

Fig 1: Identifying Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug-in connections (1) and (4).

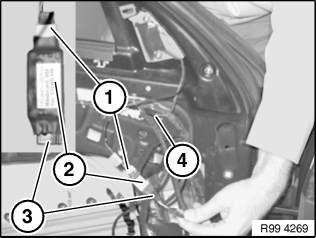

Fig 2: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Remove protective cover (1).

Feed out cable with mirror and remove.

Fabric adhesive tape (3)

Installation:

Tightening torque: see 1AZ in 51 16 MIRRORS, FINISHERS, ASHTRAYS, CONSOLES

Replacement only:

Due to the thread-tapping screws, the tightening torque of the new mirror is increased by 2 Nm.

Tightening torque: see 1AZ in 51 16 MIRRORS, FINISHERS, ASHTRAYS, CONSOLES

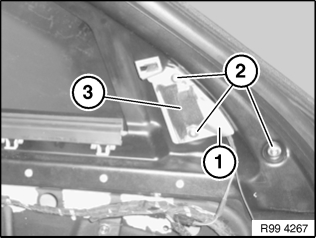

Fig 3: Identifying Screws And Protective Cover

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing molded foam section:

Cut bead (1) and corner edge (2) with universal knife (see next two work steps).

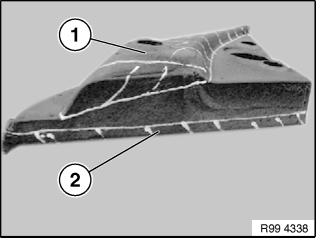

Fig 4: Identifying Bead And Corner Edge

Courtesy of BMW OF NORTH AMERICA, INC.

Bead (1) cut.

Fig 5: Identifying Trimmed Bead

Courtesy of BMW OF NORTH AMERICA, INC.

Cut corner edge (1).

A = 5 mm

B = 18 mm

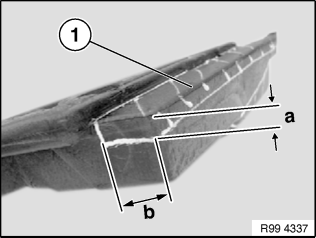

Fig 6: Identifying Corner Edge

Courtesy of BMW OF NORTH AMERICA, INC.

Corner edge (1) cut.

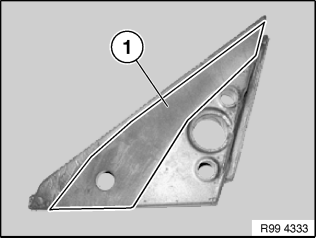

Fig 7: Identifying Trimmed Corner Edge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of mirror must not be damaged or missing:

• Fabric adhesive tape on protective cover
• Seal on mirror base plate
• Sound insulation in front door

Carry out function check of mirror and intercom system.
