51 71 373 Removing and installing/replacing tension strut on spring strut dome
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Vehicles must not be driven without their tension struts.
Driving without tension struts will result in bodywork damage.
Necessary preliminary tasks:
- Remove LOWER MICROFILTER HOUSING SECTION on left and right.

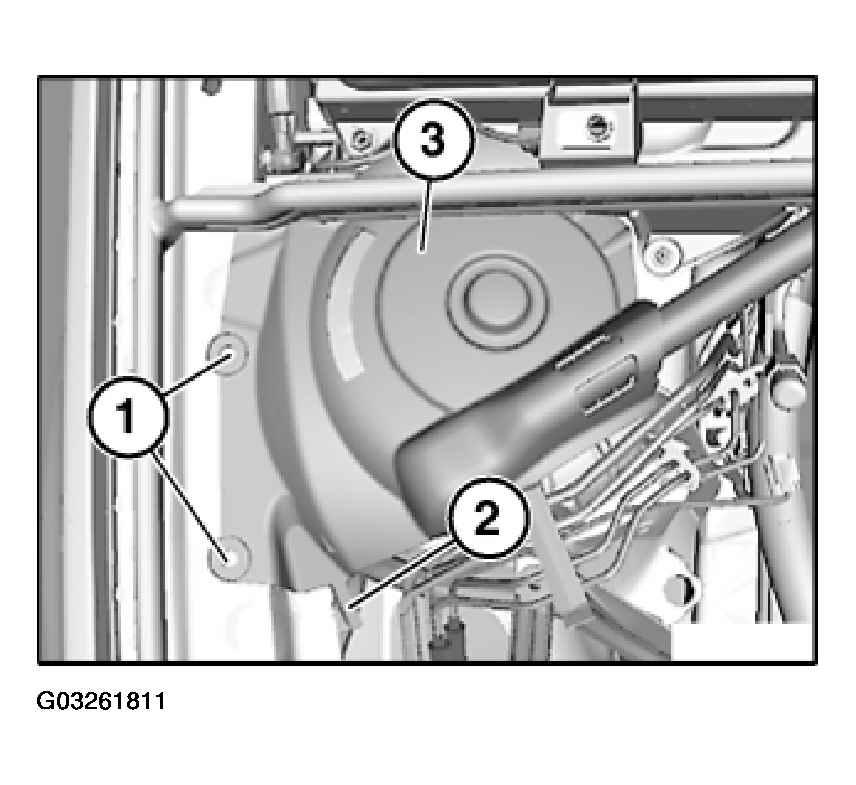

If necessary, remove cover on spring strut dome on left and right:
- Release expansion rivets (1)
- Remove cover (3),
- taking care not to damage retaining lug (2).

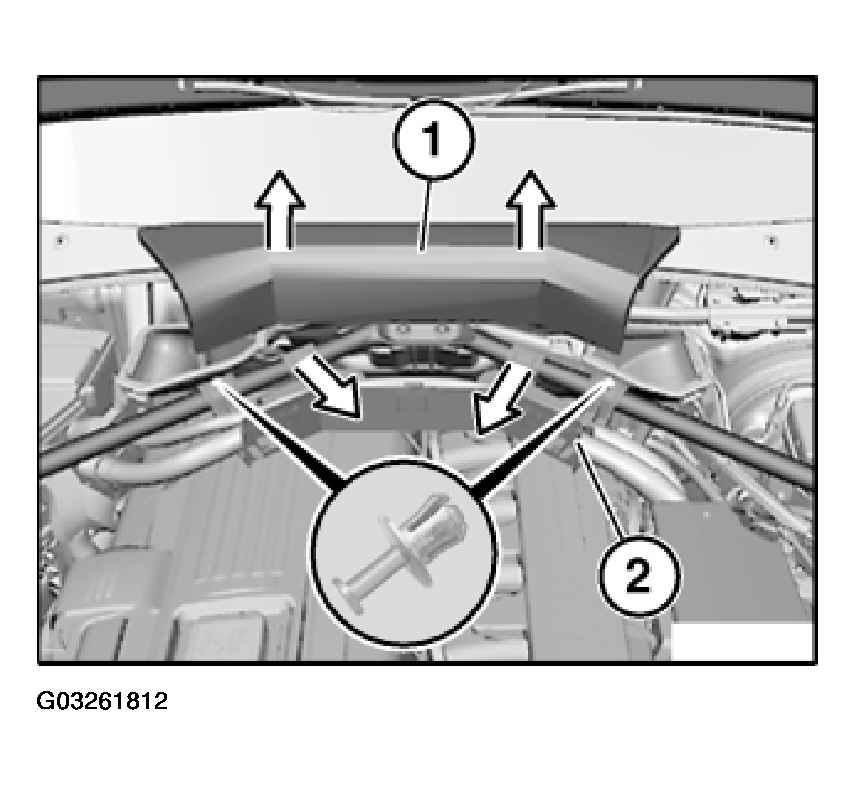

If necessary, remove tension strut panels:
- Release expansion rivets on panel (2).
- Remove panel (1) in direction of arrow.
IMPORTANT:
Modified screw connection!
Screws must be replaced and - because of the modified surface coating - tightened to increased torque!

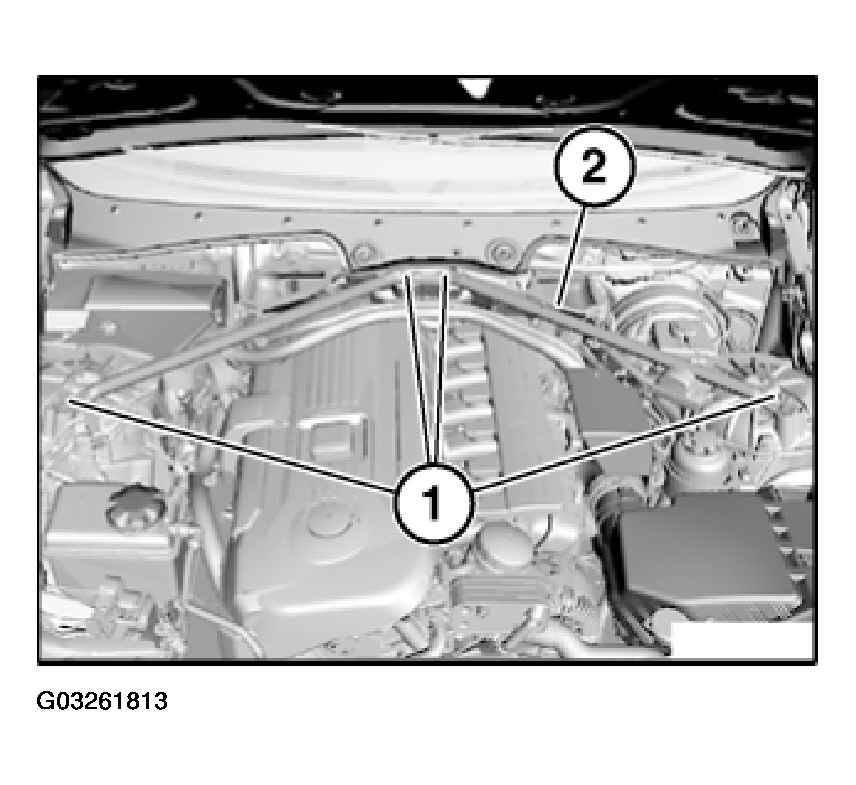

Release screws (1).
Remove tension strut (2).
Installation:
Tighten down self-tapping screws (2) to specified torque
Tightening torque: see 4AZ in 51 71 SEALS AND LOOSE BODY PARTS
