51 45 115 Removing and installing speaker frame on panel for instrument panel at top
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

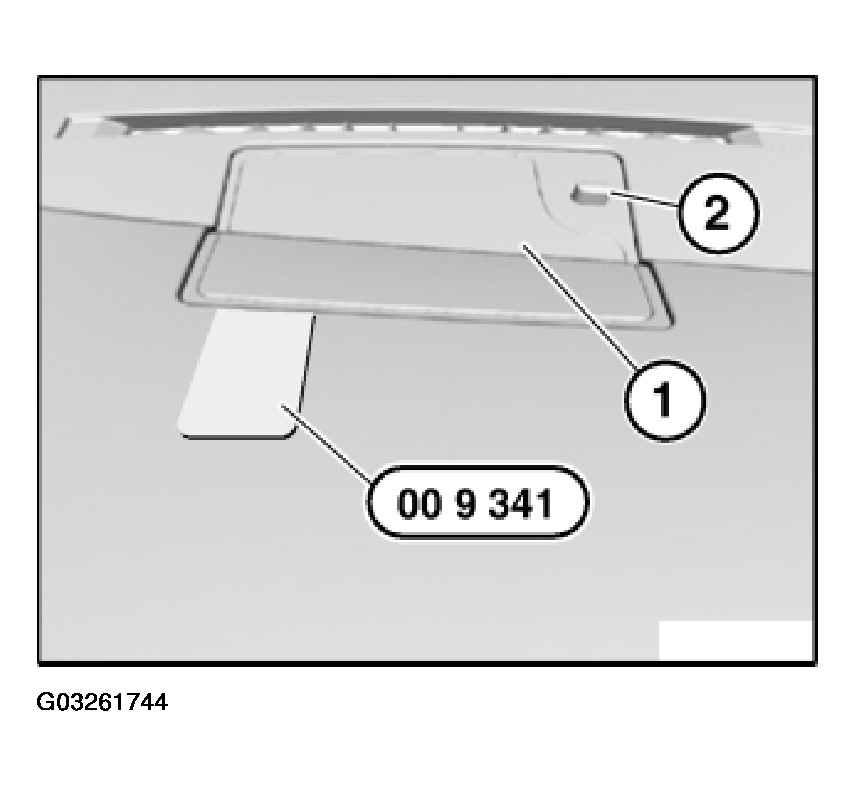

Carefully unclip speaker frame (1) with special tool 00 9 341 (removal aid).
Unlock and disconnect plug connection on solar sensor (2).
Remove speaker frame (1).
Installation:

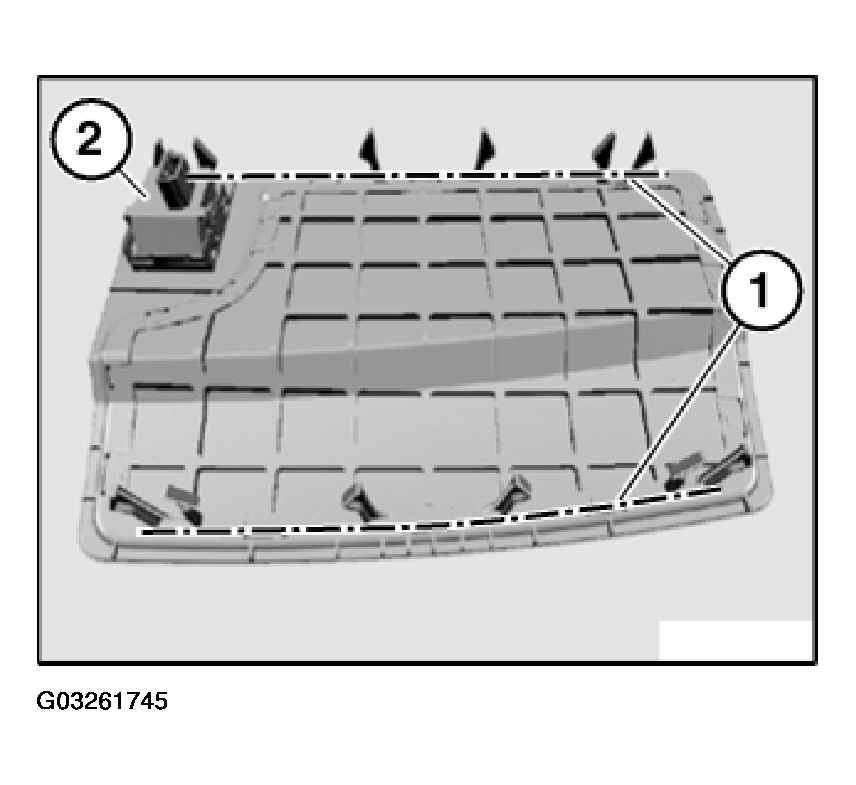

Locks (1) along lines must not be damaged.
Replacement:
Remove SOLAR SENSOR (2) .
