51 21 370 Removing and installing/replacing cover (seal) on front door at bottom left or right

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Detach cover (1) in direction of arrow from front door (2).

Installation:

Start clipping in cover (1) at rear (B-pillar) (risk of damage).

Clip clips of cover (1) correctly into bores (3).

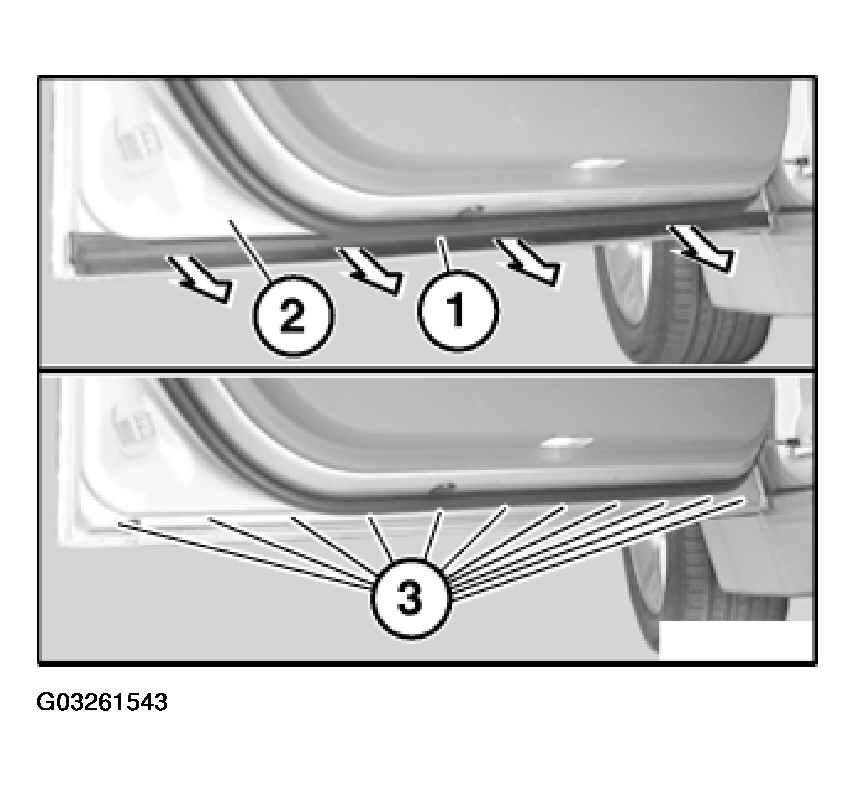

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) of cover (2) must not be damaged.

Cover (2) has an aluminum insert (3).

Only press on clips (1) when installing otherwise cover (2) will become uneven.

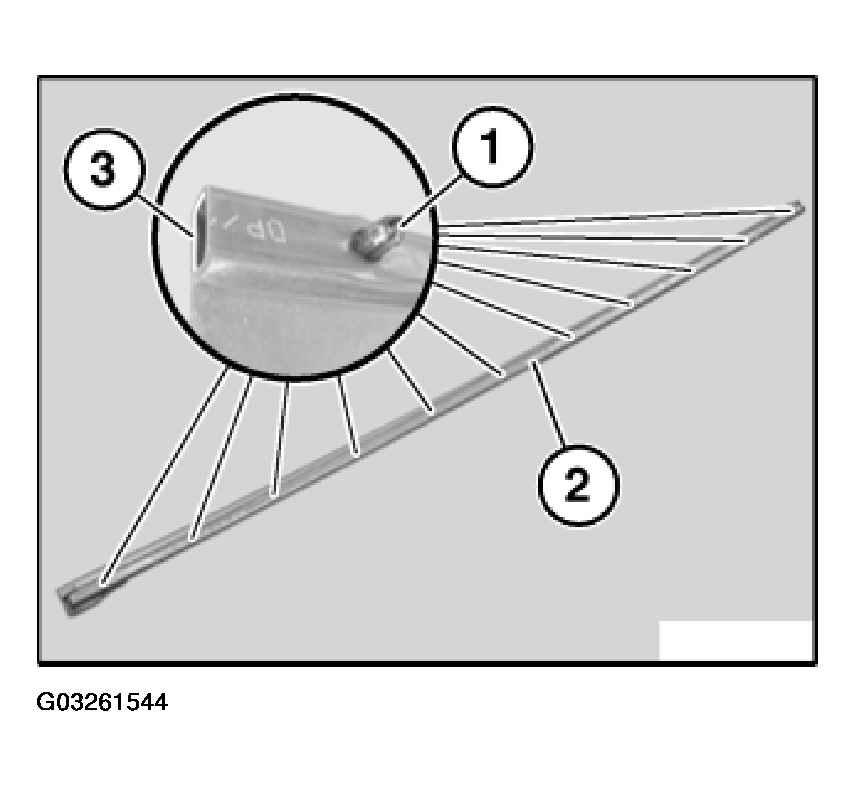

Fig 2: Installing Clips Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.
