51 21 330 Removing and installing/replacing window cavity cover strip on inner front door

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim. See TRIM PANEL (UP TO 03/2007) or TRIM PANEL (LONG VERSION OR FROM 03/2007) .

Lever out cover (1) at rear slightly.

Start at rear with removal of window cavity cover strip (2).

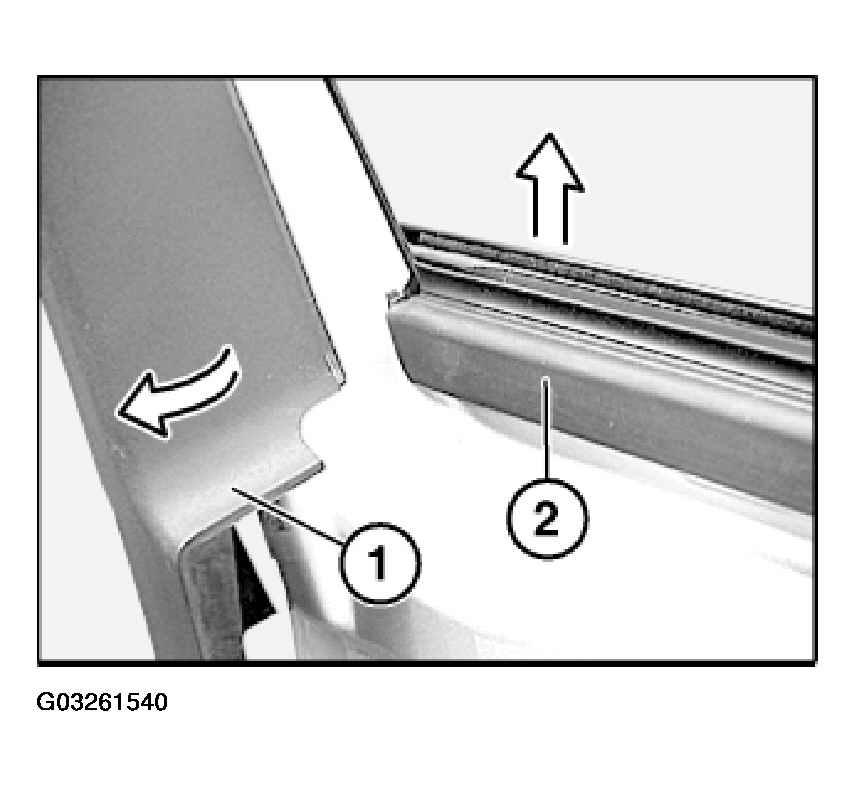

Fig 1: Removing Front Door Trim

G03261540

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off window cavity cover strip (1) towards top.

Replacement with Security version:

Cut window cavity cover strip (1) to length on B-pillar side to 680 mm.

Installation:

If necessary, replace faulty clips (3).

Insert window cavity cover strip (1) below cover (2).

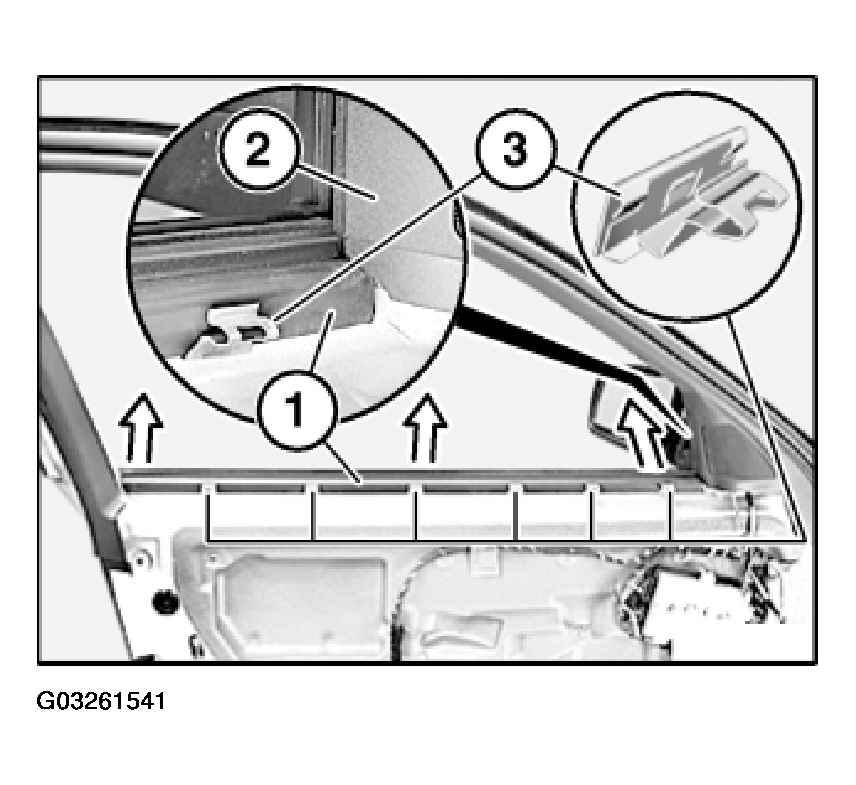

Fig 2: Inserting Window Cavity Cover Strip

G03261541

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat window cavity cover strip (1) with water before fitting.

Start with installation at front.

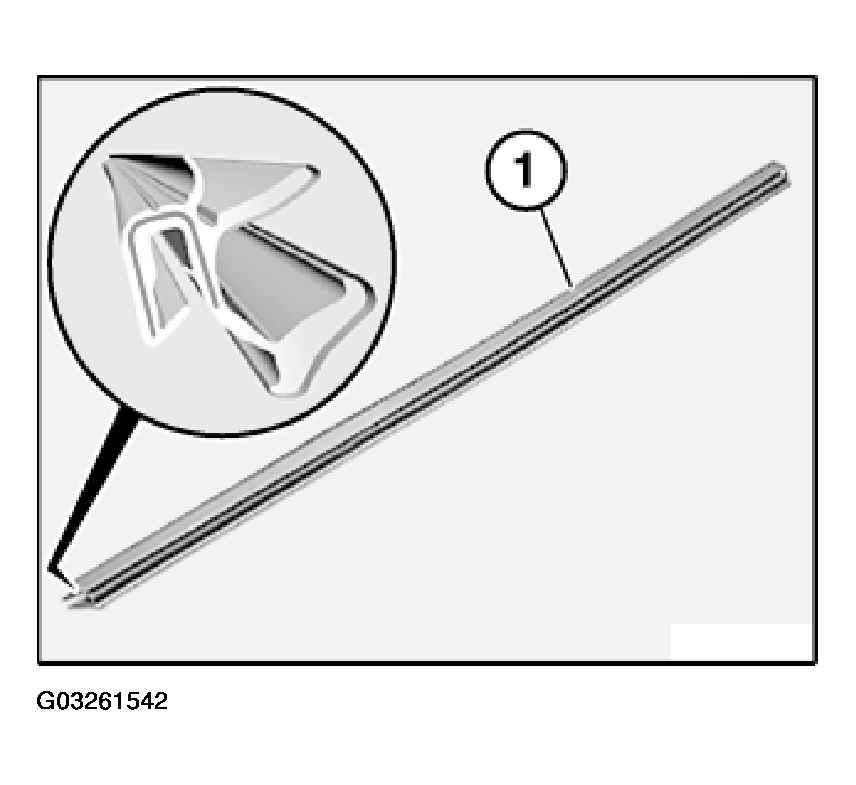

Fig 3: Installing Window Cavity Cover Strip

G03261542

Courtesy of BMW OF NORTH AMERICA, INC.
