51 21 300 Removing and installing or replacing window cavity cover strip on outside of left or right front door
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
If reusing the existing window cavity cover strip (1), make sure it is not bent.

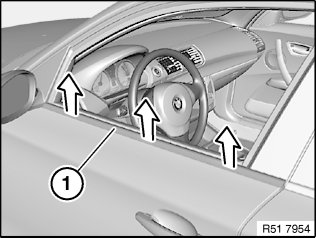

Lever out window cavity cover strip (1) with special tool 00 9 324 (starting at B-pillar).

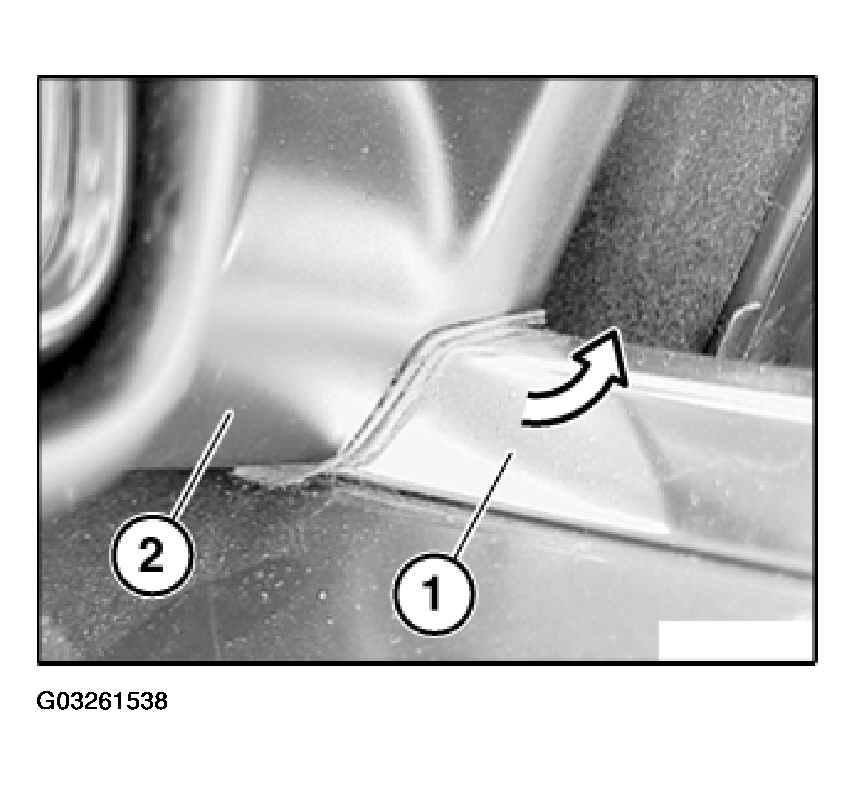

Pull window cavity cover strip (1) out of mirror (2) in direction of arrow.
Installation:
Coat window cavity cover strip (1) with water before fitting.
Window cavity cover strip (1) must be flush at rear to door edge.
Installation:
Seal (1) must be correctly fitted in chrome strip (2).
