51 21 225 Removing and installing or replacing inside door opener in left or right front door (up to 03/2007)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM .

Unhook Bowden cable for release lever:

Tighten release lever (1).
Lever out lock (2).
Detach Bowden cable (3) towards rear/top.

Installation:

For fitting, press release lever (1) fully onto door trim panel.

Fig 1: Detaching Bowden Cable Towards Rear/Top

G04752630

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1 and 2).

Remove retaining plate from door trim panel (4).

Installation:

Retaining plate must be positioned over pin (3).

Fig 2: Removing Retaining Plate From Door Trim Panel

G03261523

Courtesy of BMW OF NORTH AMERICA, INC.

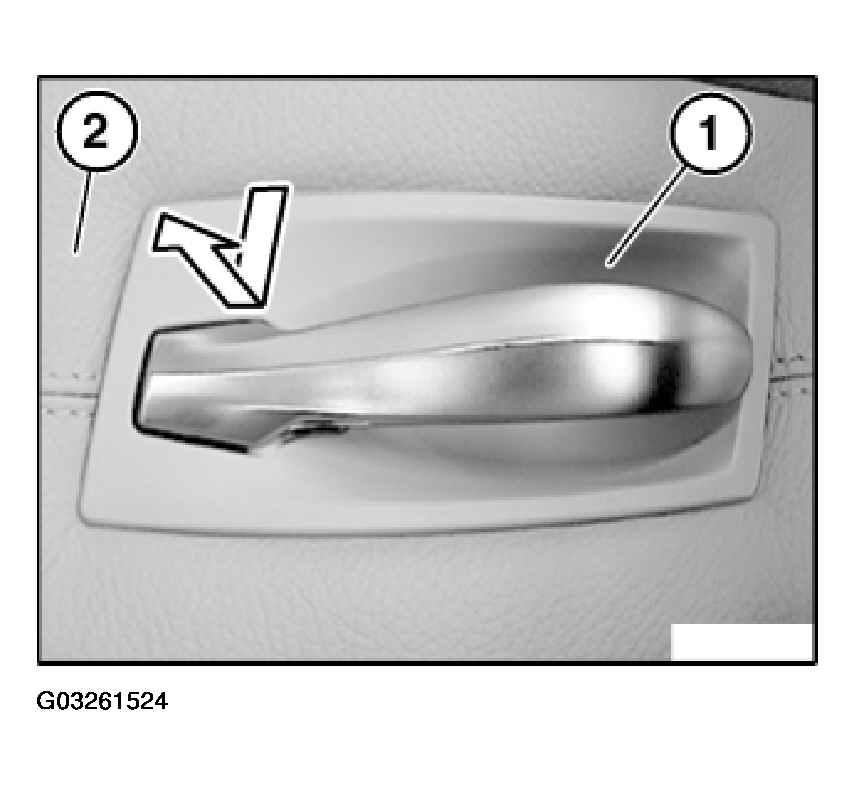

Lever door opener (1) in direction of arrow out of door trim panel (2).

Fig 3: Identifying Lever Door Opener

G03261524

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

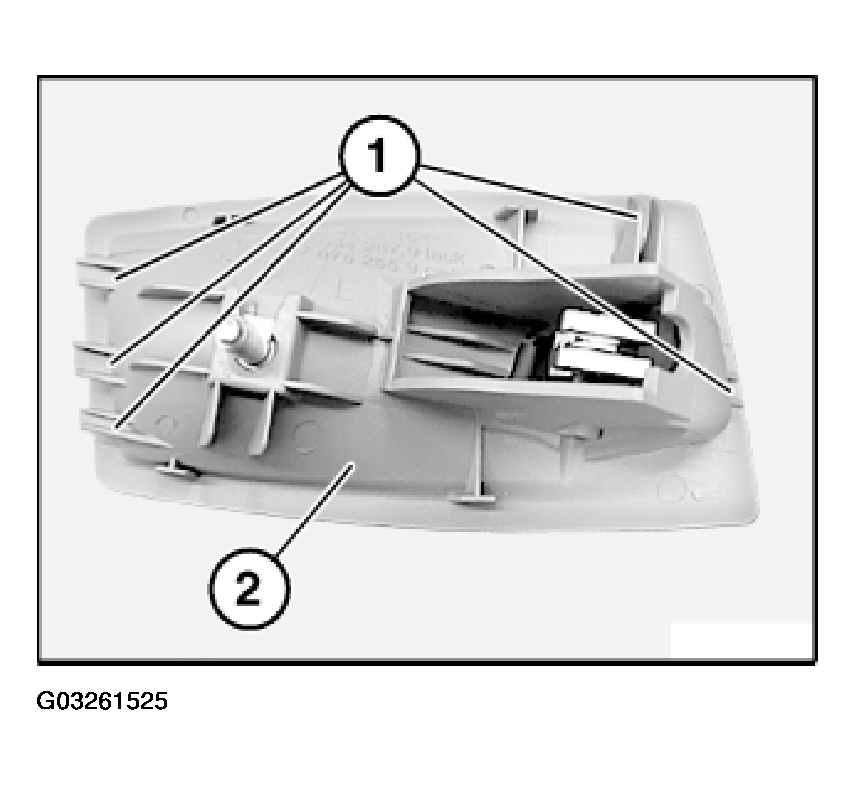

Fixtures (1) on door opener (2) must not be damaged.

Fig 4: Installing Door Opener

G03261525

Courtesy of BMW OF NORTH AMERICA, INC.
