51 21 125 Removing and installing/replacing carrier for left or right outside door handle with lock cylinder (security)

Necessary preliminary tasks:

• Remove DOOR WINDOW GLASS
• Remove POWER WINDOW UNIT
• Remove COVER ON OUTSIDE HANDLE
• Disconnect BOWDEN CABLE FROM DOOR LOCK

Driver's side only:

• Remove DOOR LOCK  on front door

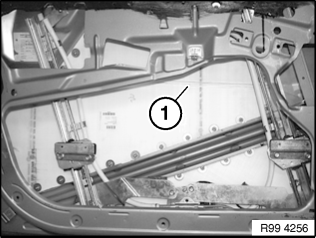

Remove protective mat upper section (1).

Tightening torque: see 22AZ in 51 71 SEALS AND LOOSE BODY PARTS

Installation:

Shims for fastening protective mat must not jam between screw-in sleeve and screw head.

Fig 1: Identifying Protective Mat Upper Section

Courtesy of BMW OF NORTH AMERICA, INC.

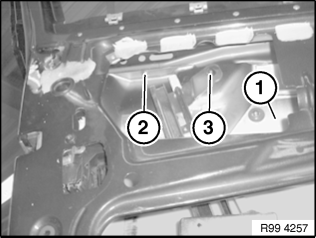

Remove inner door lock protective cover (1), release screws (2) and (3) to do so.

Tightening torque: see 22AZ in 51 71 SEALS AND LOOSE BODY PARTS

Fig 2: Identifying Inner Door Lock Protective Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

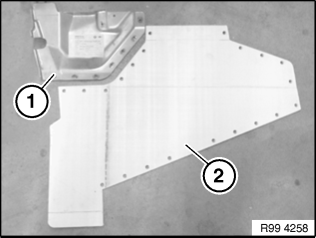

Overview of removed door lock protective cover (1) and protective mat upper section (2).

Fig 3: Overview Of Removed Door Lock Protective Cover (1) And Protective Mat Upper Section (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catches (2) on carrier (1).

Press lock cylinder (5) behind door outer skin (3).

Fig 4: Identifying Catches, Carrier, Lock Cylinder And Door Outer Skin

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect plug on CA module.

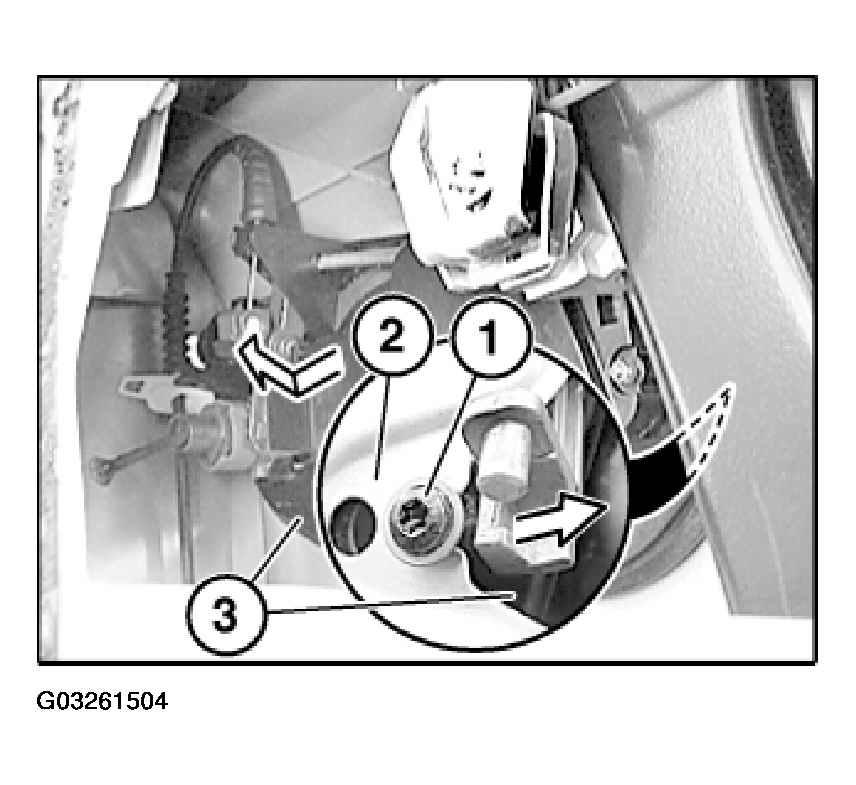

Pull carrier (3) towards rear/top until screw (1) of sheet metal slot (2) is free.

Remove carrier (3) for outside door handle.

Fig 5: Removing Carrier For Outside Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seals (1) on carrier (3) must not be damaged.

Fig 6: Identifying Seals, Carrier & Water Drainage Channel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• Remove lock cylinder completely from front door
• Remove BOWDEN CABLE FOR OUTSIDE DOOR HANDLE ON FRONT DOOR

Version with Comfort Access/CA:

• Carry out PROGRAMMING/ CODING
