51 11 180 Removing and installing/replacing grille in bumper trim (M5 or M aerodynamic kit)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT BUMPER TRIM .

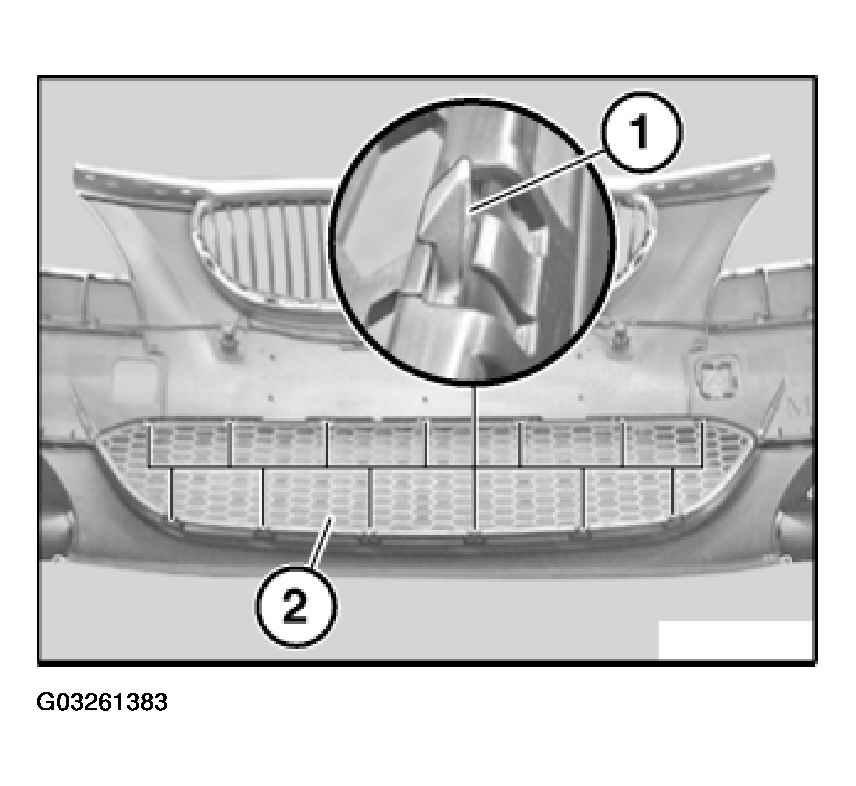

Release catches (1).
Remove trim grill (2).
Installation:
Retaining elements must not be damaged.
Grill must snap securely into place.
