51 11 050 Removing and installing / replacing carrier for front bumper trim
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT BUMPER TRIM

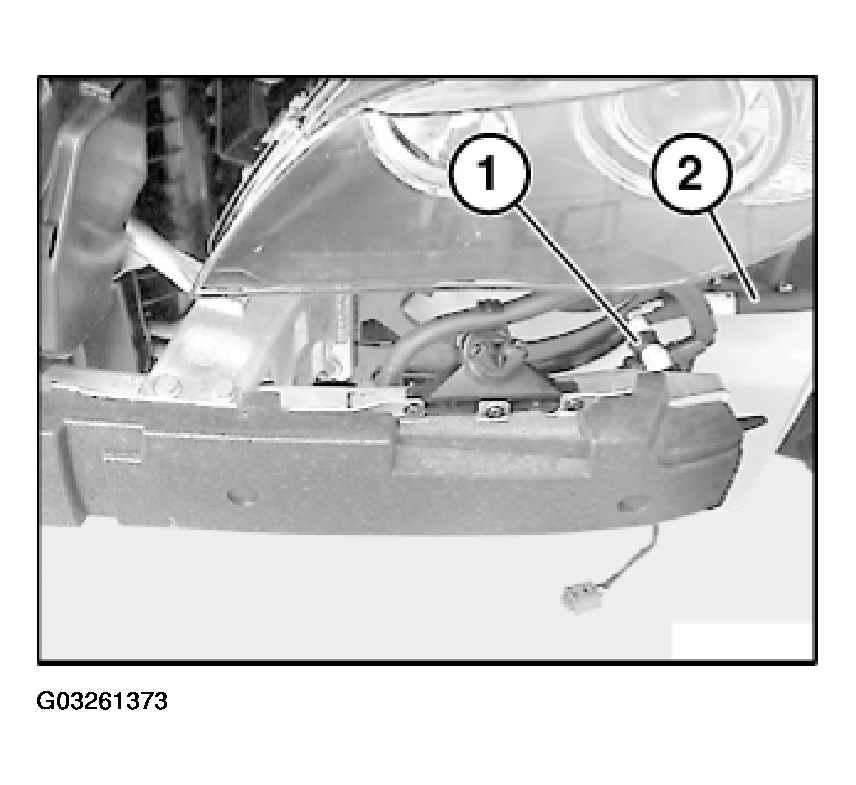

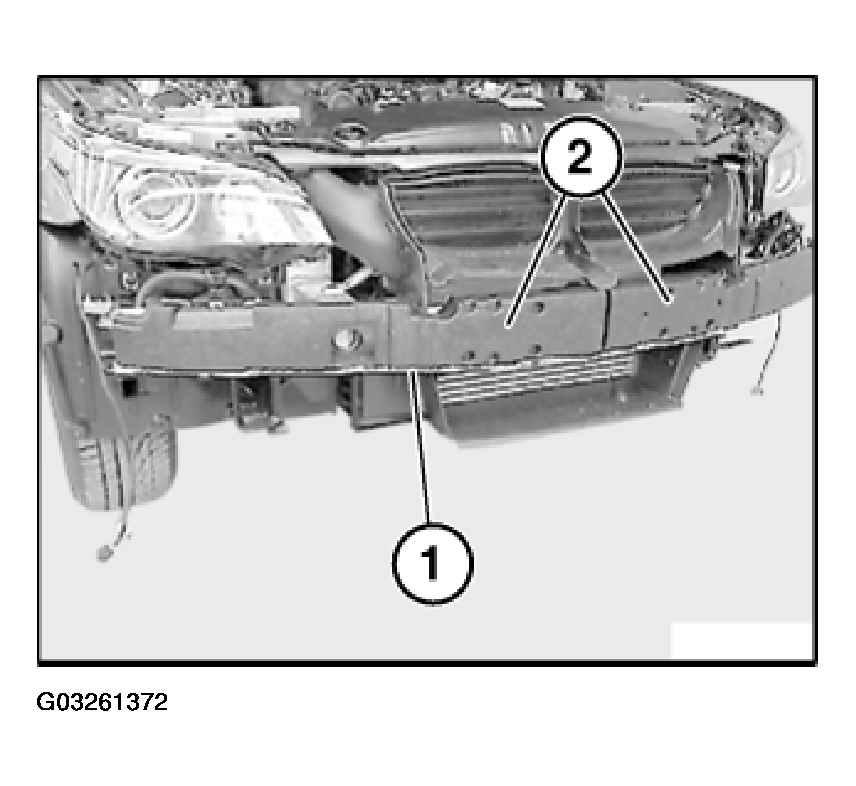

Detach wiring harness (1) from impact absorber (2).
Version with ACC:
If necessary, remove ACC SENSOR .
Version with headlight washer system:
If necessary, disconnect line (2) on right from washer fluid reservoir coming from T-distributor (1).
IMPORTANT:
Carrier must not be separated from deformation elements.
NOTE:
The operation is described on the left side; proceed in the same way for the right side.

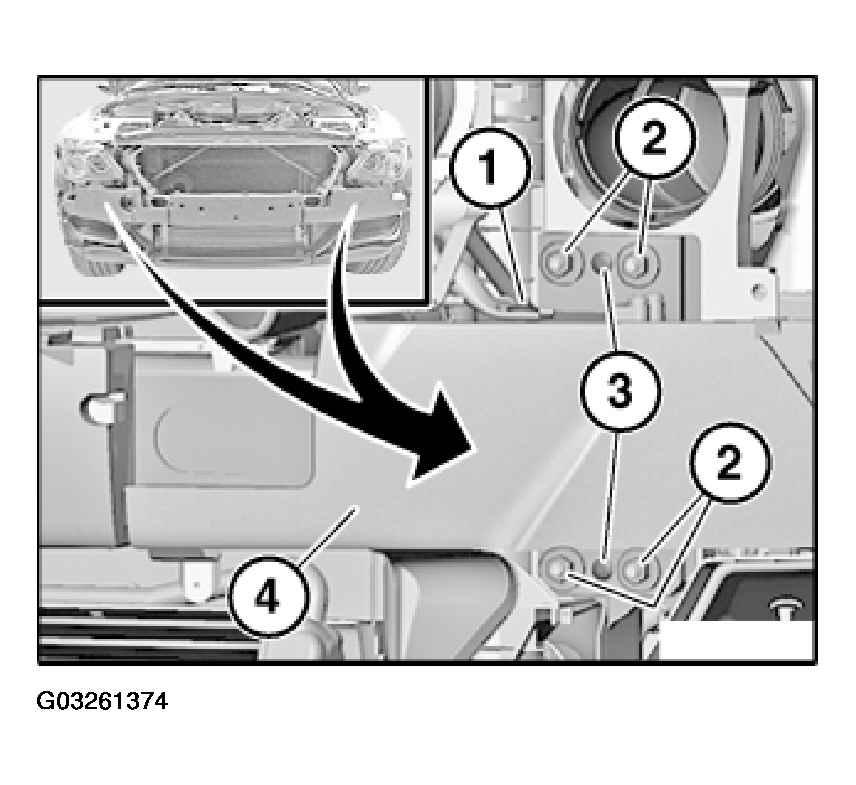

Release screw (1).
If necessary, drill out rivets (3).
Release screws (2).
Remove carrier (4) with deformation element towards front.
Installation:
If necessary, use screws and locking pins (instead of rivets) to secure deformation element.
Tightening torque: 21 Nm
Replacement:
- Remove impact absorber
Depending on version:
- Remove both ACCELERATION SENSORS
- Remove both HIGH-PRESSURE NOZZLES FOR HEADLIGHT WASHER SYSTEM
- Remove NIGHT VISION CAMERA
- Remove bracket for ACC sensor
- If necessary, remove both NEAR RANGE SENSORS
