51 47 312 Replacing footrest for front passenger compartment

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL ASSEMBLY .

NOTE:

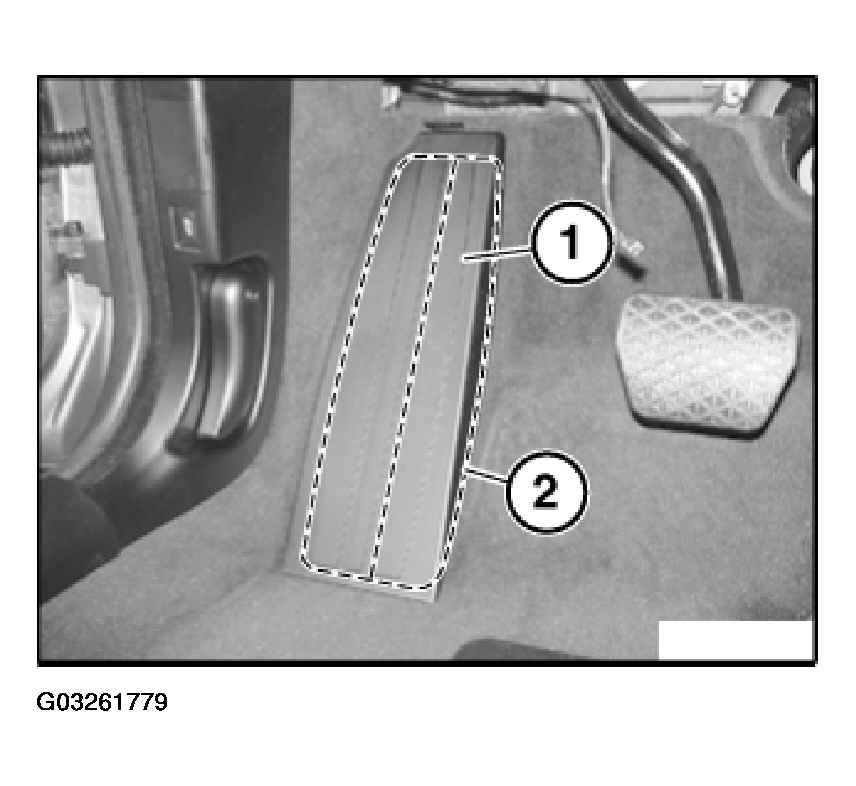

Footrest (1) is glued to carpet along line (2).

Adhesive bead must remain on carpet (risk of damage).

Heat footrest (1) with hot air blower and thereby release adhesive bead from footrest (1).

If necessary, place footrest (1) under tension with assembly wedge and pull off in inward direction while applying heat.

Fig 1: Placing Footrest Under Tension With Assembly Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

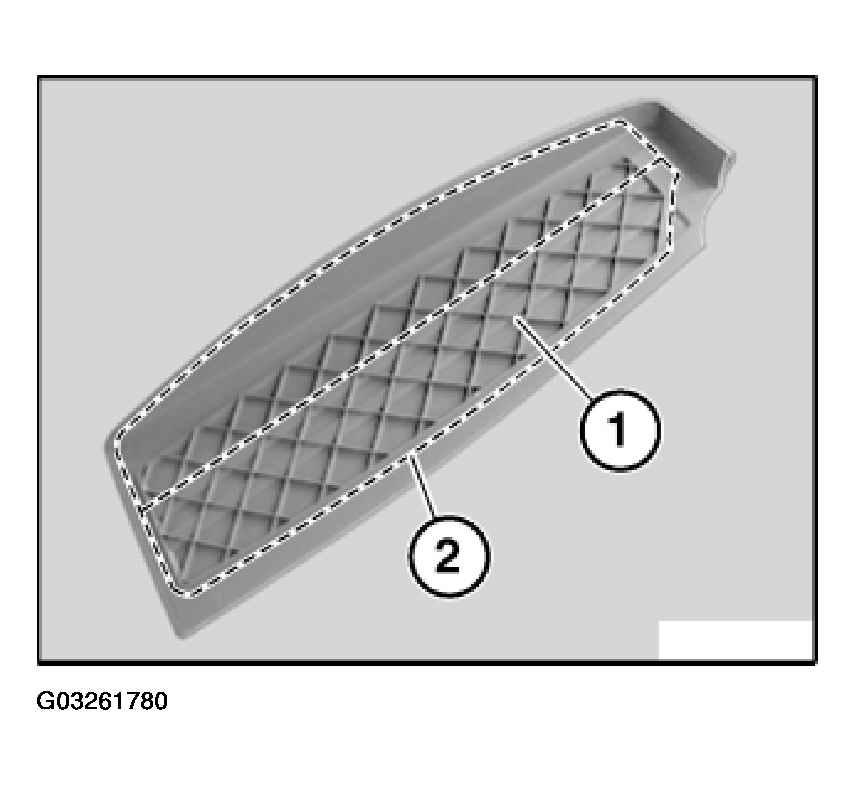

Heat footrest (1) with hot air blower and apply adhesive bead along line (1) with hot-melt adhesive gun.

Place footrest (1) on carpet and stick on.

Fig 2: Placing Footrest On Carpet

Courtesy of BMW OF NORTH AMERICA, INC.
