51 47 305 Removing and installing/replacing stowage net in front footwell

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Build date up to 08/2005:

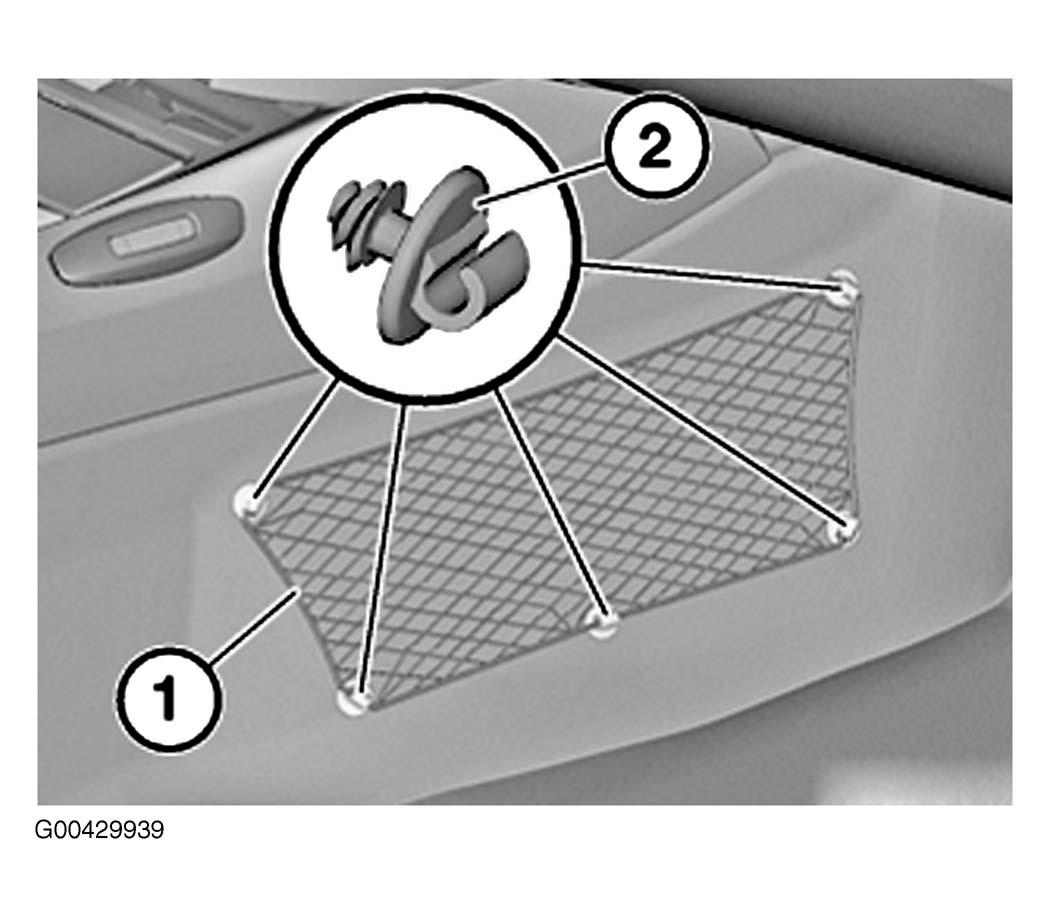

Detach stowage net (1) from holder (2) and remove.

If necessary, replace faulty holders (2).

Fig 1: Detaching Stowage Net From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Build date from 09/2005:

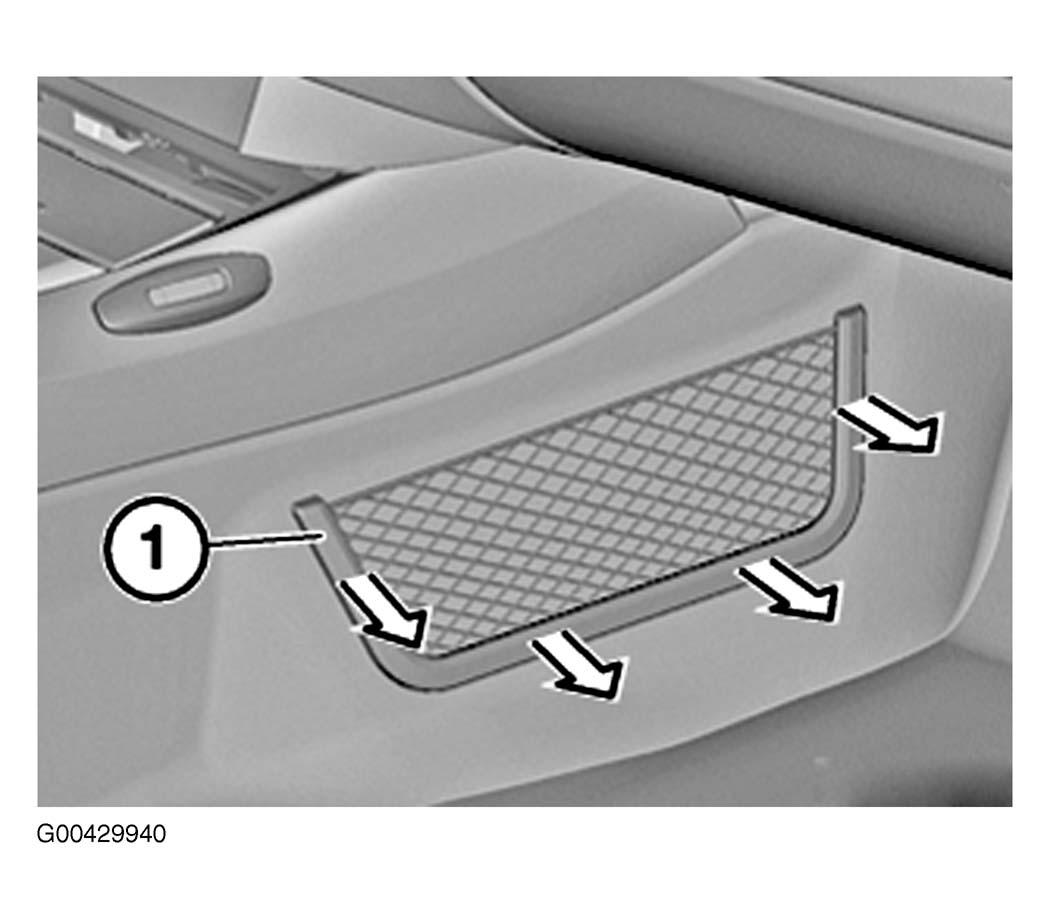

Snap out stowage net (1) with special tool 00 9 317 in direction of arrow and remove.

Installation:

Position stowage net (1) by means of insert retainers and press into place until it can be heard to engage.

Fig 2: Snapping Out Stowage Net

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

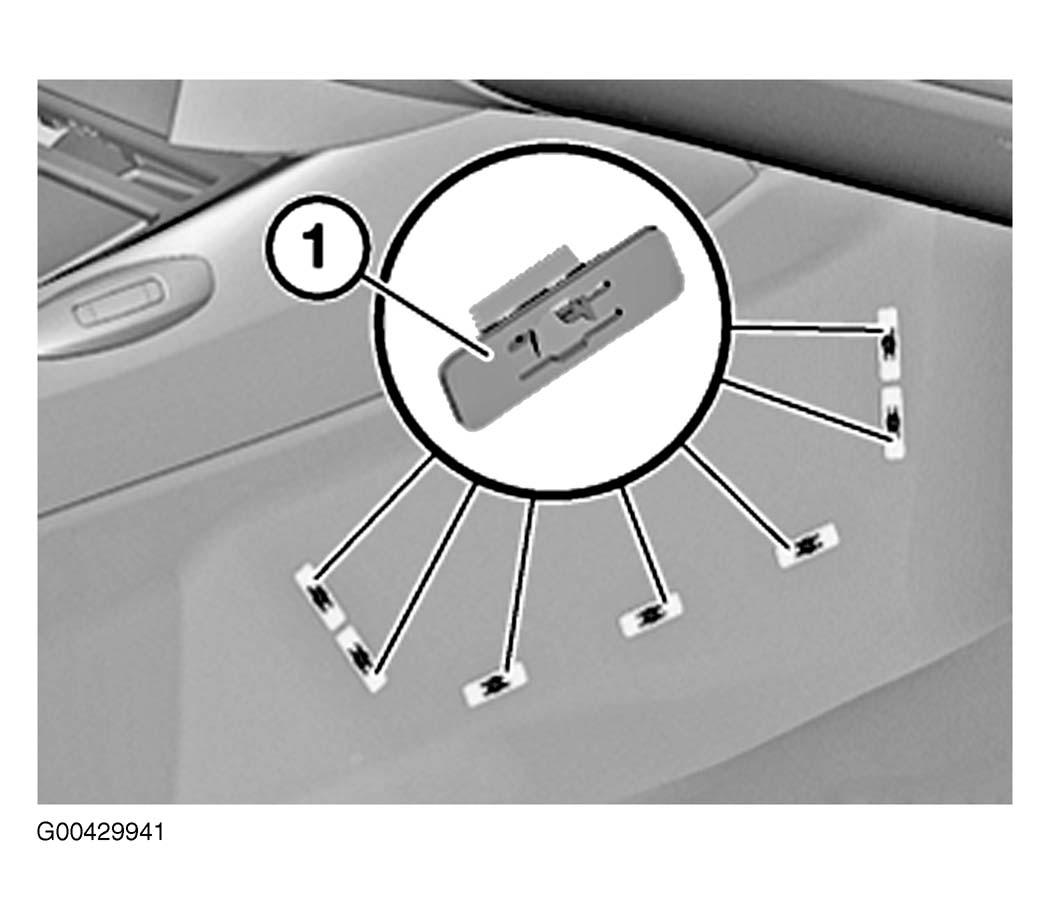

Replace all insert retainers (1).

Fig 3: Identifying Insert Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
