51 47 030 Removing and installing/replacing rear (inside) left or right entrance cover strip (security)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR SEAT .

Release screw (1) on entrance cover strip (2).

Attach special tool 00 9 341 at front under entrance cover strip (2).

Pull out entrance cover strip (2) forwards/downwards.

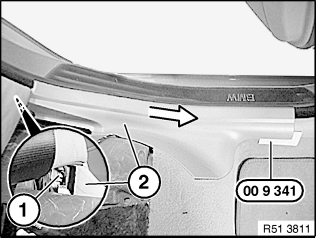

Fig 1: Identifying Entrance Cover Strip, Screws, And Special Tool 00 9 341

G00460318

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out clips (1) with pliers (head of pliers surface-ground).

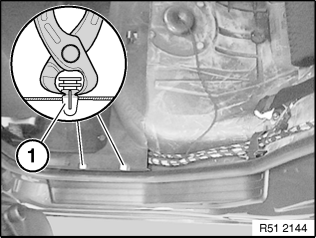

Fig 2: Levering Out Clips With Pliers

G00460319

Courtesy of BMW OF NORTH AMERICA, INC.

Cover strip is modified, new component changed.

Clips (1) are cut (see following work steps).

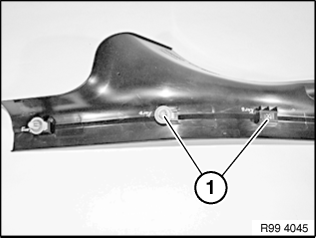

Fig 3: Identifying Clips To Cut On Cover Strip

G00460320

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing clips:

Cut clip in area (1) and rib (2).

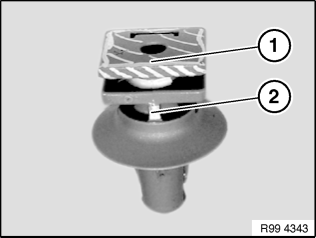

Fig 4: Identifying Area To Cut On Clip

G00460321

Courtesy of BMW OF NORTH AMERICA, INC.

Clip (1) cut.

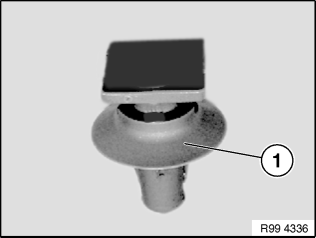

Fig 5: Identifying Cut Clip

G00460322

Courtesy of BMW OF NORTH AMERICA, INC.

Push clips (2) onto entrance cover strip (1).

Installation:

Following parts of entrance cover strip (1) must not be damaged or missing:

2 Clips

3 Retaining lug

4 Guides for clips

5 Bore

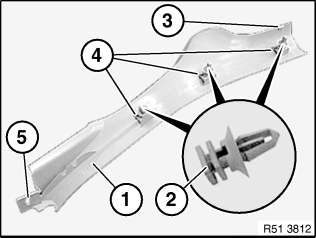

Fig 6: Identifying Entrance Cover Strip, Retaining Lug, Clips, Guides For Clips, And Bore

G00460323

Courtesy of BMW OF NORTH AMERICA, INC.
