51 37 000 Removing and installing complete rear left or right power window unit

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR WINDOW GLASS .

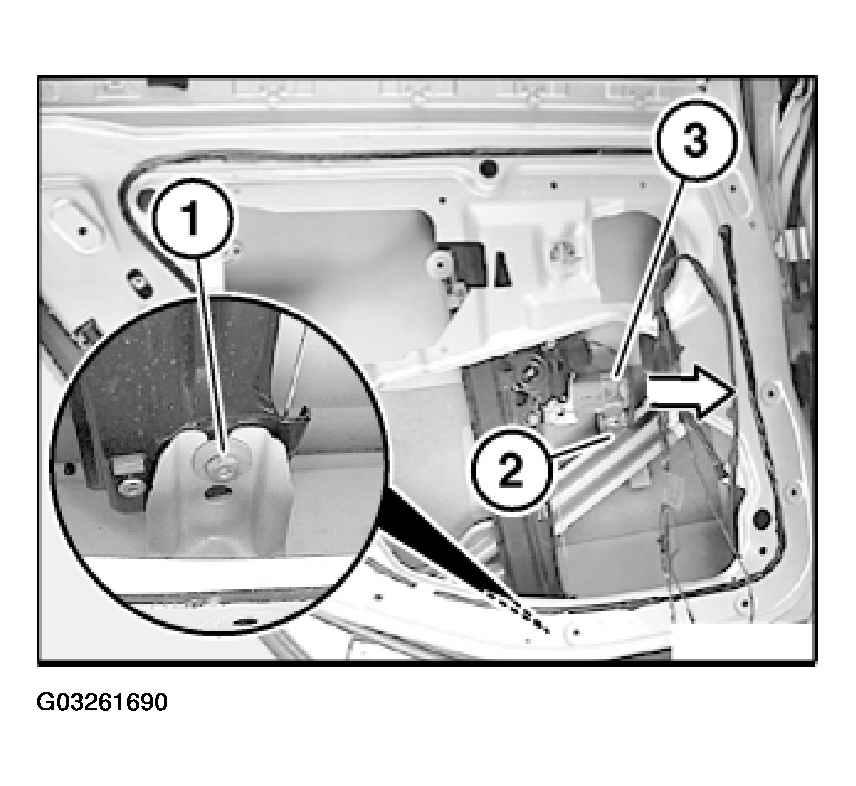

Slacken screws (1 and 2) (do not release).

Remove clamp (3) in direction of arrow.

Installation:

Tightening torque: see 2AZ in 51 35 POWER WINDOWS, REAR .

Fig 1: Removing Rear Door Window Glass

G03261690

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

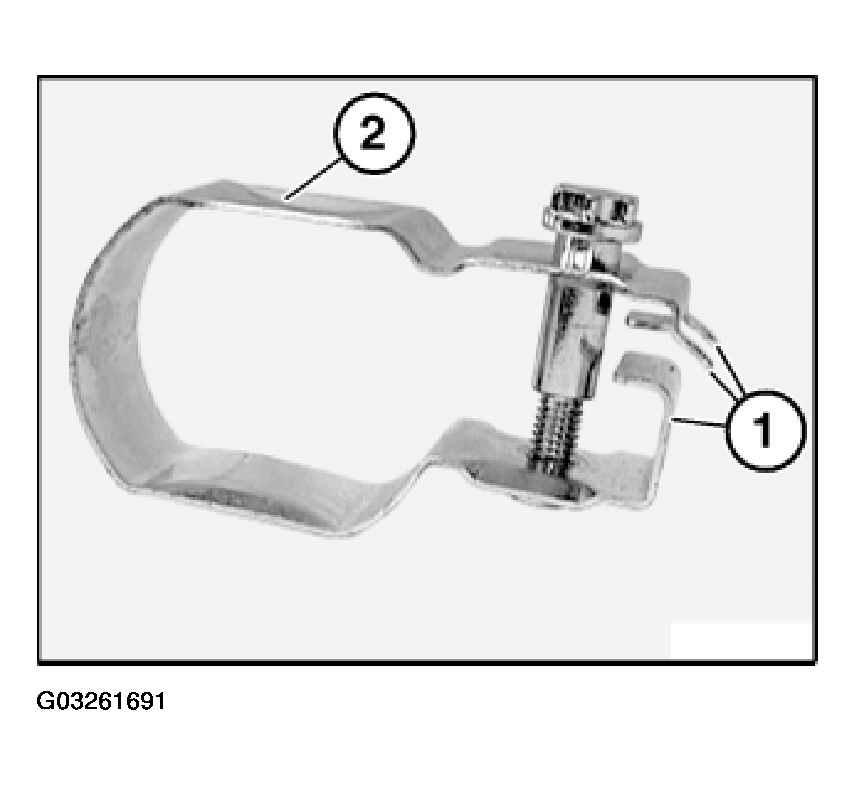

Make sure guide (1) is correctly seated when fitting clamp (2).

Fig 2: Installing Guide

G03261691

Courtesy of BMW OF NORTH AMERICA, INC.

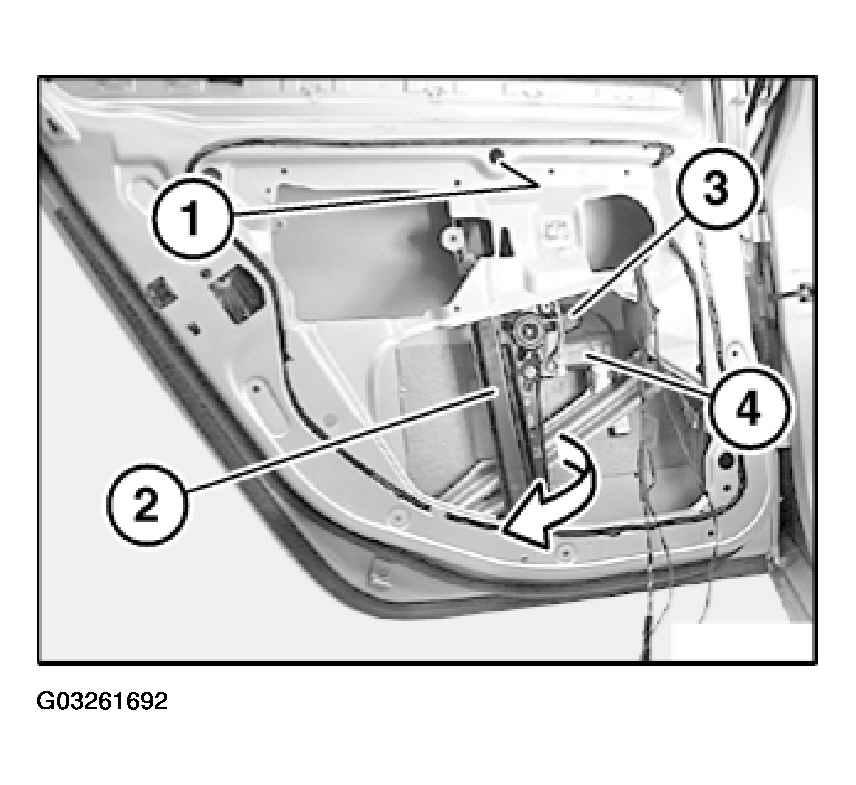

Release screw on power window unit (2) through bore (1).

Disconnect plug connection (3) from drive (4).

Feed power window unit (2) in direction of arrow out of inner door panel.

Fig 3: Disconnecting Plug Connection From Drive

G03261692

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

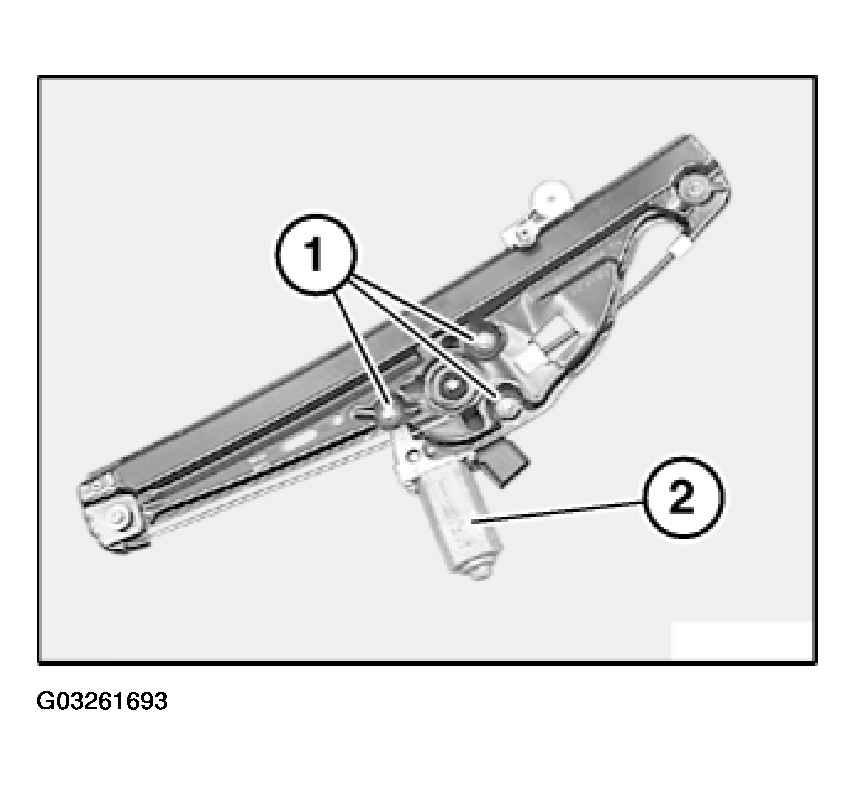

Release screws (1) and detach flat motor (2).

Installation:

Tightening torque: see 1AZ in 51 35 POWER WINDOWS, REAR .

Fig 4: Removing Screws And Detach Flat Motor

G03261693

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

The power window unit must be RE-INITIALIZED after it has been installed.
