17 21 500 Flushing transmission oil cooler with lines (automatic transmission) (GA6HP19Z, GAHP26Z, GA6HP32Z)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: Carry out the work steps listed when:
Installing a new or replacement transmission.

Procedure:

Automatic transmission removed.

Connect appropriate adapters (see description below) to oil lines exiting from automatic transmission.

Connect connecting line 17 2 019 from the oil collection unit with the quick-release coupling.

Connect drain line 17 2 018 using quick-release coupling.

Hold and direct open end of drain line into a suitable drip tray.

Using oil collection unit, flush approx. 1 liter of transmission fluid (refer to BMW Service OPERATING FLUIDS ) through oil lines and transmission oil cooler.

Reposition quick-release couplings.

Flush oil lines/transmission oil cooler in opposite direction with approx. 1 liter of transmission fluid (refer to BMW Service OPERATING FLUIDS ).

Disconnect quick-release couplings.

Remove adapter.

NOTE: Dispose of flushing oil correctly.
Do not reuse under any circumstances.

Press hydraulic lines (1) into adapters (2).

Slide clamping bar (3) into guides and secure with screw (4).

Fig 1: Identifying Hydraulic Lines, Adapters, Clamping Bar And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

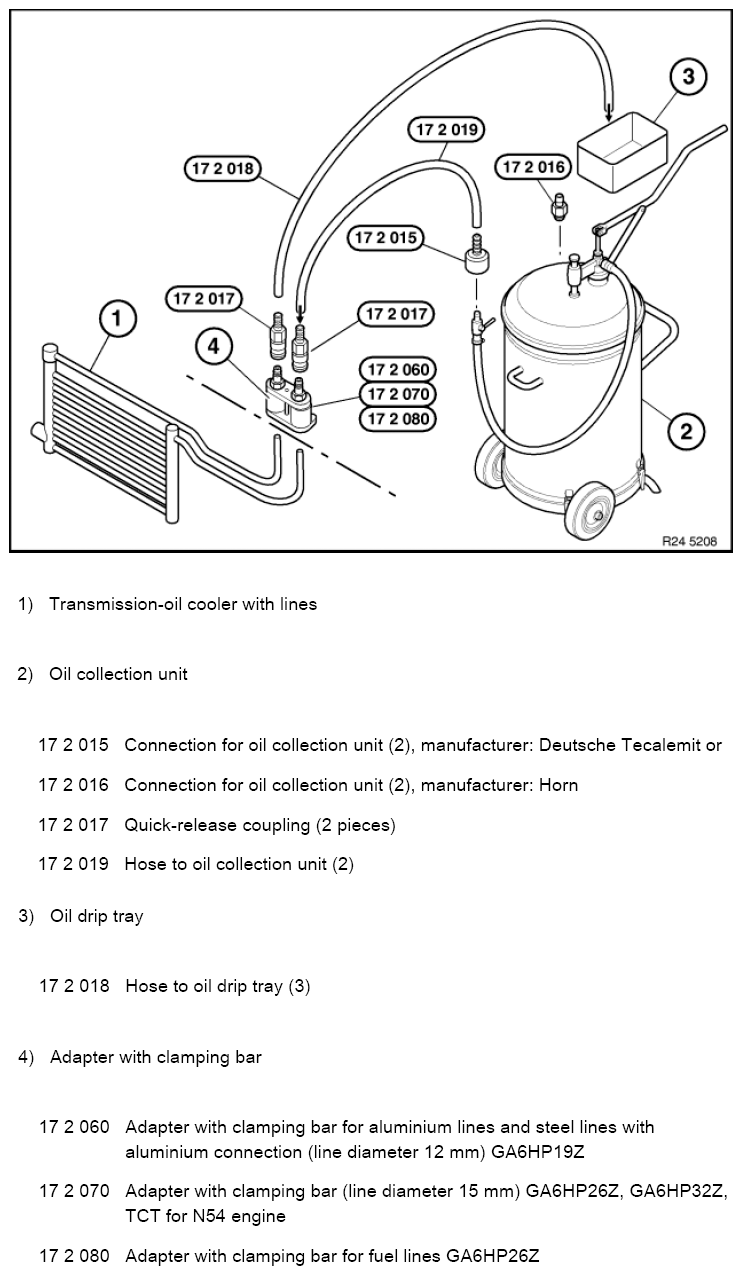

Arrangement of flushing apparatus for transmissions GA6HP19Z, GA6HP26Z, GA6HP32Z

Fig 2: Identifying Flushing Apparatus For Transmissions Arrangement Components

Courtesy of BMW OF NORTH AMERICA, INC.
