17 11 035 Removing and installing/replacing fan cowl with electric fan (N47 D16/20 K/U/O/T 1)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Switch off ignition.
Remove intake silencer housing See 13 71 000 REMOVING AND INSTALLING/REPLACING INTAKE SILENCER HOUSING (N47 D16/20 K/U/O/T 1) or 13 71 000 REMOVING AND REFITTING/REPLACING INTAKE FILTER HOUSING (N47 D20 O 1 WITH SCR) .

Unlock and pull off connector (1) and unclip cable from fan cowl.

Unlock catch (2).

Release screw (3).

Tightening torque 17 10 1AZ .

Feed out fan cowl upwards and remove.

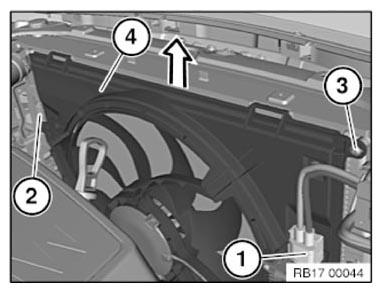

Fig 1: Removing Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure fan cowl (1) and holder (2) are in correct installation position.

Fig 2: Identifying Fan Cowl And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages.
Clear diagnostic fault entries from fault memory.
