Necessary Preliminary Tasks

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Check wheel bearings. See AXLE SHAFT WHEEL BEARING .

Lift vehicle. See LIFTING VEHICLE WITH A LIFTING PLATFORM

Check wheel with special tool 36 1 030 (measuring fixture) for lateral runout.

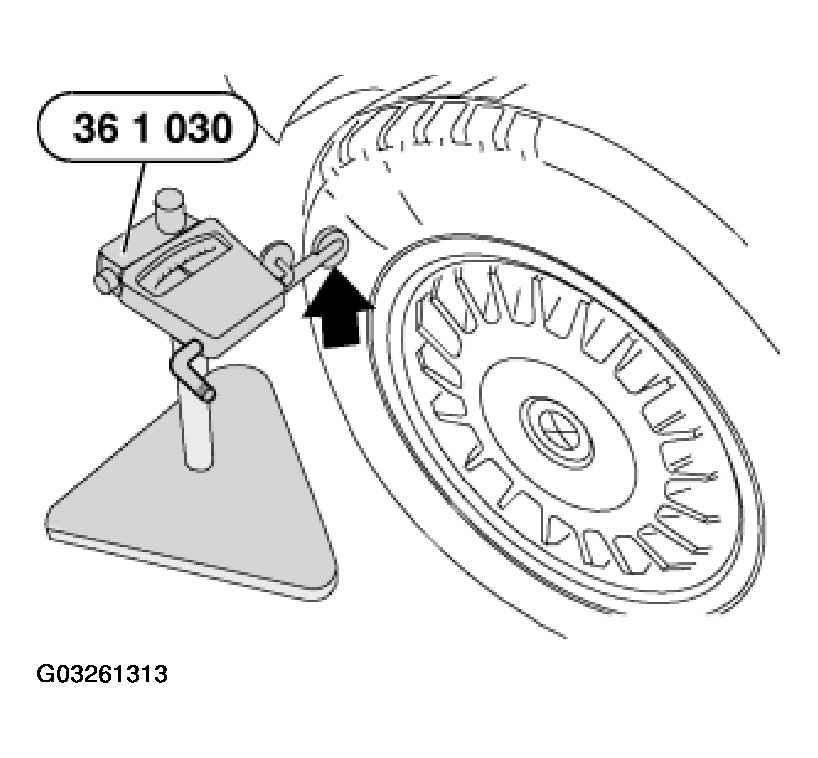

Fig 1: Checking Lateral Runout Of Wheel With Special Tool 36 1 030

Courtesy of BMW OF NORTH AMERICA, INC.

Check wheel with special tool 36 1 030 (measuring fixture) for radial runout.

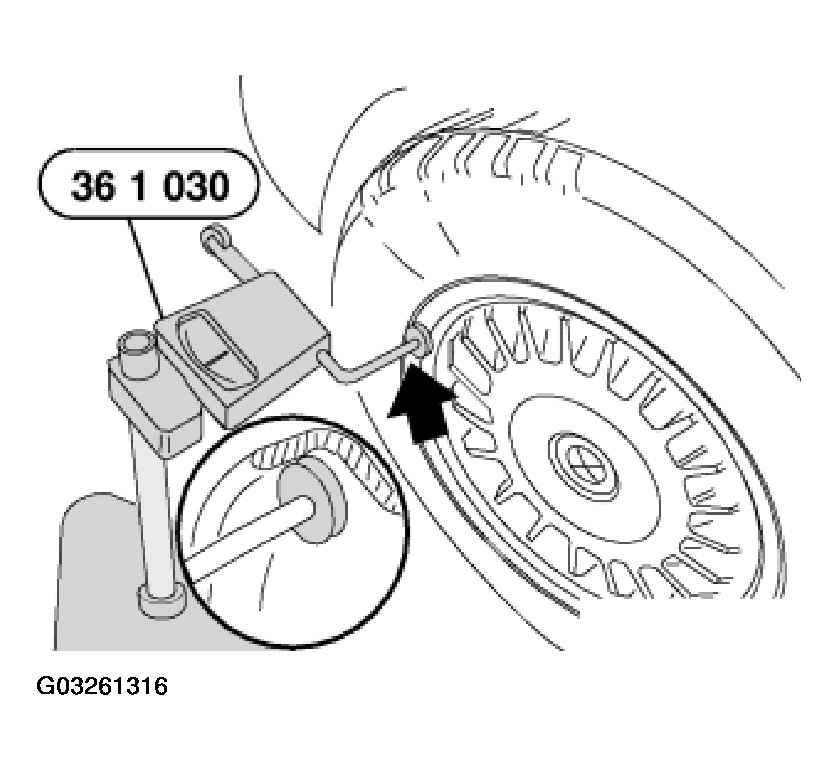

Fig 2: Checking Radial Runout Of Wheel With Special Tool 36 1 030

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check lateral runout of rim with special tool 36 1 030 (measuring fixture).

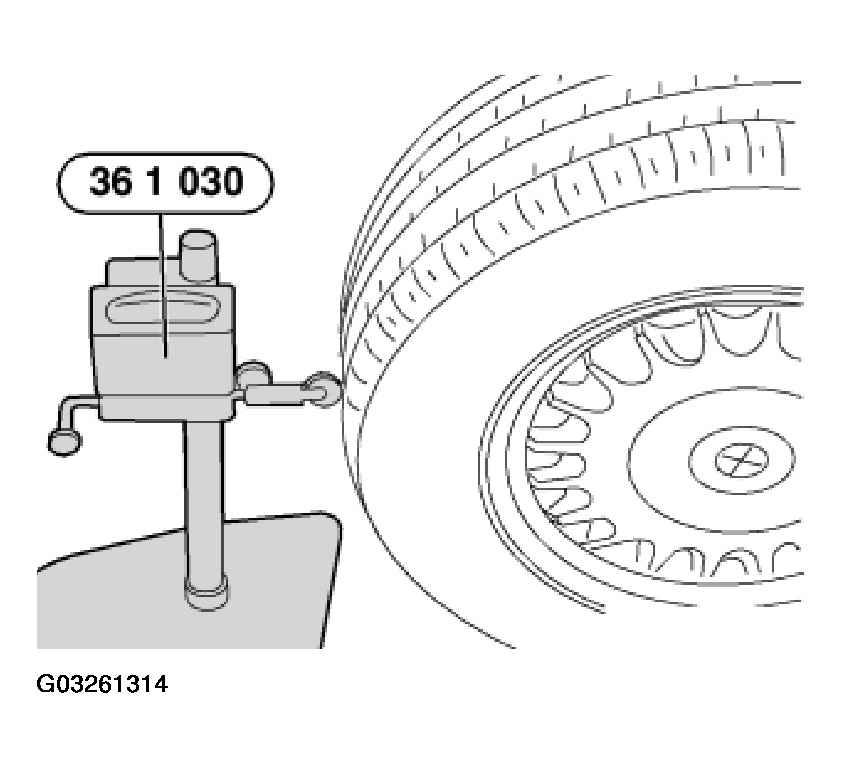

Fig 3: Checking Lateral Runout Of Rim With Special Tool 36 1 030

Courtesy of BMW OF NORTH AMERICA, INC.

Check radial runout of rim with special tool 36 1 030 (measuring fixture).

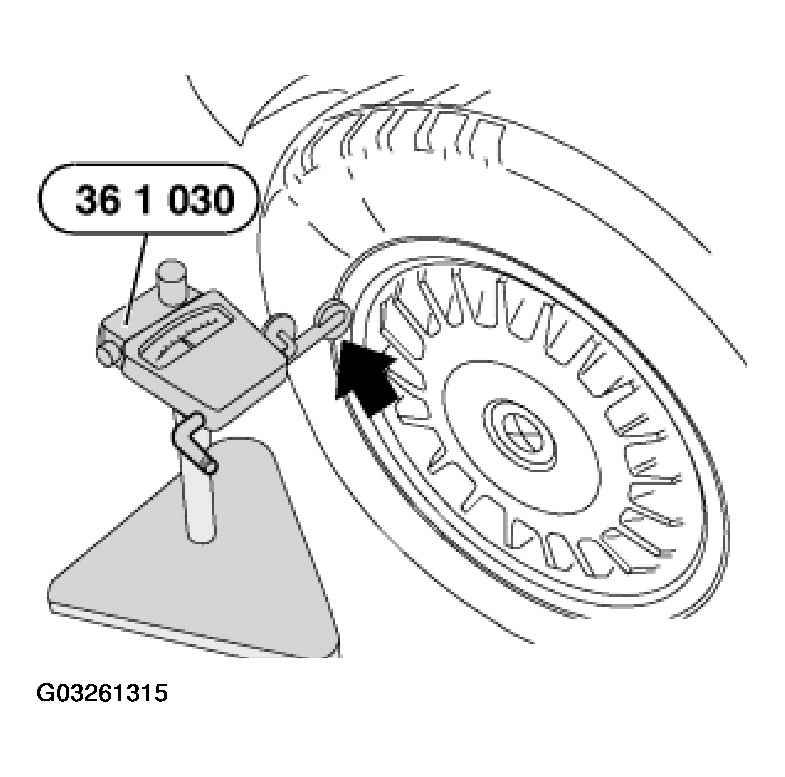

Fig 4: Checking Radial Runout Of Rim With Special Tool 36 1 030

Courtesy of BMW OF NORTH AMERICA, INC.
