67 31 510 Removing and installing/replacing drive unit for seat cushion tilt adjustment

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove driver's or front passenger seat. See 52 13 001 Removing and installing front seat, driver's side (normal/manual) , 52 13 002 Removing and installing the front seat on the passenger's side (normal/manual) , 52 14 001 Removing and installing left or right front seat, driver's side, (normal/electric) or 52 14 002 Removing and installing front seat (normal/electric) on the passenger's side from left or right .
Remove front seat cover . See 52 14 402 REPLACING SEAT COVER FOR DRIVER'S SEAT (NORMAL/ELECTRIC) or 52 14 403 REPLACING SEAT COVER FOR FRONT PASSENGER SEAT (NORMAL/ELECTRICAL) .

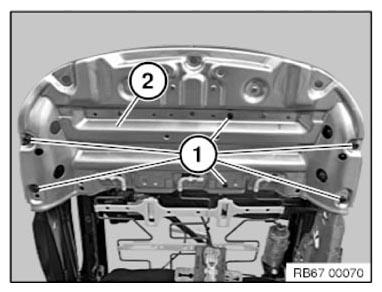

Release screws (1).

Remove cushion shell (2).

Fig 1: Cushion Shell And Screws

G10097656

Courtesy of BMW OF NORTH AMERICA, INC.

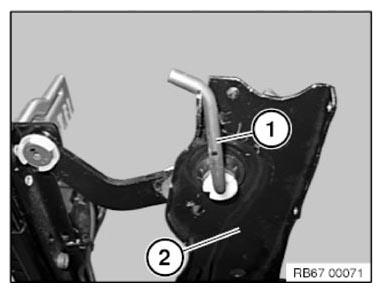

Detach spring (1) at seat frame (2).

Fig 2: Spring And Seat Frame

G10097657

Courtesy of BMW OF NORTH AMERICA, INC.

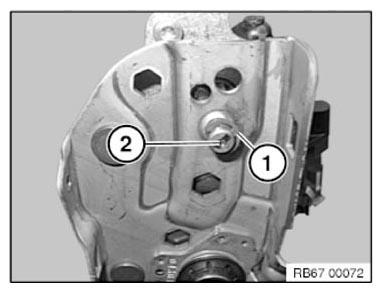

Remove fuse (1) from shaft (2).

Fig 3: Fuse And Shaft

G10097658

Courtesy of BMW OF NORTH AMERICA, INC.

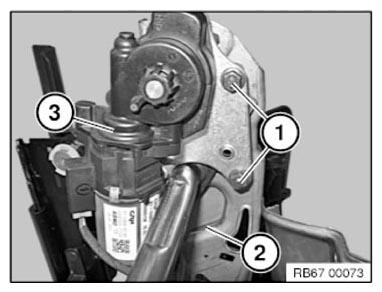

Unscrew nuts (1).

Pull drive with transmission (3) out of seat frame (2) and remove.

Fig 4: Transmission, Seat Frame And Nuts

G10097659

Courtesy of BMW OF NORTH AMERICA, INC.

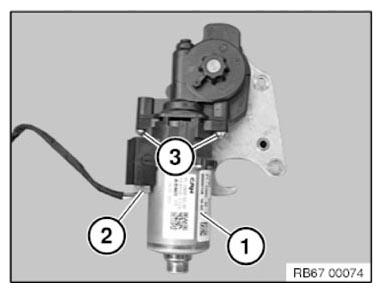

Unfasten plug connection (2) and disconnect.

Release screws (3).

Tightening torque: 67 31 1AZ .

Remove drive unit for seat cushion tilt adjustment (1).

Fig 5: Plug Connection, Screws And Seat Cushion Tilt Adjustment

G10097660

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry out a function check.

Replacement:

INITIALIZE seat height adjustment drive unit.
