34 21 131 Replace the retaining ring for the left (or right) brake pads
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove BRAKE SHOE EXPANDER
- Remove WHEEL HUB

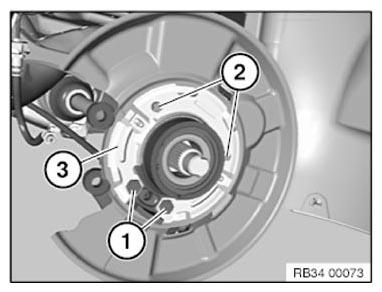

Release screws (2) and remove brake anchor plate (3).
Release screws (1).
Installation note:
Tightening torque: 34 21 3AZ .
