34 33 071 Replacing vacuum hose for brake booster (N47, N47S)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- READ AND COMPLY WITH GENERAL INFORMATION .
- Remove lower section of microfilter housing
IMPORTANT:
Before beginning work, fully press the brake pedal several times to reduce the vacuum pressure in the brake servo.

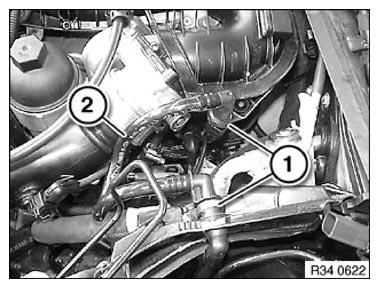

Unlock quick-release fasteners (1) and detach vacuum line (2).
